Resetting the ARN

The Reset button is set inside the ARN back panel and resides next to the Flash
card slot, as shown in Figure 3-3.
100-240~
1.2A
50-60Hz

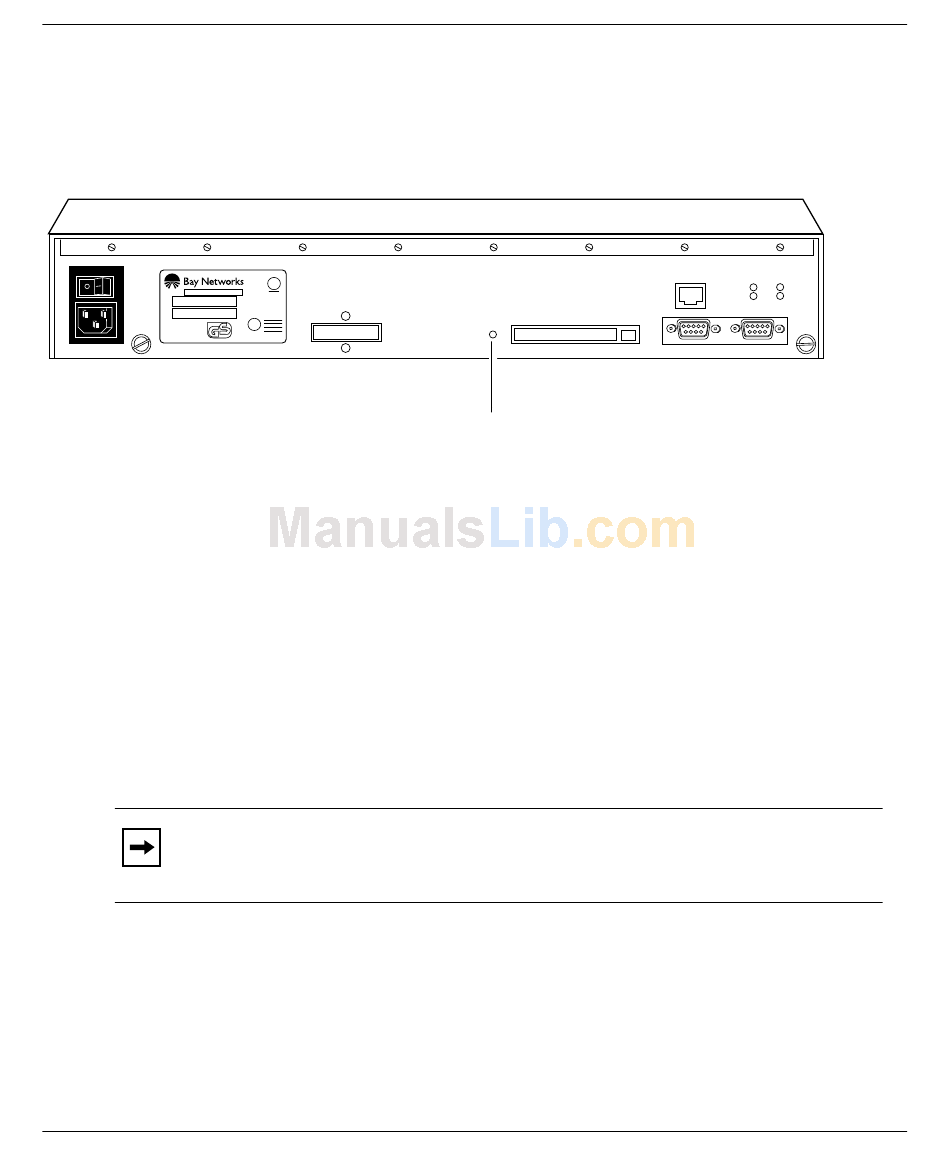

Figure 3-3. ARN Reset Button
To press the Reset button, insert a small pointed object (for example, a paper clip)
into the Reset button hole.
u can use the Reset button to reboot the ARN hardware without cycling power,
Yo
as follows:
•
•
Note: If you reset the ARN while it is running its diagnostic tests, the LEDs
remain in the state they were in when you pressed the Reset button. You must
cycle power on the ARN to reset the LEDs.
114200 Rev. A
U L
Redundant Power
U L
To warm-boot the ARN (no diagnostic tests run), press the Reset button for
less than 5 seconds.
To cold-boot the ARN (diagnostic tests run), press the Reset button for more
than 5 seconds.
Reset button
