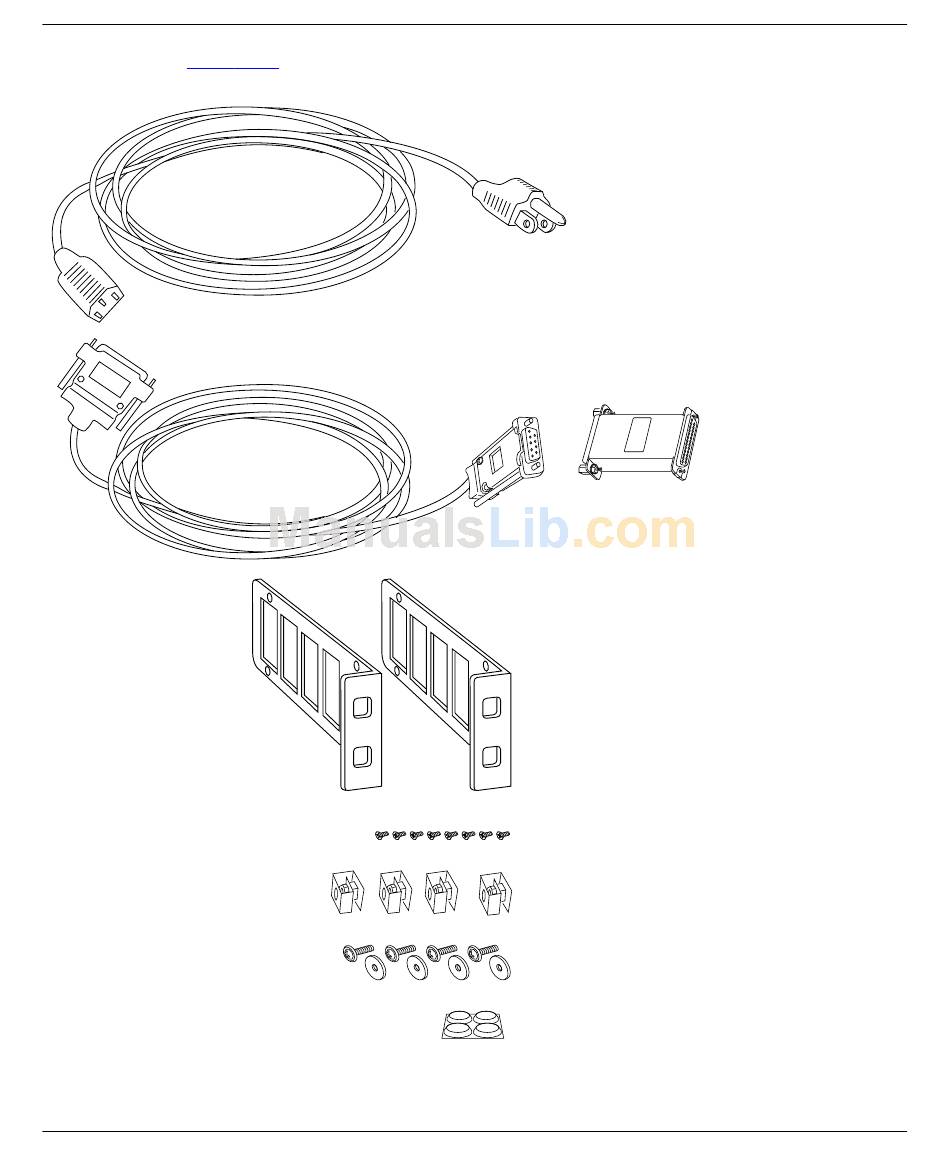

Figure 1-1
Power cable
Console/modem cable
(DB-9 receptacle
to DB-25 plug cable)
Figure 1-1.
Accessories in the ARN Shipping Container
114200 Rev. A
illustrates the ARN shipping accessories.
Installing the BayStack Advanced Remote Node
DB-25 receptacle
null modem adapter
Two flange brackets
Eight #6 flathead screws
Four cagenuts
Four #10 cagenut screws and washers
Four rubber feet
ARN0048A
1-3
