Installing and Operating BayStack ARN Routers

Connecting to a DSU/CSU Interface

You can connect a DSU/CSU cable to any ARN that contains a DSU/CSU adapter
module.
To connect to a DSU/CSU interface:
1.
1
2

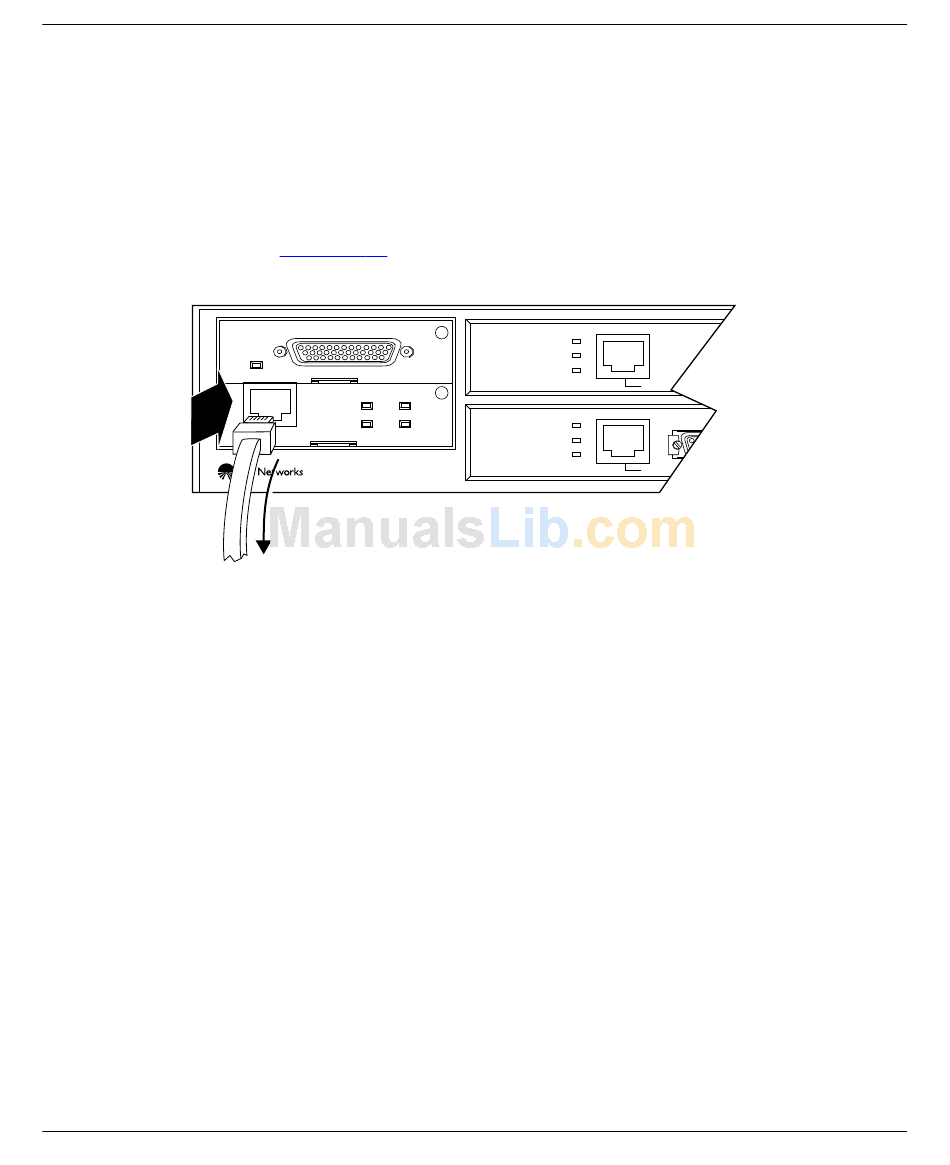

Figure 1-12.
2.
1-18
Insert the DSU/CSU cable connector into the DSU/CSU interface labeled
DDS (Figure 1-12).
COM
RLSD
DDS
TxD CD
56K/64K
RxD Test
DSU/CSU
To
digital line
wall jack
Connecting a DSU/CSU Cable
Connect the other end of the cable to a digital line (for example, a digital
line wall jack that connects to an office channel unit [OCU]).
Tx
Rx
Cl
Serial
Tx
Rx
Cl
10BaseT
Ethernet 2
10BaseT
Ethernet 1
ARN0065A
114200 Rev. A
