If the LEDs do not light in this sequence, your network administrator can refer to
Configuring Remote Access to help troubleshoot the problem.
Note: If the ARN does not contain an expansion module, an adapter module, a
redundant power supply, a data collection module, or a Flash card, the LEDs
associated with these components remain off.
If you need additional assistance, contact your local Bay Networks Technical
Response Center.

Powering On and Off the ARN

The ARN power switch is located on the back panel
ARN, press the power switch to the ON position (1). To power off the ARN, press
the power switch to the OFF position (0).
Note: To ensure a complete power cycle, we recommend that you wait at least
4 seconds between powering off the ARN and powering it back on.
100-240~
1.2A
50-60Hz

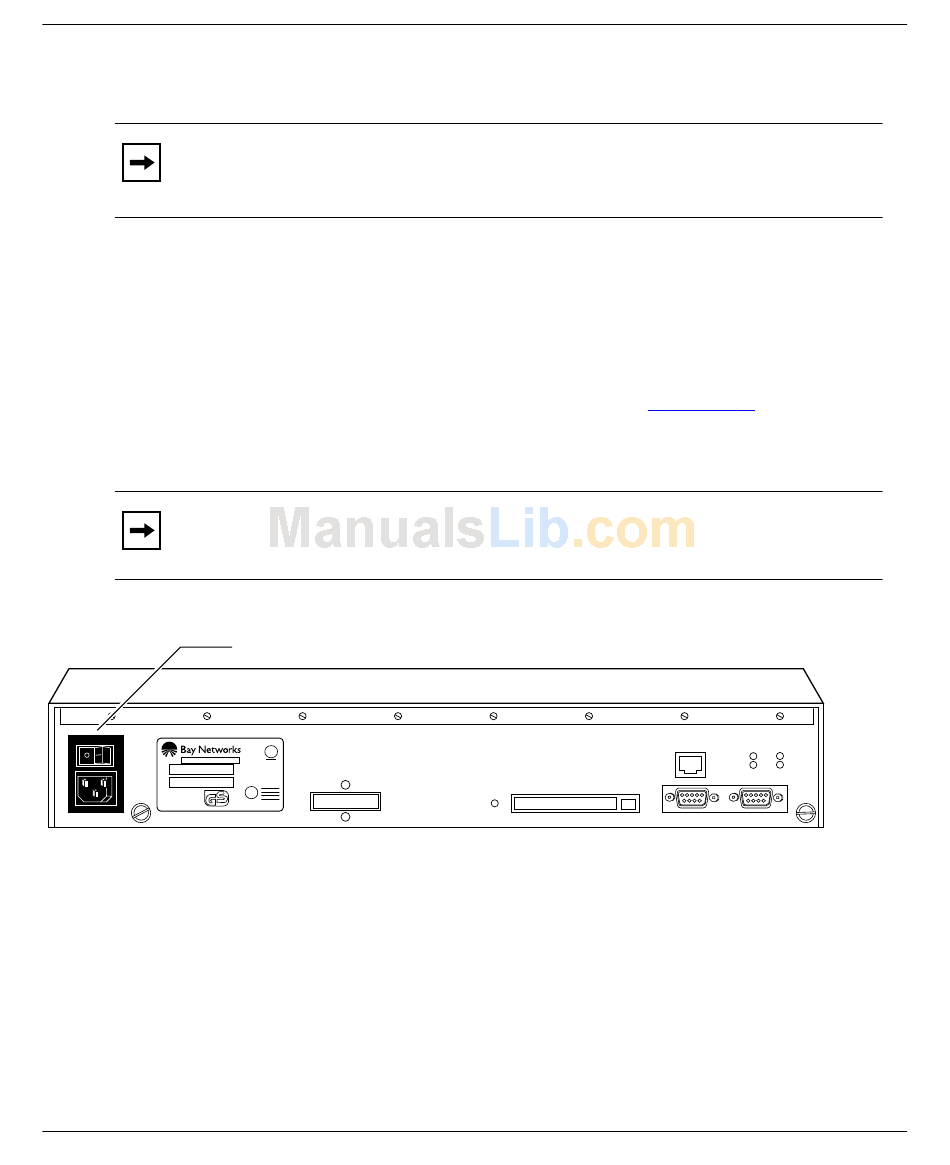

Figure 3-2. ARN Power Switch
