Understanding the ARN Module Locations

The ARN is designed to scale to your needs. In addition to either an Ethernet or
token ring base module, the ARN can contain an optional expansion module and
up to two adapter modules
U
D B1
1
ISDN BRI
DD B2
withNT1
COM
2
RLSD
Serial

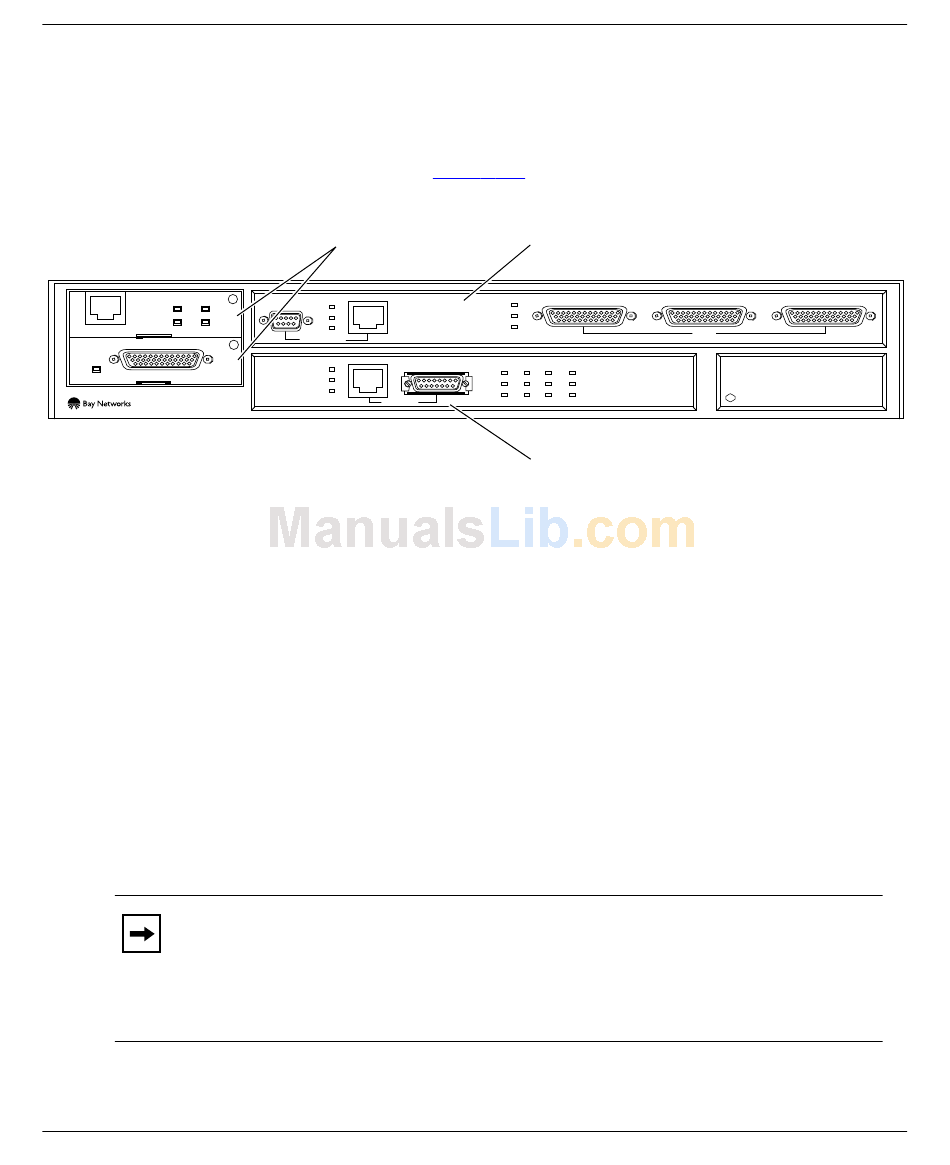

Figure 1-4. ARN Module Locations
The ARN is available in the following base module configurations:
•
•
The ARN supports the following expansion modules:
•
•
•
•
•
Note: The Ethernet base and expansion modules can also contain an optional
data collection module (DCM). The DCM gathers Ethernet statistics for a
remote monitoring (RMON) utility. Your network administrator can refer to
Configuring Remote Access for additional information about how to enable
and use the DCM.
