Connecting a Terminal Console

You need both pieces in the ARN console/modem cable kit (Order No. 110310) to
connect a terminal console:
•
•
Once you have the appropriate equipment, complete the following steps:
1.
Table 1-3.
Parameter
Baud Rate
Data Bits
Stop Bits
Parity
2.
3.
4.

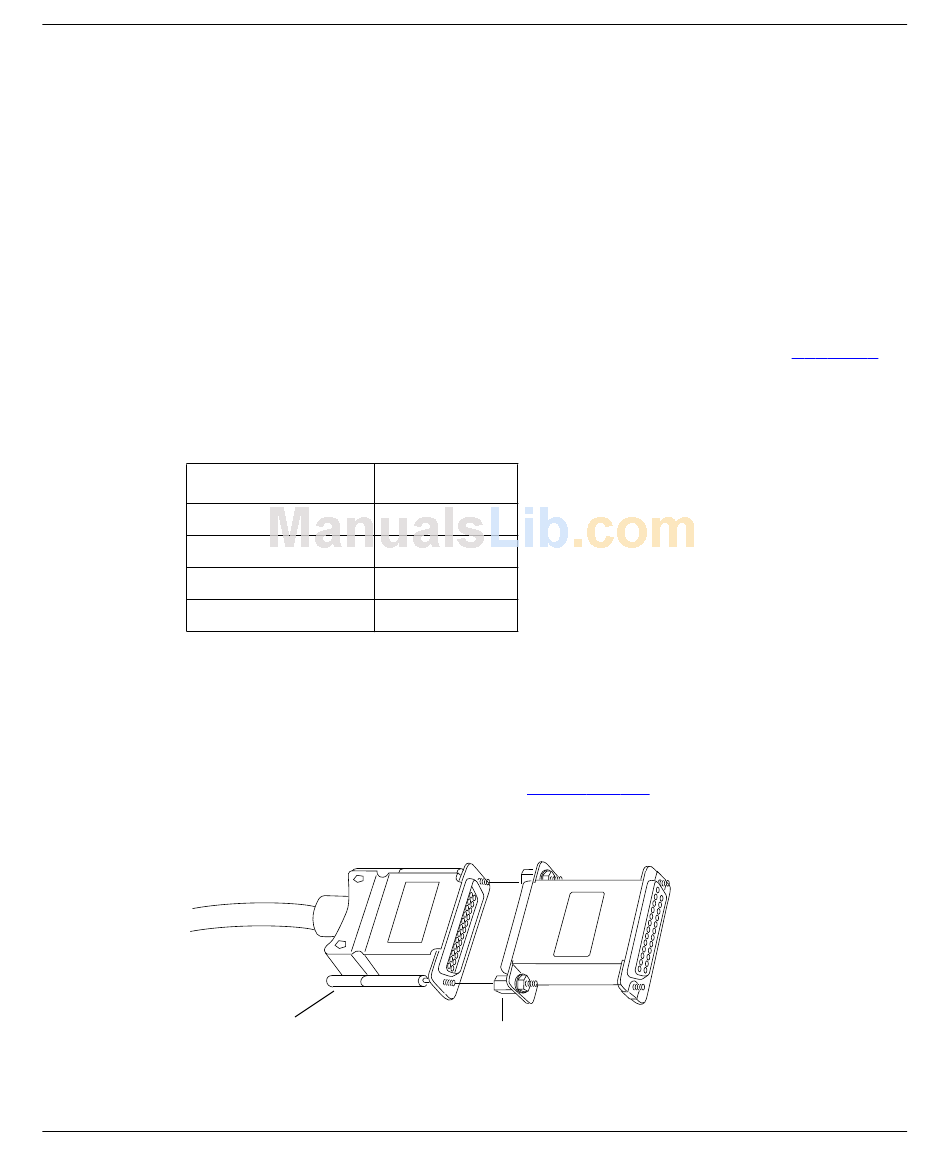

Figure 1-14.
114200 Rev. A
Order No. 110307 serial console/modem cable (with 9-pin receptacle to
25-pin plug connectors)
Order No. 110308 null modem crossover adapter (with two 25-pin receptacle
connectors)
Power on and configure the console, using the parameters in
Refer to the console user manual for instructions.
Console Parameters
Value
9600
8
1
None
Power off the console.
Attach the null modem crossover adapter to the 25-pin cable connector.
Insert the screw on the cable connector into the receptacle on the adapter
connector and tighten the screw
Console cable
Rotate to tighten screw
Attaching the Null Modem Adapter
Installing the BayStack Advanced Remote Node
(Figure 1-14).
Null modem adapter
Screw receptacle
AN0010A
Table 1-3.
1-21
