RJ-11 Interface (for V.34 Modem)
The ARN supports a V.34 modem connection using an optional V.34 modem
adapter module. The V.34 functionality allows you to connect directly to a phone
line, as opposed to connecting over an external modem. This solution reduces
equipment costs and simplifies connection to a wide area network.
Table C-11
Table C-11.
Pin Assignment

Local Console Connections

The ARN back panel contains one console service interface, labeled Console; its
DB-9 plug connector provides an RS-232-D serial connection. You use this local
console port to connect the ARN to any VT100 compatible console device for
direct console access.
The BayStack ARN shipping package includes the Order No.110310
console/modem kit for connecting devices to the Console port.
•
•
114200 Rev. A
lists the V.34 interface pin assignments.

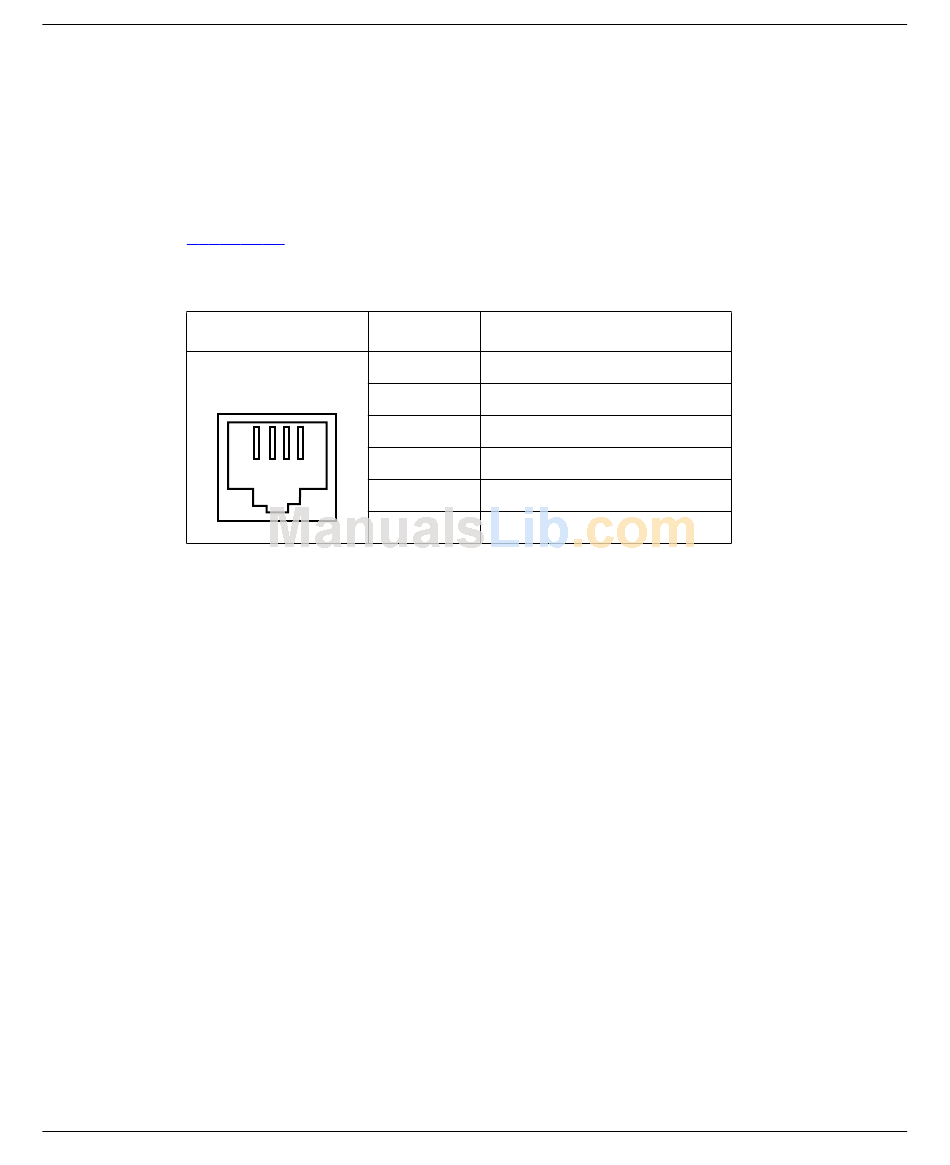

V.34 Interface Pin Assignments
Pin No.
1
2
1 2 3 4 5 6
3
4
5
6
To connect a terminal to the Console port, use the complete console/modem
kit (the Order No.110307 cable with the Order No.110308 null modem
adapter).
To connect an IBM compatible PC to the Console port, use the complete
console/modem kit (Order No.110308 cable and Order No.110307 null
modem adapter) plus a standard AT serial cable with one DB-25 plug
connector, supplied with the PC.
Signal
Not Used
No connection
TIP
RING
No connection
Not Used
