Bay Networks 5782 User Manual

Atm virtual network router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

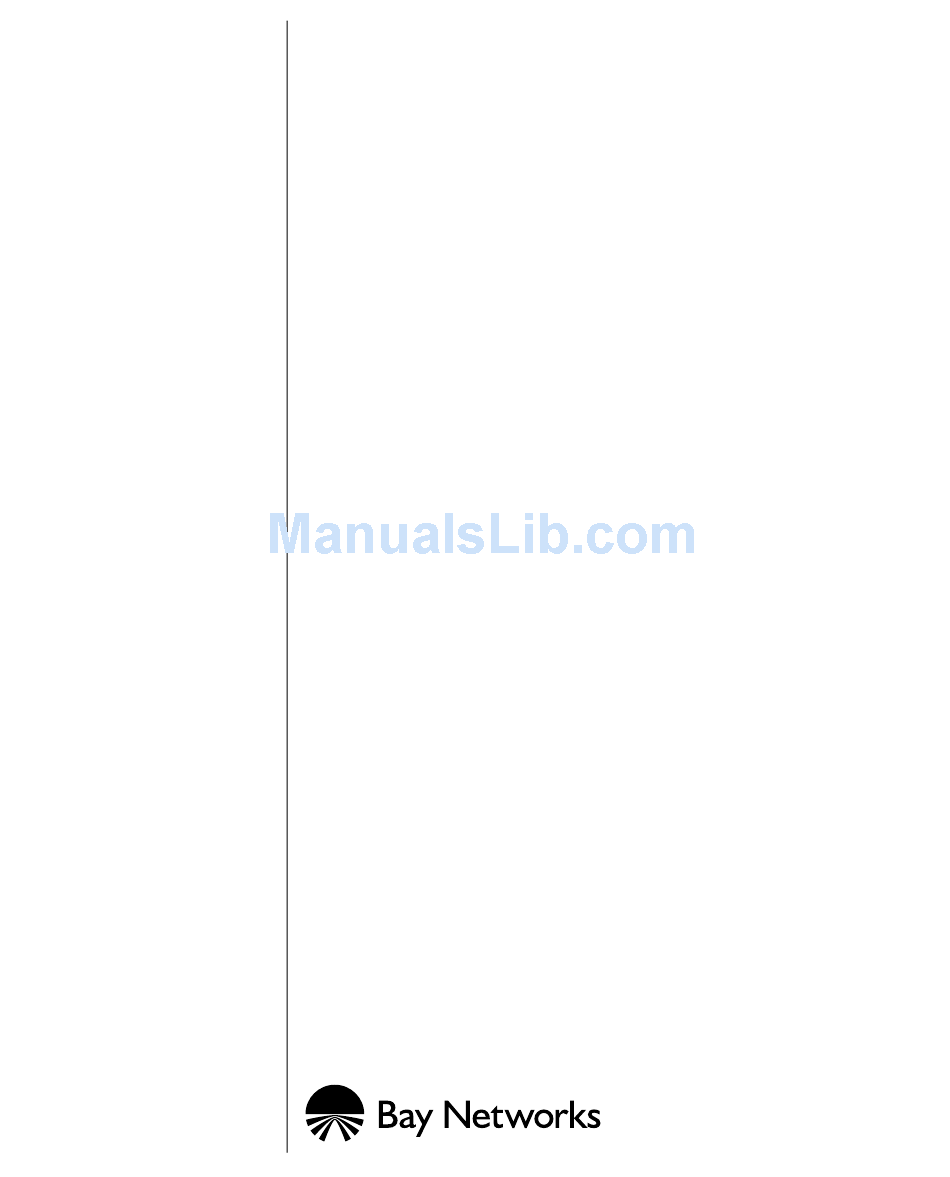

Using the Model 5782
ATM Virtual Network
Router
Part No. 119557-A Rev. 00
February 1998

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5782 and is the answer not in the manual?

Questions and answers

Related Manuals for Bay Networks 5782

Summary of Contents for Bay Networks 5782

  • Page 1 Using the Model 5782 ATM Virtual Network Router Part No. 119557-A Rev. 00 February 1998...

  • Page 2: Statement Of Conditions

    4401 Great America Parkway Santa Clara, CA 95054 Copyright © 1998 Bay Networks, Inc. All rights reserved. Printed in the USA. February 1998. The information in this document is subject to change without notice. The statements, configurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty.

  • Page 3: Japan/Nippon Requirements Only

    USA Requirements Only Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Canada Requirements Only Canadian Department of Communications Radio Interference Regulations This digital apparatus (<product or system name>) does not exceed the Class A limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. Règlement sur le brouillage radioélectrique du ministère des Communications Cet appareil numérique (<product or system name>) respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des...

  • Page 5: Fcc Part 68 Compliance Statement

    Avertissement: L'utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d'inspection des installations électriques, ou à un électricien, selon le cas. Avis: Veuillez prendre note que pour tout appareillage supportant des lignes de type “loopstart,” l'indice d'équivalence de la sonnerie (IES) assigné...
  • Page 6 Note: ISDN S/T cannot be directly connected to the network. • When you request Primary Rate ISDN Service, you must provide the telephone company with The Facility Interface Code: 04DU9-1SN (1.544 MB, ESF framing format with B8ZF coding) The Service Order Code(s) (SOC): 6.0F The required Universal Service Order Code (USOC) jack: RJ48C Your telephone company may make changes to its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment.
  • Page 7 Licensee may grant permission to its consultants, subcontractors, and agents to use the Software at Licensee’s facility, provided they have agreed to use the Software only in accordance with the terms of this license. 3. Limited warranty. Bay Networks warrants each item of Software, as delivered by Bay Networks and properly installed and operated on Bay Networks hardware or other equipment it is originally licensed for, to function substantially as described in its accompanying user manual during its warranty period, which begins on the date Software is first shipped to Licensee.
  • Page 8 Licensee will immediately destroy or return to Bay Networks the Software, user manuals, and all copies. Bay Networks is not liable to Licensee for damages in any form solely by reason of the termination of this license. 8. Export and Re-export. Licensee agrees not to export, directly or indirectly, the Software or related technical data or information without first obtaining any required export licenses or other governmental approvals.

  • Page 9: Table Of Contents

    Bay Networks Customer Service ...xx How to Get Help ...xx Bay Networks Educational Services ...xxi Chapter 1 Overview of the Model 5782 ATM Virtual Network Router About the Model 5782 VNR ... 1-2 Configuring the VNR ... 1-5 SpeedView Application ... 1-5 Command-Line Interface ...
  • Page 10 Chapter 3 Starting the Model 5782 VNR Configuring the MCP ... 3-2 Accessing the Model 5782 VNR over ATM ... 3-2 Connecting a Terminal to the Model 5000BH Chassis Service Port ... 3-3 Starting the Technician Interface ... 3-4 Preparing to Run the Quick-Start Installation Script ... 3-6 Reviewing the Installation Files ...
  • Page 11 Running the Quick-Start Installation Script ... 3-10 Quick-Start Troubleshooting ... 3-13 Assigning a Password ... 3-13 Exiting the Technician Interface ... 3-14 Accessing the Model 5782 VNR over the PPX ... 3-14 Appendix A Technical Specifications Physical Specifications ...A-2 Memory ...A-2 Backplane Interface Data Rates ...A-2...
  • Page 13 Reset Button on the Model 5782 VNR ... 1-16 Figure 2-1. Model 5000BH Chassis Backplanes ... 2-3 Figure 2-2. Inserting the Flash Memory Card into the Model 5782 VNR ... 2-5 Figure 2-3. Removing a Filler Panel ... 2-6 Figure 2-4.
  • Page 15 Table 3-2. Terminal Console Parameters ... 3-3 Table 3-3. Quick-Start Installation Files ... 3-8 Table 3-4. Technician Interface Quick-Start Commands ... 3-10 Table B-1. LEDs on the Model 5782 VNR ...B-2 Table C-1. Quick-Start ATM Worksheet ...C-4 119557-A Rev. 00 Tables...

  • Page 17: About This Guide

    If you are responsible for installing and configuring the Bay Networks Model 5782 ATM Virtual Network Router (VNR) into a System 5000BH chassis, you must read this guide. If you want to Understand more about the Model 5782 VNR and its features.

  • Page 18: Acronyms

    Using the Model 5782 ATM Virtual Network Router brackets ([ ]) ellipsis points italic text quotation marks (“ ”) screen text separator ( > ) vertical line ( Acronyms ASIC ELAN ILMI xviii Example: ATM DXI > Interfaces > PVCs identifies the PVCs button in the window that appears when you select the Interfaces option from the ATM DXI menu.

  • Page 19: Bay Networks Technical Publications

    119557-A Rev. 00 LAN emulation Network Layer Protocol Identifier nonvolatile file system protocol data unit permanent virtual circuit Request for Comments service access point segmentation and reassembly Subnetwork Access Protocol switched virtual circuit virtual channel/virtual circuit virtual network router About This Guide...

  • Page 20: Bay Networks Customer Service

    Using the Model 5782 ATM Virtual Network Router Bay Networks Customer Service You can purchase a support contract from your Bay Networks distributor or authorized reseller, or directly from Bay Networks Services. For information about, or to purchase a Bay Networks service contract, either call your local Bay...

  • Page 21: Bay Networks Educational Services

    Bay Networks Educational Services Through Bay Networks Educational Services, you can attend classes and purchase CDs, videos, and computer-based training programs about Bay Networks products. Training programs can take place at your site or at a Bay Networks location. For more information about training programs, call one of the following numbers: Region United States and Canada...

  • Page 23: Chapter 1 Overview Of The Model 5782 Atm Virtual Network Router

    This chapter introduces the Model 5782 ATM Virtual Network Router (VNR) and includes the following topics: Topic About the Model 5782 VNR Configuring the VNR Model 5782 VNR Features About the Model 5000BH Backplane Hardware Description 119557-A Rev. 00 Overview of the Model 5782...

  • Page 24: About The Model 5782 Vnr

    Using the Model 5782 ATM Virtual Network Router About the Model 5782 VNR The Model 5782 VNR resides in a Bay Networks Model 5000BH chassis. The basic Model 5000BH ATM environment consists of the following devices and software: • Model 5000BH backplane in a Model 5000BH chassis •...
  • Page 25 ELAN 3 Campus and WAN Figure 1-1. Model 5782 VNR in an ATM Network 119557-A Rev. 00 Overview of the Model 5782 ATM Virtual Network Router Centillion 100 switch Centillion 100 switch Centillion 100 switch OC-3 Multimode (155 Mb/s) Campus...

  • Page 26: Figure 1-2. Model 5782 Vnr In An Atm Network (Logical View)

    Using the Model 5782 ATM Virtual Network Router Figure 1-2 provides a logical view of how each Centillion 100 is associated with a separate ELAN and how the Model 5782 VNR controls access to these ELANs. Workstation A Centillion 100 switch...

  • Page 27: Configuring The Vnr

    Configuring the VNR To configure a Model 5782 VNR you can use the following network management tools: • SpeedView • Command-line interface • Site Manager SpeedView Application SpeedView is an application that runs on Windows 3.x, Windows 95, and Windows NT access to the ATM backplane.

  • Page 28: Site Manager Application

    Using the Model 5782 ATM Virtual Network Router Site Manager Application After configuring an initial interface on the Model 5782 VNR, you can access the device using Site Manager to enhance the configuration. For information about how to use Site Manager, see Configuring and Managing Routers with Site Manager.

  • Page 29: Supported Protocols

    Supported Protocols Depending on the data encapsulation type and virtual connection type (PVC or SVC) you choose for the service record, the Model 5782 VNR supports various protocols. Table 1-1 lists all supported protocols for standard PVCs and SVCs using Logical Link Control/Subnetwork Access Protocol (LLC/SNAP), NLPID, NULL, LANE 802.3, or LANE 802.5 data encapsulation.

  • Page 30: Lan Emulation

    ATM end stations and on traditional LAN end stations. ATM Q.2931 Signaling The Model 5782 VNR supports ATM Forum UNI Version 3.0 and Version 3.1 signaling protocol for SVCs, known as Q.2931. ATM signaling allows the router to dynamically establish, maintain, and clear a switched virtual connection at the user-to-network interface (UNI).

  • Page 31: Data Encapsulation

    You can choose from four data encapsulation types: • LANE 802.3 • LANE 802.5 • LLC/SNAP • NLPID • NULL 119557-A Rev. 00 Overview of the Model 5782 ATM Virtual Network Router Protocol Data encapsulation 6786 SVC/PVC Signaling Protocol Stack...

  • Page 32: Simulated Multicast Packet Support

    ARP and Inverse ARP Support The Model 5782 VNR supports the Address Resolution Protocol (ARP), enabling the router to dynamically resolve IP network layer protocol-to-VPI/VCI address mappings. ATM learns the PVC address by detecting the PVC that delivered the ARP response.

  • Page 33: About The Model 5000Bh Backplane

    Model 5000BH chassis backplane can immediately forward both LAN and ATM traffic. Model 5782 VNR modules attach to one of two Centillion ATM buses on a Model 5000BH backplane. Switching in a Model 5000BH chassis spans 12 of 14 slots.

  • Page 34: Ppx Router Bus

    The Parallel Packet Express (PPX) is a redundant bus with four independent parallel paths that perform at 1 Gb/s between router interfaces. Model 5782 VNR modules attach to a Model 5000BH chassis with a PPX interconnection. The PPX backplane interconnection performs the packet- to-packet transfer from one router installed in the chassis to another router installed in the same chassis.

  • Page 35: Common Management Bus

    Model 5000BH chassis service port. Technician Interface scripts let you display information about various protocols and network services and enable or disable protocols, circuits, lines, and services. 119557-A Rev. 00 Overview of the Model 5782 ATM Virtual Network Router VNR.” Chapter 3, “Starting the 1-13...

  • Page 36: Hardware Description

    The assembly includes inserter/extractor levers and captive retaining screws at the top and bottom of the module front panel. Each Model 5782 VNR occupies one slot in the Model 5000BH chassis. The router module connects directly to the Model 5000BH ATM backplane.

  • Page 37: Leds

    Figure 1-6. Flash Memory Card The Model 5782 VNR has a slot on the front of the module for a PCMCIA flash memory card. The flash memory card provides storage for the router nonvolatile file system (NVFS) including software to boot the router independently of the other modules in the Model 5000BH chassis.

  • Page 38: Virtual Buffer Memory

    Segmentation and reassembly operate at the ATM adaptation layer (AAL) by mapping user information into cell payloads (48 bytes of a 53-byte cell). When the Model 5782 VNR is installed in the Model 5000BH chassis, the VNR handles segmentation and reassembly of incoming packets to ATM cells and outgoing ATM cells to packets.

  • Page 39: Chapter 2 Installing The Model 5782 Vnr

    This chapter describes how to install the Model 5782 VNR in the Model 5000BH chassis and includes the following information and procedures: Topic Arranging Modules in a Model 5000BH Chassis Preparing for Installation Installing the VNR Module Installing Airflow Modules...

  • Page 40: Arranging Modules In A Model 5000Bh Chassis

    Model 5000BH chassis: slots 2 through 7 and 8 through 13. When you install a Model 5782 VNR module in one of these slot ranges, you must also install an MCP switch module (such as the Model 5724M or Model 5728M ATMSpeed MCP module) in the same range of slots.
  • Page 41 ATM bus (2-7, 8-13) FDDI or 100 Mb Ethernet backplane (1-14) Power Common management bus Ethernet (1-14) Token ring (1-14 or 1-7, 8-14) Slot 14 Model 5000BH Chassis Backplanes Installing the Model 5782 VNR Model 5000BH backplane Standard Model 5000 backplane 108EC...

  • Page 42: Preparing For Installation

    Installing the Flash Memory Card The Model 5782 VNR uses a flash memory card to provide storage for the router nonvolatile file system (NVFS). When you remove a formatted memory card, the NVFS removes access to the card. When you insert and format a card (or insert a formatted card), the NVFS automatically provides access to the card.

  • Page 43: Figure 2-2. Inserting The Flash Memory Card Into The Model 5782 Vnr

    Site Manager or the Technician Interface Using Technician Interface Software for instructions.) To install the flash memory card: Place the Model 5782 VNR on a grounded antistatic mat with the components facing up. Position the card with the label facing up arrow pointing toward the card receptacle.

  • Page 44: Installing The Vnr Module

    Using the Model 5782 ATM Virtual Network Router Installing the VNR Module To install and secure the Model 5782 VNR in a Model 5000BH chassis: Remove the filler panel from the chassis slot where you intend to install the module Note: Install airflow modules in empty chassis slots to maintain the cooling airflow within the chassis.

  • Page 45: Figure 2-4. Inserter/Extractor Levers In The Vertical Position

    Figure 2-4. Align the top and bottom edges of the Model 5782 VNR with the metal guides at the top and bottom of the chassis slot. Slide the router module into the chassis until you feel it engage the backplane.

  • Page 46: Figure 2-5. Seating The Module

    Using the Model 5782 ATM Virtual Network Router Figure 2-5. Using the flat-tip screwdriver, tighten the captive retaining screw at either end of the VNR module front panel. 50 00 M od el Seating the Module 4690.2 119557-A Rev. 00...

  • Page 47: Installing Airflow Modules

    Figure 2-6. Slide the airflow module into the chassis. Replace the filler panel over the slot (Figure 2-7). 119557-A Rev. 00 Figure 2-3). 50 00 M od el Airflow Module Orientation Installing the Model 5782 VNR (Figure 2-6) 7382...

  • Page 48: Verifying The Installation

    Verifying the Installation After you install the Model 5782 VNR, all LEDs on the front panel light amber, then light green, then turn off. If the VNR is installed and functioning properly, the LEDs light as follows during the diagnostic and boot sequence: •...

  • Page 49: Removing The Vnr

    Model 5000BH chassis, see Configuring System 5000 Cell-switched Networks. If the conditions described do not exist, but you suspect that the Model 5782 VNR is failing, run the diagnostics available through the Technician Interface. For information about how to initialize and use the diagnostics, see Using Technician Interface Software.

  • Page 50: Installing The Replacement Vnr

    Using the Model 5782 ATM Virtual Network Router Figure 2-8. Place the module on an antistatic mat. Note: If you remove a module from the chassis permanently or for more than a few minutes, install an airflow module and a filler panel in the empty slot.

  • Page 51: Removing The Flash Memory Card

    Site Manager or the Technician Interface Using Technician Interface Software for instructions.) 119557-A Rev. 00 2-9) and pull the card out of the receptacle. 6502 Removing the Flash Memory Card Installing the Model 5782 VNR command. (See format 2-13...

  • Page 52: Protecting The Files On The Flash Memory Card

    Using the Model 5782 ATM Virtual Network Router Protecting the Files on the Flash Memory Card Bay Networks ships each flash memory card with its read/write protect switch in the unprotected position After successfully loading a configuration file and saving your configuration, you may want to write-protect the memory card for backup purposes.

  • Page 53: Upgrading Memory

    Upgrading Memory You can order a Model 5782 VNR with 32 MB or 64 MB of dynamic random access memory (DRAM) in the form of dual inline memory modules (DIMMs) that reside on the printed circuit board. You can upgrade DRAM to a maximum of 64 MB to accommodate future network requirements.

  • Page 55: Starting The Model 5782 Vnr

    After you install the Model 5782 VNR in a Model 5000BH chassis, you configure the VNR to access the network. This chapter describes the following procedures required to start the configuration process: Topic Configuring the MCP Accessing the Model 5782 VNR over ATM Accessing the Model 5782 VNR over the PPX 119557-A Rev.

  • Page 56: Configuring The Mcp

    For more information about how to use the Technician Interface, see Using Technician Interface Software. For information about how to configure the Model 5782 VNR for various router protocols and how to manage the router in an ATM network using Site Manager, see Configuring ATM Services.

  • Page 57: Connecting A Terminal To The Model 5000Bh Chassis Service Port

    Service Port Pin Assignments To Service Port DB-25 Pins Function Receive data Transmit data Signal ground Terminal Console Parameters Value 9600 None None Standard Starting the Model 5782 VNR DB-9 Pins Function Transmit data Receive data Signal ground Table 3-2.

  • Page 58: Starting The Technician Interface

    Starting the Technician Interface After connecting a terminal or PC to the service port, initialize the router module by connecting it to the CMB. If you have more than one Model 5782 VNR installed in the chassis, you need only initialize one.

  • Page 59: Figure 3-2. Service Port Main Menu

    The following prompt appears: Enter slot # (1 - 14) Enter the slot number of the Model 5782 VNR (or the router with the flash memory card installed if installing multiple routing modules). When you enter the slot number to connect to the router, the following prompt...

  • Page 60: Preparing To Run The Quick-Start Installation Script

    Preparing to Run the Quick-Start Installation Script You use the Quick-Start installation script (install.bat) to establish an initial IP network interface between the Model 5782 VNR and a Site Manager workstation from which you can configure and manage the VNR.

  • Page 61: Memory Card

    168106 bytes - Available free space 168106 bytes - Contiguous free space Figure 3-4. Note the available free space on the router volume. Make sure you have enough space on the volume to hold any new files you write or copy. 119557-A Rev. 00...

  • Page 62: Booting With The Ti_5000.Cfg File

    Networks Technical Solutions Center. Booting with the ti_5000.cfg File To prepare the Model 5782 VNR for initial configuration, you first boot it with the ti_5000.cfg file. The ti_5000.cfg file is an initial configuration file containing only the minimal information needed to boot the Model 5782 VNR. You then run the intallation script to add configuration information about your first IP interface.

  • Page 63: Completing The Network Information Worksheet

    Worksheet”). You will use your completed worksheet to respond to the script prompts. For examples of how to use the scripts, see install.bat Scripts.” 119557-A Rev. 00 Starting the Model 5782 VNR for instructions. Appendix C, “Network Information Appendix D, “Sample...

  • Page 64: Running The Quick-Start Installation Script

    Using the Model 5782 ATM Virtual Network Router Running the Quick-Start Installation Script After booting the router with the ti_5000.cfg file and establishing a new Technician Interface session, you are ready to run the Quick-Start installation script (install.bat). The router module should already be connected to the appropriate Model 5000 chassis slot (see the procedure in Interface).

  • Page 65: Figure 3-5. Beginning Of The Quick-Start Installation

    As you perform the procedure, refer to the Quick-Start Guide for additional helpful information and examples. When you are finished with this procedure, the router will be able to communicate with the network management station over the IP network. are then ready to install the network management software, as described in in the Quick-Start Guide.

  • Page 66: Figure 3-6. Summary Information For A Quick-Start Installation

    HTTP Server: NOTE: The Connector value in the above Configuration Summary is the Connector number of the 5782 Module backplane ATM port. Note, however, that within the event log and the MIB browsing utilities such as Site Manager's Quick Get and the Technician Interface's debug scripts, connectors are numbered by a combination of their Connector number and Module number.

  • Page 67: Quick-Start Troubleshooting

    The Technician Interface prompt appears. You do not have to reboot the router after successfully completing the Quick-Start procedure. Note: You boot with the ti_5000.cfg file and run install.bat once to configure the initial interface only. To configure other interfaces, use Site Manager or other router management software to create new configurations.

  • Page 68: Exiting The Technician Interface

    Technician Interface session, choose File; then choose Exit. Accessing the Model 5782 VNR over the PPX To access the Model 5782 VNR over the PPX backplane, you must already have another router installed and configured in the Model 5000BH chassis. You can...

  • Page 69: Backplane Interface Data Rates

    This appendix provides technical specifications for the Model 5782 VNR module. It contains the following sections: Topic Physical Specifications Memory Backplane Interface Data Rates Electrical Specifications Electromagnetic Emissions Environmental Specifications Safety Agency Approvals 119557-A Rev. 00 Appendix A Technical Specifications...

  • Page 70: Physical Specifications

    Using the Model 5782 ATM Virtual Network Router Physical Specifications The dimensions and weight of the Model 5782 VNR are as follows: • Height: 18.875 in. (47.94 cm) • Width: 1.188 in. (3.01 cm) • Depth: 11.625 in. (29.52 cm) •...

  • Page 71: Electromagnetic Emissions

    EN 55022 (CISPR22:1985), Class A • VFG 243 Environmental Specifications The environmental requirements for the Model 5782 VNR are as follows: • Operating temperature: 41 to 104 F (5 to 40 C) • Storage temperature: -13 to 158 F (-25 to 70 C) •...

  • Page 73: Appendix B Model 5782 Vnr Leds

    The LED display for the Model 5782 VNR consists of a single LED called the annunciator and a matrix of LEDs that indicate specific operating conditions of the module Annunciator Figure B-1. 119557-A Rev. 00 Model 5782 VNR LEDs (Figure B-1).
  • Page 74 Green The master control processor (MCP) recognizes the Model 5782 VNR in the backplane. Amber The MCP does not recognize the Model 5782 VNR in the backplane. Green A PPX backplane is installed in the Model 5000BH chassis and is operational.

  • Page 75: Network Information Worksheet

    You use the Quick-Start installation script (install.bat) to establish an initial IP network interface between the Model 5782 VNR and a Site Manager workstation. You can then use Site Manager to refine your configuration. Use the Quick-Start installation script to add ATM to the router by: •...

  • Page 76: Figure C-1. Network Example For The Quick-Start Atm Worksheet

    Model 5000BH chassis. Model 5782 VNR connects to an ATM network using an MCP module. You configure a service record type using the script and then run IP over the connection. IP address = 192.168.125.34 Subnet mask = 255.255.255.0...

  • Page 77: Completing The Quick-Start Atm Worksheet

    Completing the Quick-Start ATM Worksheet The Quick-Start ATM Worksheet circuit, and service record information. The worksheet includes the information that the Quick-Start install.bat script requests, an example of the information you can supply, and a space to enter this information. Use only the portions of the worksheet that apply to your network environment.
  • Page 78 VPI bits. This bit range allows for path identifiers from 0 through 255. For VCI, the valid range of a Model 5782 VNR installed in a 5000BH chassis is from 130 to 2047. The VCI (virtual channel identifier) number of the initial PVC identifies the virtual channel of the PVC.
  • Page 79 2. UNI3.1 Do you want Auto Generation of the ATM address? (y/n) [y]: If you choose Auto Generation, router software will use a combination of the MAC address and the network prefix obtained from the server to generate a unique ATM address.
  • Page 80 Using the Model 5782 ATM Virtual Network Router Table C-1. Quick-Start ATM Worksheet Requested Information Logical IP Service Record Type Signaling Version [1]: 1. UNI3.0 2. UNI3.1 Do you want Auto Generation of the ATM address? (y/n) [y]: If you choose Auto Generation, router software will use a...

  • Page 81: Sample Install.bat Scripts

    Sample install.bat Scripts This appendix contains sample output from three executions of the install.bat script for the Model 5782 VNR. The first example shows an ATM PVC setup. The second example shows a LAN emulation setup, and the third example shows a setup for Classical IP.

  • Page 82: Atm Pvc Setup Example

    Using the Model 5782 ATM Virtual Network Router ATM PVC Setup Example run install.bat More Mode: OFF Lines per screen: 24 ------------------------------------------------------------------------------- #### #### # ##### #### # ### # # # # #### ### ------------------------------------------------------------------------------- This part of the Quick-Start procedure configures the initial IP network interface on the router.
  • Page 83 Enter the slot number [8]: 10 Enter the module number [3]: 3 ------------------------------------------------------------------------------- 119557-A Rev. 00 Sample install.bat Scripts For Example: ------------ DENM Ethernet 10bT1 192.32.10.189 255.255.255.0 192.32.10.200 Processor Module ---------------- 5580 5580 5580 5580 5580 5580 5782 ATM Router 5380 5380 5380...
  • Page 84 For VCI, please note the following valid ranges: if it is ARE installed in BLN/BCN, if it is 5780 ATM Router in 5000 AH, if it is 5782 ATM Router in 5000 BH, ---------------------------------------------------- Enter VCI number: 130 Recommended Circuit Name: ATMSR_1410301.6 Enter circuit name [ATMSR_1410301.6]:...
  • Page 85 Is the router connected to the same local area network as the Site Manager workstation? (y/n)[n]: Since the router is not on the same network as the Site Manager workstation an IP Routing Protocol must be configured in order to manage the box remotely...
  • Page 86 Using the Model 5782 ATM Virtual Network Router Specify the version of RIP. The default is to run RIP1. RIP2 runs RIP2 without the automatic aggregation of subnets that RIP1 provides. RIP2_AGGR provides the automatic aggregation of subnets for RIP2.
  • Page 87 HTTP Server: NOTE: The Connector value in the above Configuration Summary is the Connector number of the 5782 Module backplane ATM port. Note, however, that within the event log and the MIB browsing utilities such as Site Manager's Quick Get and the Technician Interface's debug scripts, connectors are numbered by a combination of their Connector number and Module number.
  • Page 88 Using the Model 5782 ATM Virtual Network Router Step 7. Specify a name for the configuration file. The Quick-Start configuration of the router is now complete and active. Do you wish to save this configuration to a file? (y/n)[y]: Default file name is startup.cfg on the current volume.

  • Page 89: Lan Emulation Setup Example

    As you perform the procedure, refer to the Quick-Start Guide for additional helpful information and examples. When you are finished with this procedure, the router will be able to communicate with the network management station over the IP network. are then ready to install the network management software, as described in in the Quick-Start Guide.
  • Page 90 Using the Model 5782 ATM Virtual Network Router ------------------------------------------------------------------------------- Preliminary Information You Need to Know ---------------------------------------- Before you begin this procedure, you should gather the network information listed below: You Need to Know This Information: ---------------------------------- Type of Net Module connecting the router's IP network interface to the Site Manager.
  • Page 91 -------------------------------------------- ATM Address Configuration ------------------------- If you choose Auto Generation, router software will use combination of MAC address and network prefix queried from server to generate a unique ATM address. If you do not choose Auto Generation, please enter a 7-byte User Part (Mandatory) and a 13-byte Net Prefix (Optional) to be combined to a 20-byte ATM address.
  • Page 92 Using the Model 5782 ATM Virtual Network Router Emulated LAN Type Menu ---------------------- 1. UNSPECIFIED 2. IEEE8023 3. IEEE8025 ---------------------------------------------------- Choose Emulated LAN Type [1]. Recommended Circuit Name: ATMSR_1410301.8 Enter circuit name [ATMSR_1410301.8]: ------------------------------------------------------------------------------- Step 3. Specify the IP configuration information for the network interface.
  • Page 93 RIP Configuration Complete ------------------------------------------------------------------------------- Setting up SNMP community management is optional. It allows you to limit control of this router to a single Site Manager workstation at a given IP address. is to allow any Site Manager from any workstation to manage and to configure the router.
  • Page 94 Using the Model 5782 ATM Virtual Network Router Step 5. Select FTP default volume. Do you want to enable FTP? (y/n)[n]: y NVFS File System: STATE TOTAL SIZE --------------------------------------------------------------- FORMATTED 2097152 FORMATTED 16777216 Enter volume number [7]: FTP default volume is 7: ------------------------------------------------------------------------------- Step 6.
  • Page 95 NOTE: The Connector value in the above Configuration Summary is the Connector number of the 5782 Module backplane ATM port. Note, however, that within the event log and the MIB browsing utilities such as Site Manager's Quick Get and the Technician Interface's debug scripts, connectors are numbered by a combination of their Connector number and Module number.

  • Page 96: Classical Ip Setup Example

    Using the Model 5782 ATM Virtual Network Router Classical IP Setup Example run install.bat More Mode: OFF Lines per screen: 24 ------------------------------------------------------------------------------- #### #### # ##### #### # ### # # # # #### ### ------------------------------------------------------------------------------- This part of the Quick-Start procedure configures the initial IP network interface on the router.
  • Page 97 Enter the slot number [8]: 10 Enter the module number [3]: 3 ------------------------------------------------------------------------------- 119557-A Rev. 00 Sample install.bat Scripts For Example: ------------ DENM Ethernet 10bT1 192.32.10.189 255.255.255.0 192.32.10.200 Processor Module ---------------- 5580 5580 5580 5580 5580 5580 5782 ATM Router 5380 5380 5380 D-17...
  • Page 98 Using the Model 5782 ATM Virtual Network Router Step 2. Specify the Net Module and network interface information for the initial IP connection to the Site Manager. Net Module: ATM_VNR_BH Driver Type: ATM Connector Menu -------------- 1. ATM1 Enter connector number [1]:...
  • Page 99 Is the router connected to the same local area network as the Site Manager workstation? (y/n)[n]: Since the router is not on the same network as the Site Manager workstation an IP Routing Protocol must be configured in order to manage the box remotely...
  • Page 100 Using the Model 5782 ATM Virtual Network Router Specify the version of RIP. The default is to run RIP1. RIP2 runs RIP2 without the automatic aggregation of subnets that RIP1 provides. RIP2_AGGR provides the automatic aggregation of subnets for RIP2.
  • Page 101 Step 4. Select TFTP default volume. NVFS File System: STATE TOTAL SIZE --------------------------------------------------------------- FORMATTED 2097152 FORMATTED 16777216 Enter volume number [7]: TFTP default volume is 7: ------------------------------------------------------------------------------- Step 5. Select FTP default volume. Do you want to enable FTP? (y/n)[n]: y NVFS File System: STATE TOTAL SIZE...
  • Page 102 HTTP Server: NOTE: The Connector value in the above Configuration Summary is the Connector number of the 5782 Module backplane ATM port. Note, however, that within the event log and the MIB browsing utilities such as Site Manager's Quick Get and the Technician Interface's debug scripts, connectors are numbered by a combination of their Connector number and Module number.
