Installing and Operating BayStack ARN Routers

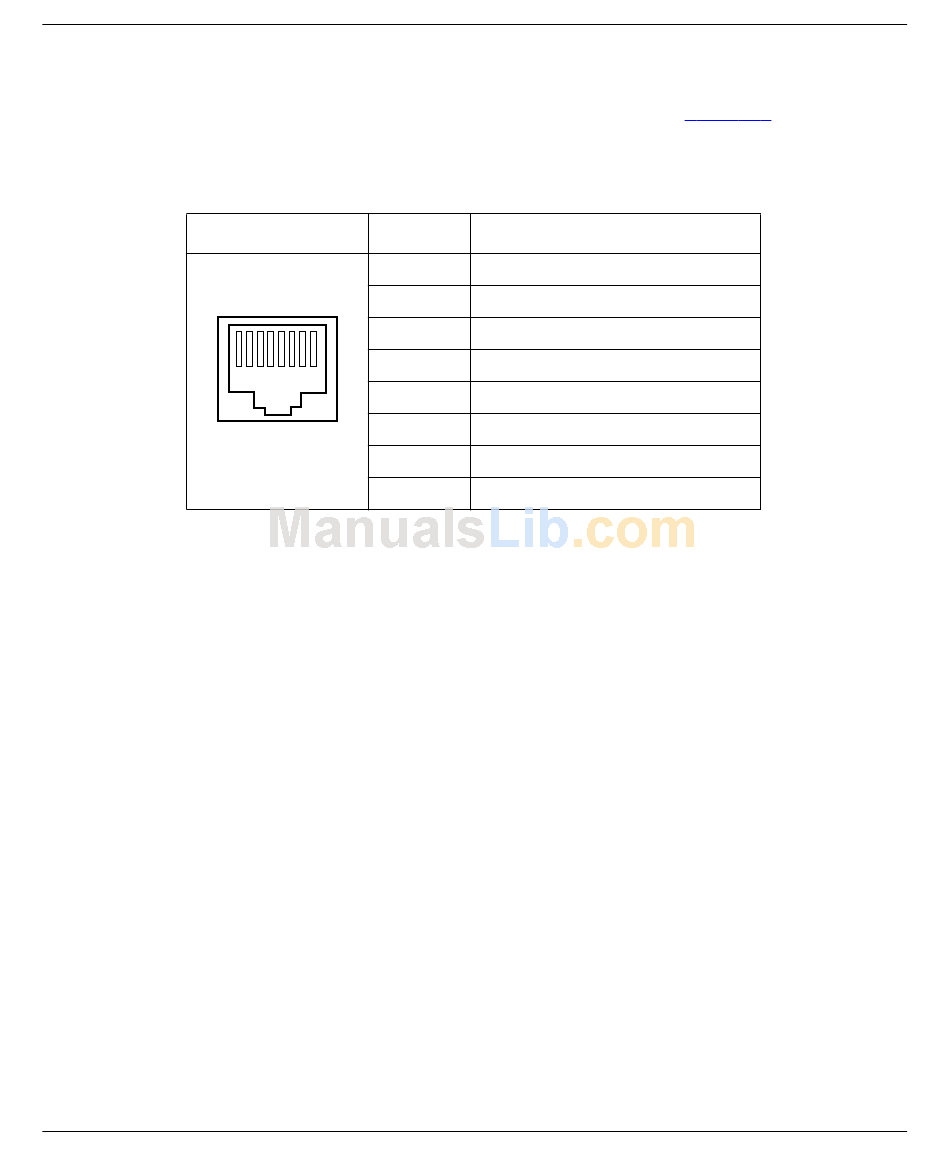

Ethernet 10Base-T Interface
The Ethernet 10Base-T interface provides UTP support.
pin locations and function assignments for the 10Base-T interface.
Table C-4.
Pin Assignment
C-6
10Base-T Interface Pin Assignments
Pin No.
1
2
12345678
3
4
5
6
7
8
Signal (Function)
TD+ (Transmit to UTP wire)
TD- (Transmit to UTP wire)
RD+ (Receive from UTP wire)
Not used
Not used
RD- (Receive from UTP wire)
Not used
Not used
Table C-4
identifies the
114200 Rev. A
