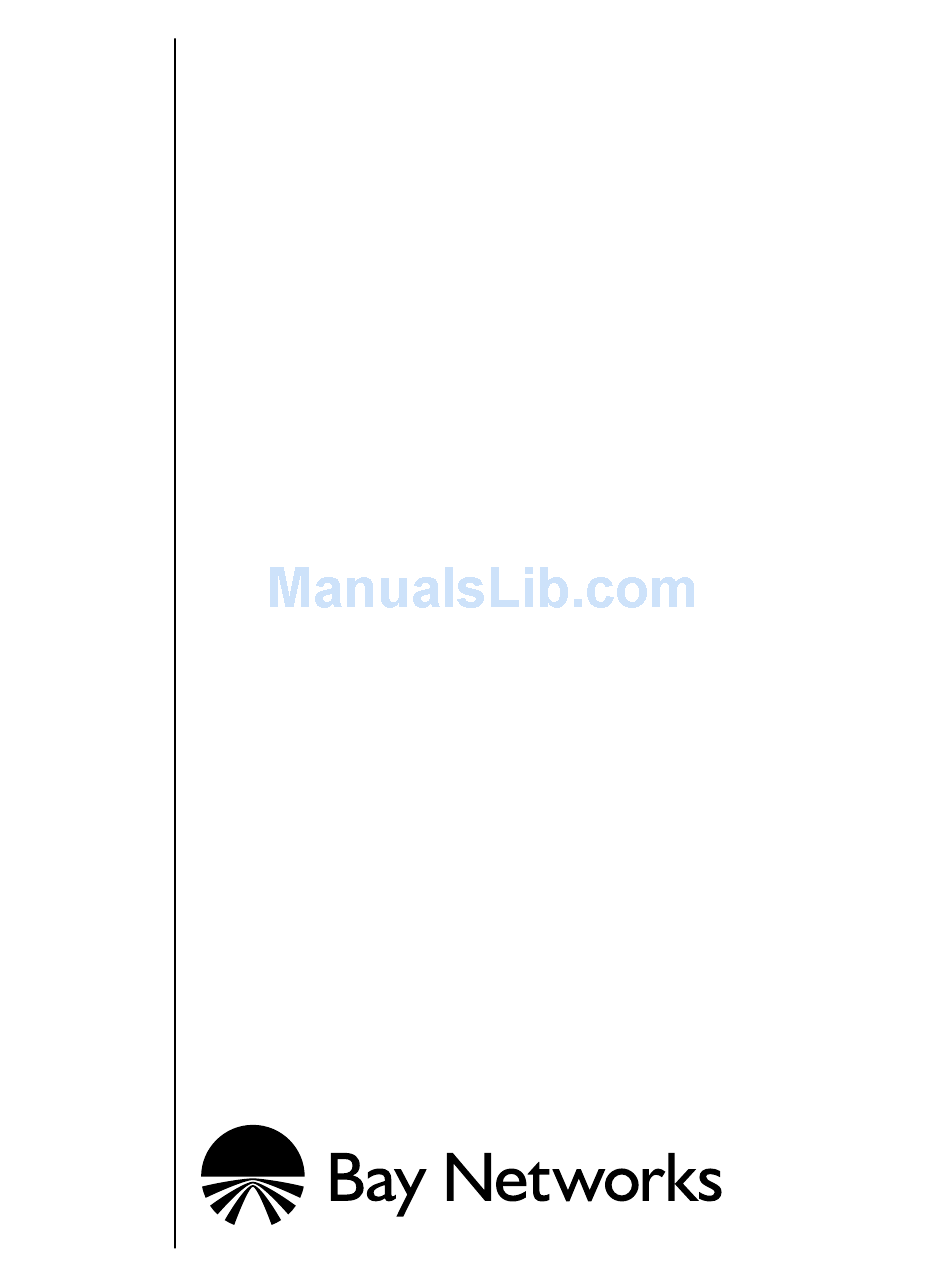

- Page 1 Quick Installation for Flash Memory Cards Part No. 112770-A May 1996...
- Page 2 files are stored on flash memory cards. You must remove the Model 5380 Ethernet Router and the Model 5580 Token Ring Router modules from the chassis to install the memory card. The Model 5780 ATM Router module has an installation slot on the front.
-
Page 3: Installing A Flash Memory Card
Installing a Flash Memory Card 1. Position the card with the label facing up and the INSERT arrow pointing toward the card slot. Model 5380 Ethernet or Model 5580 Token Ring Router Model 5780 ATM Router 2. Insert the card into the slot, and push the card until it fits snugly into place. -
Page 4: Removing A Flash Memory Card
Removing a Flash Memory Card 1. Remove the router from the chassis. Refer to Using the Model 5380 Ethernet and Model 5580 Token Ring Routers for information about removing the router. CAUTION: damaged if you do not pull the card straight out from the socket. - Page 5 Model 5380 Ethernet or Model 5580 Token Ring Router Model 5780 ATM Router 2. Remove the flash memory card by gently pulling the card away from the connectors, or by pressing the button next to the slot. 6694.1 6502.1...
- Page 6 Protecting Files on the Flash Memory Card Bay Networks ships each memory card with its read/write protect switch in the unprotected position. Bay Networks recommends making a copy of your configuration files on another flash memory card, write-protecting the card, and storing it in a safe place for backup purposes.
- Page 7 2. Set the read/write protect switch located on the edge opposite the INSERT arrow of the memory card. 3. Insert the memory card as described in “Installing a Flash Memory Card” earlier in this guide. Unprotected Protected 6498.1...
