How to Install

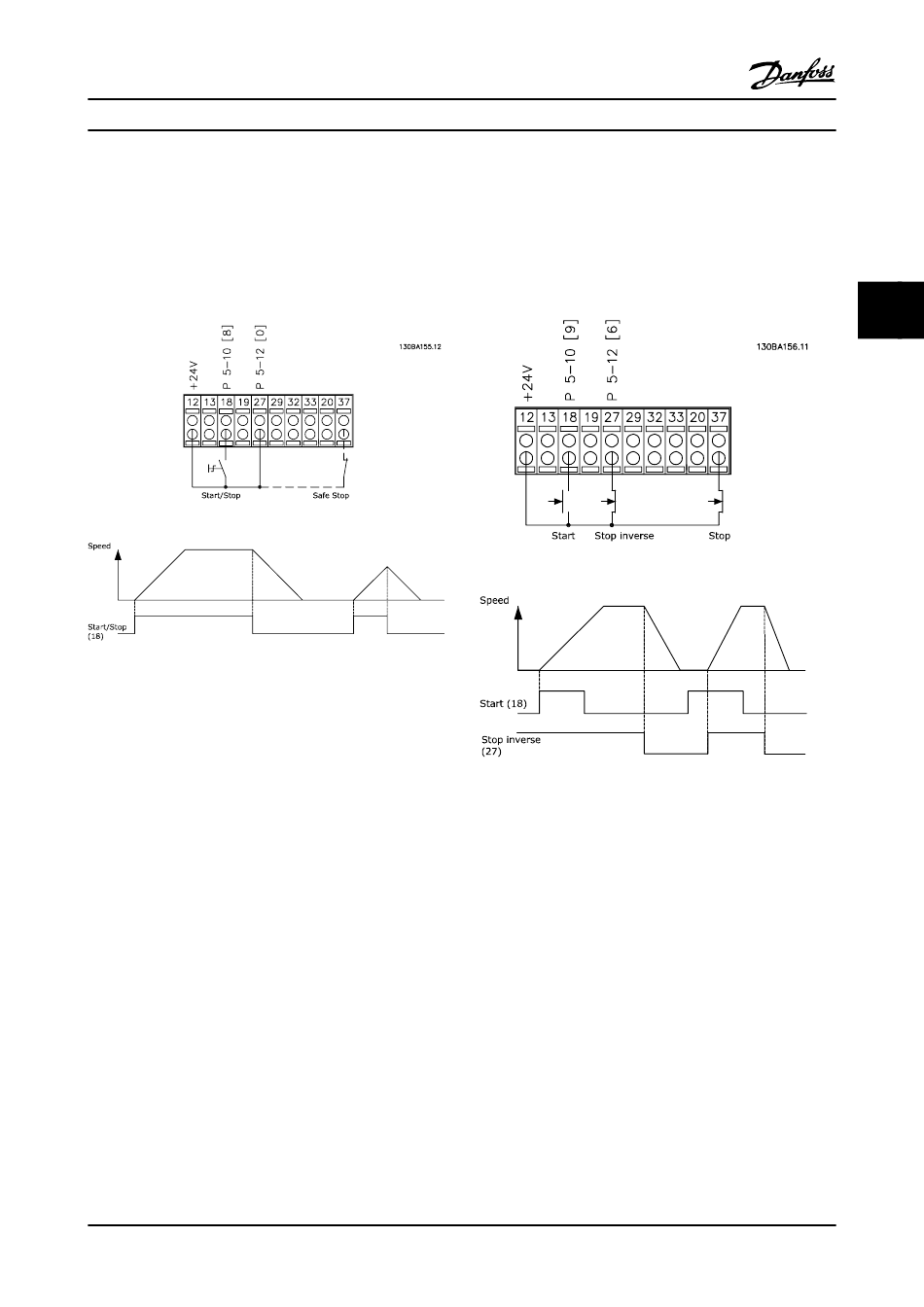

4.2 Connection Examples
4.2.1 Start/Stop
Terminal 18 = 5-10 Terminal 18 Digital Input [8] Start
Terminal 27 = 5-12 Terminal 27 Digital Input [0] No
operation (Default coast inverse)
VLT AQUA 12-Pulse High Power Instruction Manual
4.2.2 Pulse Start/Stop
Terminal 18 = 5-10 Terminal 18 Digital Input [9] Latched
start
Terminal 27= 5-12 Terminal 27 Digital Input [6] Stop inverse
®
MG.20.Y1.22 - VLT
is a registered Danfoss trademark
4
4
4-17
