NOTE!
•
For the best results of the adjustable frequency
drive, run Auto Tune on a cold motor
•
Auto Tune cannot be performed while the motor
is running.
NOTE!
Avoid generating external torque during Auto Tune.
NOTE!
If one of the settings in parameter group P-## Motor Data
is changed, 1-30 Stator Resistance (Rs) to 1-39 Motor Poles,
the advanced motor parameters will return to default
setting.
This parameter cannot be adjusted while the motor is
running.
NOTE!
Full Auto Tune should be run without filter only while
reduced Auto Tune should be run with filter.

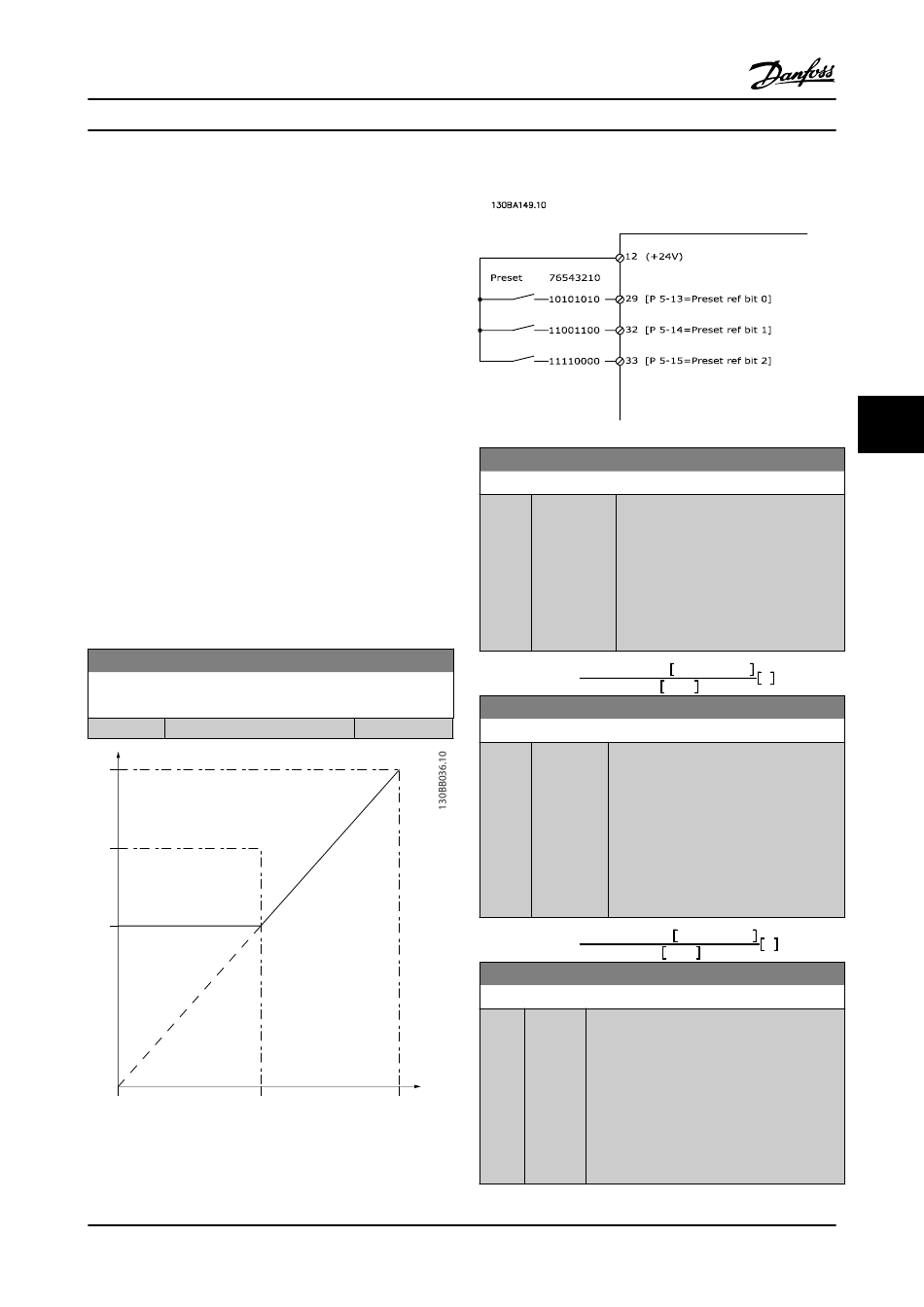

6.2.3 3-0* Reference Limits
3-10 Preset Reference
Array [8]
Range:
0.00 % [-100.00 - 100.00 %]
*
P3-03
P3-02
0 50
VLT AQUA 12-Pulse High Power Instruction Manual
10.00 s
par . F − 07 =
Function:
20.00 s
par . F − 08 =
0.00 s
P3-10
100%
®
MG.20.Y1.22 - VLT is a registered Danfoss trademark
3-41 Ramp 1 Ramp-up Time
Range: Function:
[1.00 - Enter the accel time, i.e., the
*
3600.00 s] acceleration time from 0 RPM to
1-25 Motor Nominal Speed. Choose a
accel time such that the output current
does not exceed the current limit in
4-18 Current Limit during ramping. See
decel time in 3-42 Ramp 1 Ramp-down
Time.
t n
×
acc norm
ref rpm
3-42 Ramp 1 Ramp-down Time
Range: Function:
[1.00 - Enter the decel time, i.e., the deceleration
*
3600.00 s] time from 1-25 Motor Nominal Speed to 0
RPM. Choose a decel time such that no
overvoltage arises in the inverter due to
regenerative operation of the motor, and
such that the generated current does not
exceed the current limit set in
4-18 Current Limit. See accel time in
3-41 Ramp 1 Ramp-up Time.
t × n
dec norm
ref rpm
3-84 Initial Ramp Time
Range: Function:
[0.00– Enter the initial ramp-up time from zero
*
60.00 s] speed to Motor Speed Low Limit, 4-11 Motor
Speed Low Limit [RPM] or 4-12 Motor Speed
Low Limit [Hz]. Submersible deep well pumps
can be damaged by running below minimum
speed. A fast ramp time below minimum
pump speed is recommended. This parameter
may be applied as a fast ramp rate from zero
speed to Motor Speed Low Limit.
par . P − 06
s
par . P − 06
s
