5 How to operate the adjustable frequency drive

5.1.1 Ways of Operation
The adjustable frequency drive can be operated in 3 ways:
1. Graphical Local Control Panel (GLCP), see 6.1.2
2. Numeric Local Control Panel (NLCP), see 6.1.3
3. RS-485 serial communication or USB, both for PC connection, see 6.1.4
If the adjustable frequency drive is equipped with the serial communication option, please refer to the relevant documen-
tation.

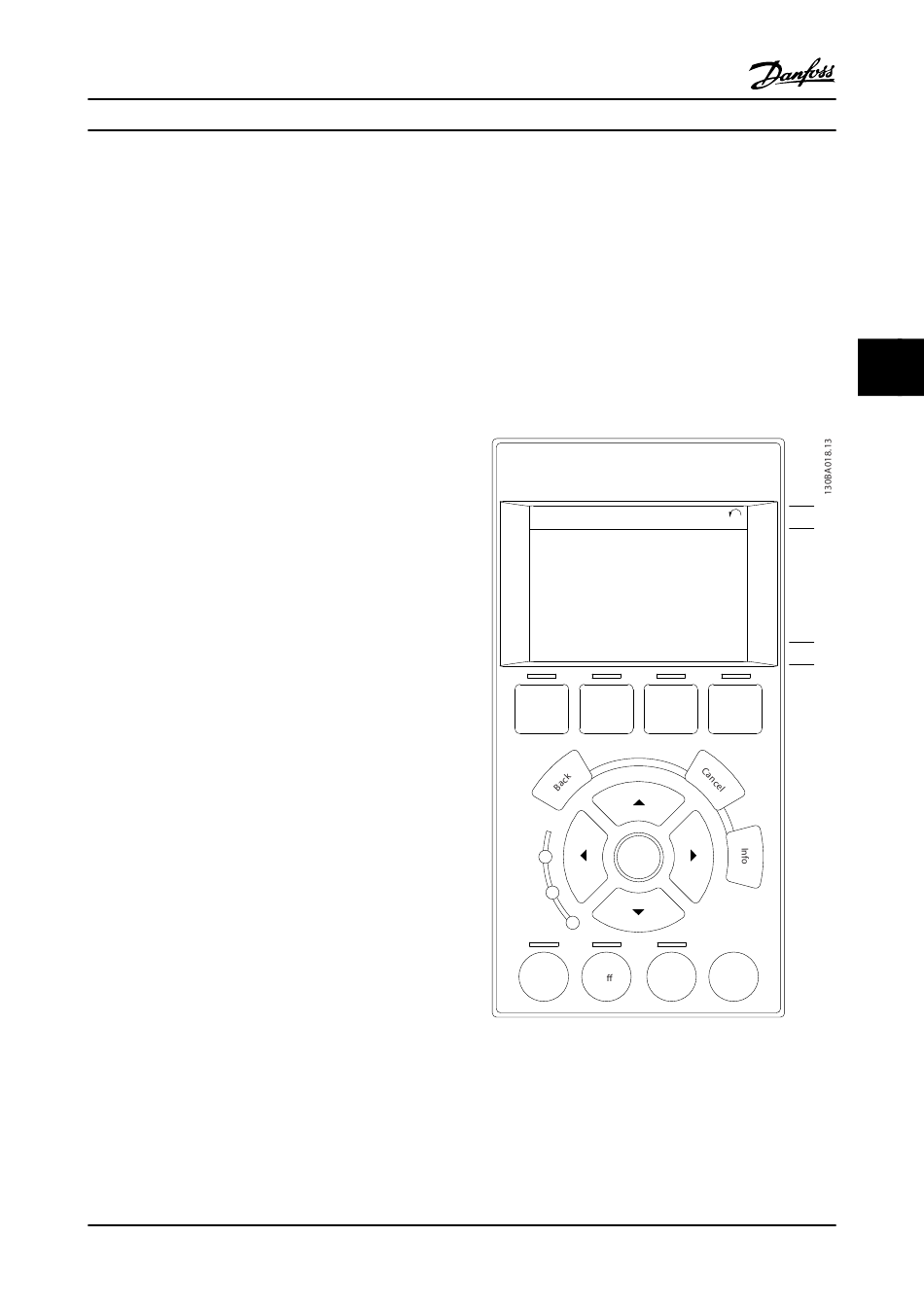

5.1.2 How to operate the Graphical LCP
(GLCP)
The following instructions are valid for the GLCP (LCP 102).
The GLCP is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and LEDs - selecting mode, changing
parameters and switching between display
functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
Graphical display:
The LCD display is back lit with a total of 6 alpha-numeric
lines. All data is displayed on the LCP, which can show up
to five operating variables while in [Status] mode.
Display lines:
a. Status line: Status messages displaying icons and
graphics.
b. Line 1-2: Operator data lines displaying data and
variables defined or chosen by the user. By
pressing the [Status] key, up to one extra line can
be added.
c. Status line: Status messages displaying text.
The display is divided into 3 sections:
Top section (a)
shows the status when in status mode, or up to two
variables when not in status mode and in the case of an
alarm/warning.
VLT AQUA 12-Pulse High Power Instruction Manual
1
2
3
4
The number of the Active Set-up (selected as the Active
Set-up in par. 0-10) is shown. When programming in
another set-up than the Active Set-up, the number of the
set-up being programmed appears to the right in brackets.
®
MG.20.Y1.22 - VLT is a registered Danfoss trademark
Status
1234rpm 10,4A
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
On
Warn.
Alarm
Hand Auto
O
on on
5
a
1(0)
43,5Hz
b
c
Alarm
Log
Reset
5-1
5
