6.1.2 Quick Menu Mode
The GLCP provides access to all parameters listed under
the Quick Menus. To set parameters using the [Quick
Menu] button:
Pressing [Quick Menu] the list indicates the different areas
contained in the quick menu.
Efficient parameter set-up for water applications
The parameters can easily be set up for the vast majority
of the water and wastewater applications only by using
the [Quick Menu].
The best way to set parameters using the [Quick Menu] is
by following the steps below:
1. Press [Quick Setup] for selecting basic motor
settings, ramp times, etc.
2. Press [Function Set-ups] for setting up the
required functionality of the adjustable frequency
drive - if not already covered by the settings in
[Quick Setup].
3. Choose between General Settings, Open-loop
Settings and Closed-loop Settings.
It is recommended to do the set-up in the order listed.

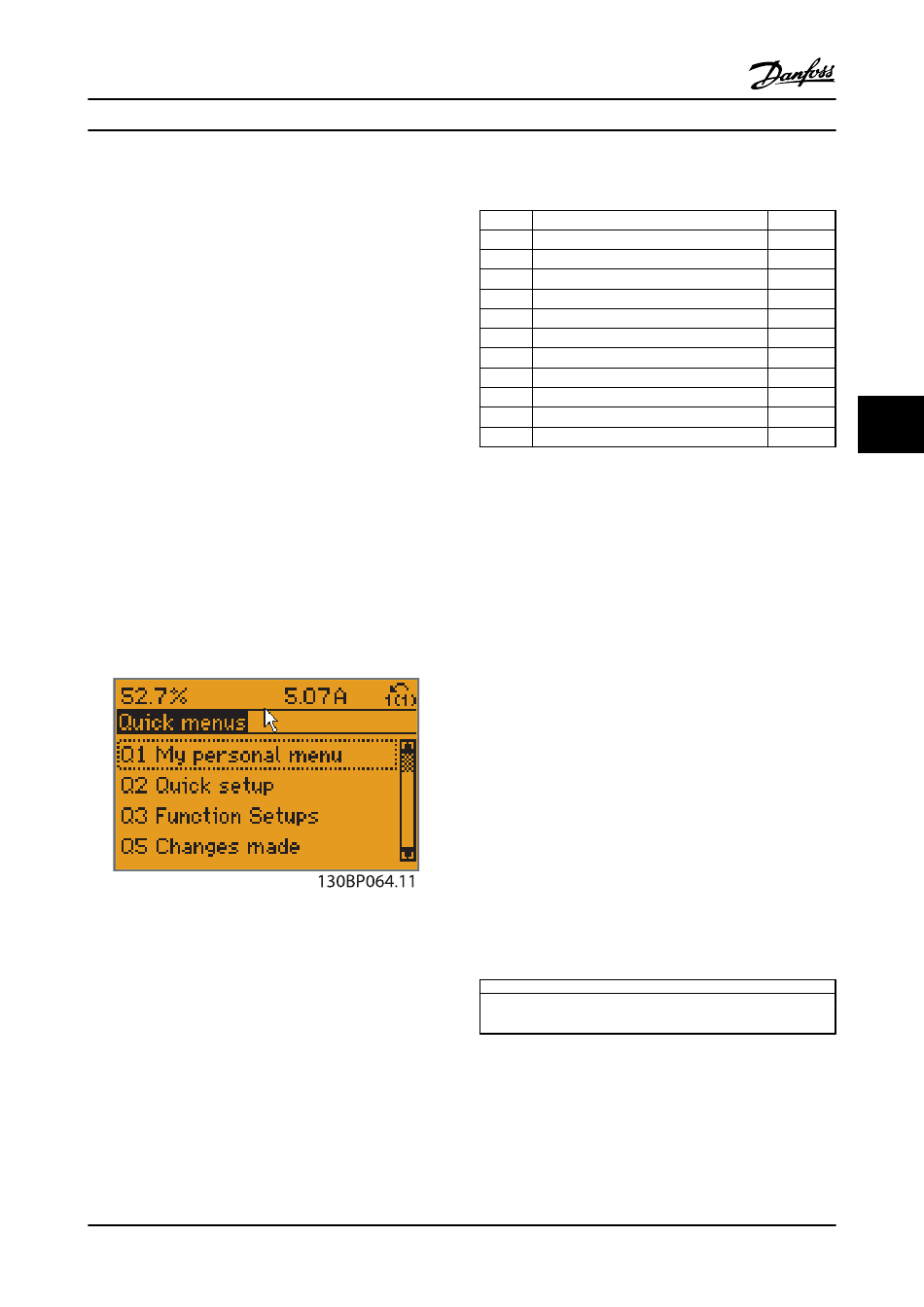

Figure 6.1 Quick Menu view.
VLT AQUA 12-Pulse High Power Instruction Manual
Par.
0-01
1-20
1-22
1-23
1-24
1-25
3-41
3-42
4-11
4-13
1-29
Table 6.2 Quick Setup parameters. Please see section
Commonly Used Parameters - Explanations
If No Operation is selected in terminal 27, no connection to
+24 V on terminal 27 is necessary to enable start.
If Coast Inverse (factory default value) is selected in
Terminal 27, a connection to +24V is necessary to enable
start.
For detailed parameter descriptions, please see the
following section on Commonly Used Parameters - Explan-
ations.
6.1.3 Q1 My Personal Menu
Parameters defined by the user can be stored in Q1 My
Personal Menu.
Select My Personal Menu to display only the parameters,
which have been pre-selected and programmed as
personal parameters. For example, a pump or equipment
OEM may have pre-programmed these to be in My
Personal Menu during factory commissioning to make on-
site commissioning / fine tuning simpler. These parameters
are selected in par. 0-25 My Personal Menu. Up to 20
different parameters can be defined in this menu.
20-21 Setpoint 1
20-93 PID Proportional Gain
20-94 PID Integral Time
®
MG.20.Y1.22 - VLT is a registered Danfoss trademark
Designation
Language
Motor Power
Motor Voltage
Motor Frequency
Motor Current
Motor Nominal Speed
Ramp 1 Ramp-up Time
Ramp 1 Ramp-down Time
Motor Speed Low Limit
Motor Speed High Limit
Automatic Motor Adaptation (AMA)
Q1 My Personal Menu
[Units]
[kW]
[V]
[Hz]
[A]
[RPM]
[s]
[s]
[RPM]
6 6
[RPM]
