Middle section (b)
shows up to 5 variables with related unit, regardless of
status. In the case of an alarm/warning, the warning is
shown instead of the variables.
It is possible to toggle between three status read-out
displays by pressing the [Status] key.
Operating variables with different formatting are shown in
each status screen - see below.
5 5 Several values or measurements can be linked to each of
the displayed operating variables. The values/
measurements to be displayed can be defined via par.
0-20, 0-21, 0-22, 0-23, and 0-24, which can be accessed via
[QUICK MENU], "Q3 Function Set-ups", "Q3-1 General
Settings", "Q3-11 Display Settings".
Each value / measurement readout parameter selected in
par. 0-20 to par. 0-24 has its own scale and number of
digits after a possible decimal point. Larger numeric values
are displayed with few digits after the decimal point.
Ex.: Current readout
5.25 A; 15.2 A 105 A.
Status display I
This readout state is standard after start-up or initialization.
Use [INFO] to obtain information about the value/
measurement linked to the displayed operating variables
(1.1, 1.2, 1.3, 2, and 3).

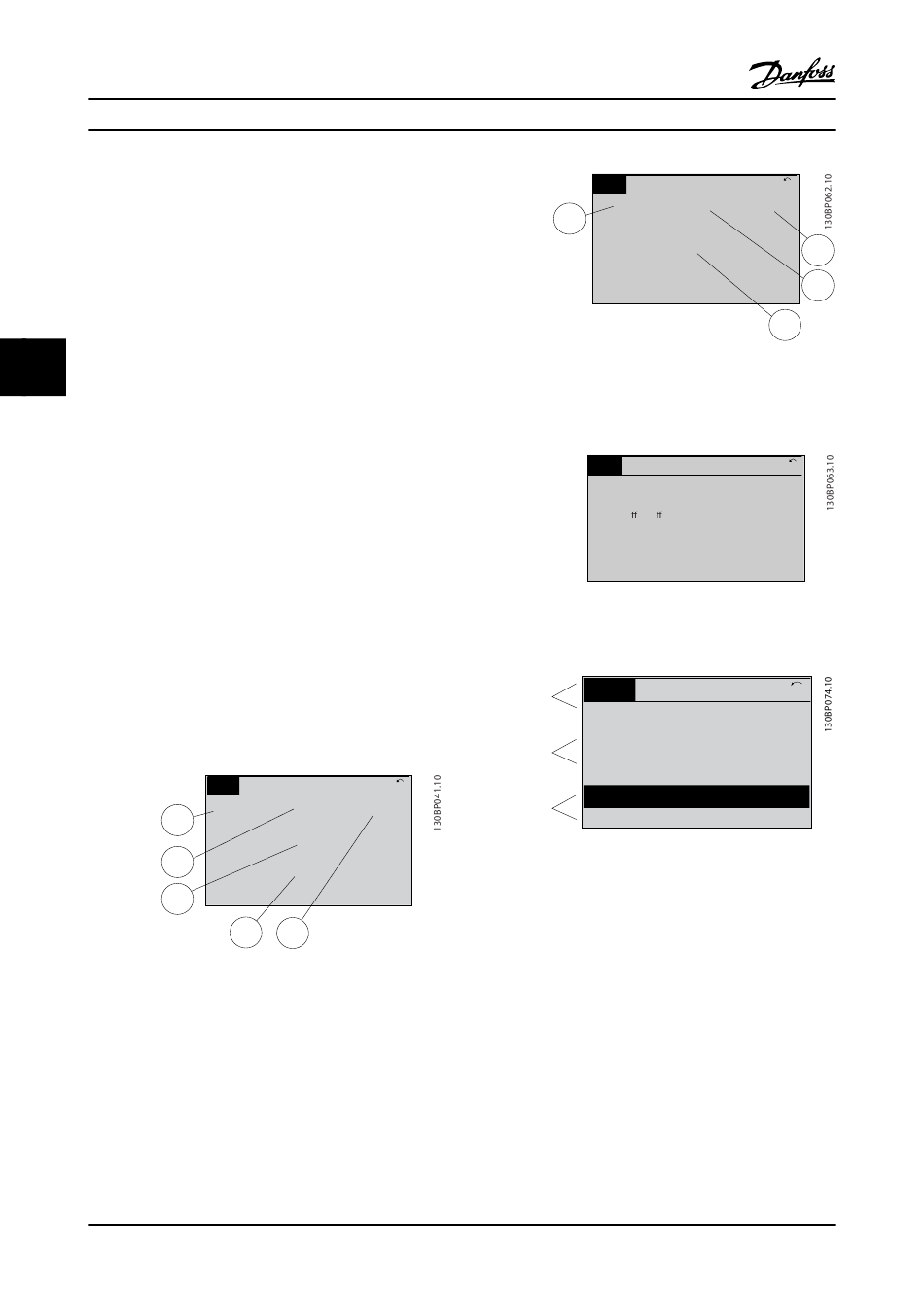

See the operating variables shown in the display in this
figure. 1.1, 1.2 and 1.3 are shown in small size. 2 and 3 are
shown in medium size.
Status display II
See the operating variables (1.1, 1.2, 1.3, and 2) shown in
the display in this figure.
In the example, Speed, Motor current, Motor power and
Frequency are selected as variables in the first and second
lines.
1.1, 1.2 and 1.3 are shown in small size. 2 is shown in large
size.
5-2
Status
799 RPM 7.83 A
1.1
0.000
1.2
53.2%
Auto Remote Ramping
2
3
1.3
MG.20.Y1.22 - VLT
VLT AQUA 12-Pulse High Power Instruction Manual
Status display III:
This state displays the event and action of the Smart Logic
Control. For further information, see the section Smart
Logic Control.
Bottom section
always shows the state of the adjustable frequency drive in
status mode.
Top section
Middle section
1 (1)
36.4 kW
Bottom section
Display contrast adjustment
Press [status] and [▲] for darker display
Press [status] and [▼] for brighter display
