Mechanical Installation
3 3

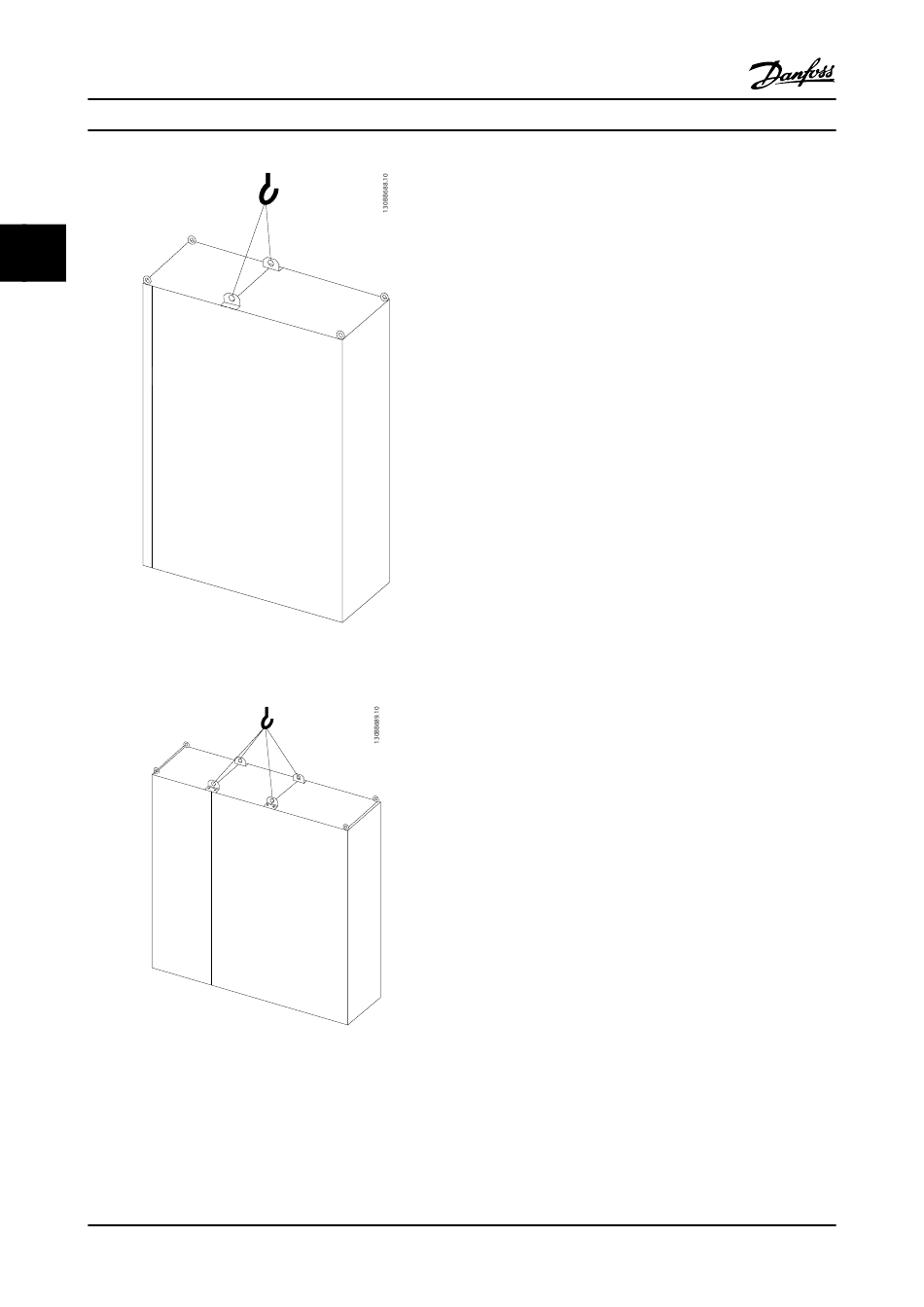

Figure 3.2 Recommended lifting method, Unit Size 63
(460V, 600–900 HP, 575/600V, 900–1150 HP).
Figure 3.3 Recommended lifting method, Unit Size 64
(460V, 1000–1200 HP, 575/600V, 1250–1350 HP).
3-2
VLT AQUA 12-Pulse High Power Instruction Manual
NOTE!
Note the plinth is provided in the same packaging as the
adjustable frequency drive but is not attached during
shipment. The plinth is required to allow airflow to the
drive to provide proper cooling. The unit sizes6X should be
positioned on top of the plinth in the final installation
location. The angle from the top of the drive to the lifting
cable should be 140°F [60°C] or greater.
In addition to the drawings above a spreader bar is an
acceptable way to lift the unit sizes 6X.
®
