Applications; Cid Dialer Connection; Zones 1 - 4 Input Connection - DMP Electronics CellCom-LTE-V SERIES Installation And Programming Manual

The CellCom-LTE-V Series Communicator can be used in a variety of applications.
3.1

CID Dialer Connection

Connect the tip and ring from the control panel directly to the communicator to capture Contact ID messages
that are based on the SIA communication standard DC-05-1999.09-DCS. These messages are then formatted into
a Serial 3 message and sent to a DMP Model SCS-1R or SCS-VR Receiver. CID Dialer Connection cannot be used
when using Zone 4 Bell Connection. Do not connect telephone company wires to the communicator. Remove any
connected telephone company wires from the control panel. See Figure 4.
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12VDC Aux. Output
3.2

Zones 1 - 4 Input Connection

Connect each control panel relay output to a CellCom-LTE-V Series Communicator zone. For programming
purposes, the zone numbers are 1-4. See Figure 5 for Burglary wiring details or Figure 6 for Fire wiring details.
The following are examples of how you might use this application for a burglary or fire alarms:
Burglary
Use a normally closed output on a burglary control panel to indicate a burglary alarm. The communicator zone
should be programmed with a Zone Name and Burglary Zone Type. When the output on the control panel turns on
and trips the communicator zone, a message will be sent to an SCS-1R or SCS-VR receiver at the Central Station.
The zone name programming could be used to describe which control panel zone indicated a burglary.
Note: Zone 4 can only be used as a standard input zone when not programmed as zone type Auxiliary 2 (A2). See
Zone 4 Bell Connection.
Burglary
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12VDC Aux. Output
Ground
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
CellCom -LTE-V Installation and Programming Guide

Applications

Use 18-22 AWG for
Power Supply connection
+
Ground
-
BELL +
BELL -
Telephone
Jack
Connector

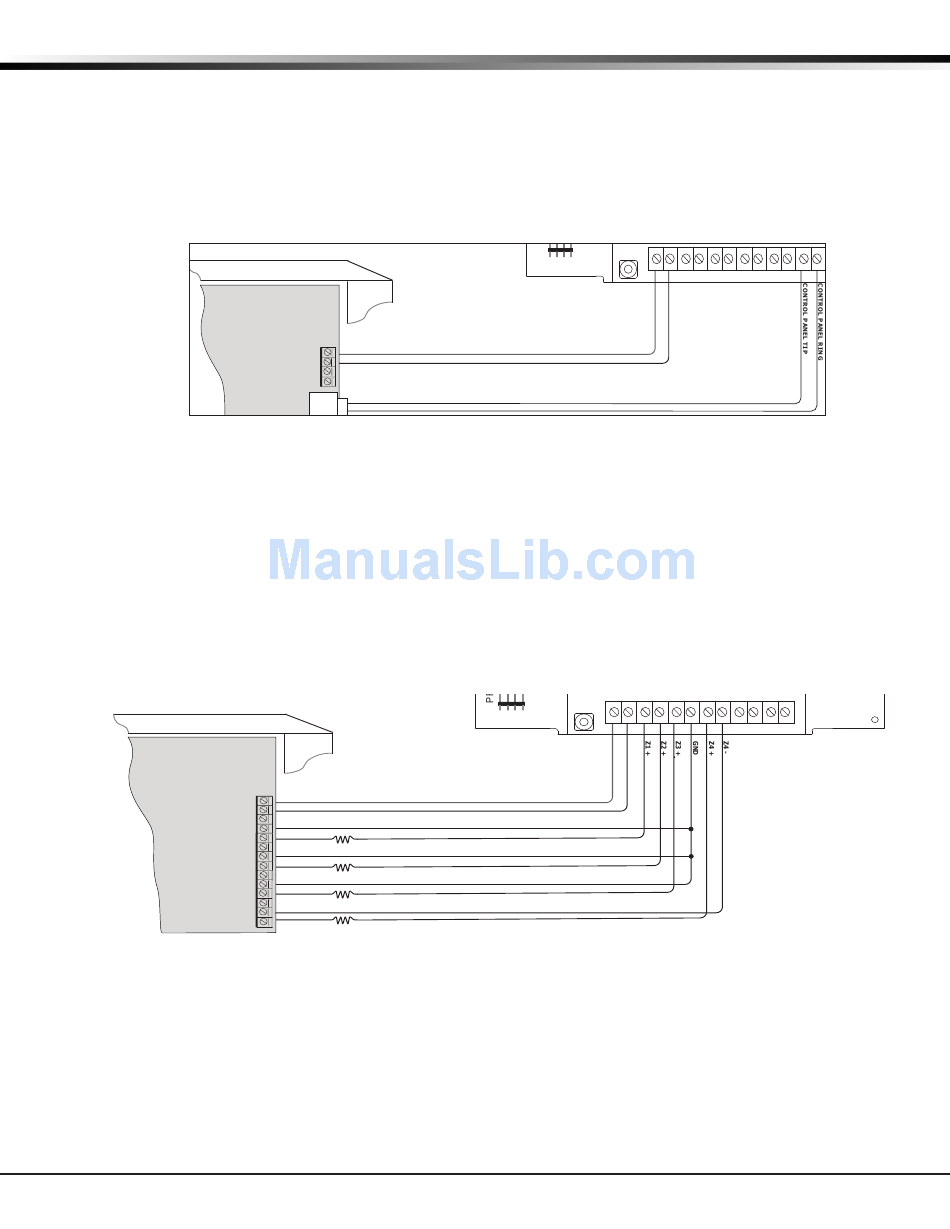

Figure 4: CellCom-LTE-V Series Wiring Diagram for Tip and Ring Connection
Use 18-22 AWG for
Power Supply connection
+
-
1k ohm
1k ohm
1k ohm
1k ohm
Figure 5: CellCom-LTE-V Series Wiring Diagram for Burglary Zones 1-4
MODEL
CellComSLC
J8
B R
J9
S3
+12
MODEL
CellComSLC
J8
B R
J9
S3
+12 G Z1 Z2
APPLICATIONS
S1
RESET
S1
S2
LOAD
S2
G Z1 Z2 Z3 G Z4+ Z4- O1 O2 T R
S1
RESET
S1
S2 LOAD
S2
Z3 G Z4+ Z4- O1 O2 T R
Digital Monitoring Products
5
