APPLICATIONS

The DualCom communicator can be used in a variety of applications.

CID Dialer Connection

Directly connect one or both tip and ring terminals from the control panel to the communicator. See Figure 4. This
connection captures Contact ID messages from any fire panel that are based on the SIA communication standard
DC‑05‑1999.09‑DCS. Messages are then formatted into a Serial 3 message and sent to an SCS‑1R Receiver or
SCS‑VR Receiver.
Note: CID Dialer Connection cannot be used when using Zone 4 Bell Connection. Do not connect telephone
company wires to the communicator. Remove any connected telephone company wires from the control panel.
Communication Failure
The phone line voltage on the second tip and ring will drop when DualComNF is in a communication failure state. This
Switch
triggers the host panel to annunciate a communication failure. When communications have restored on DualComNF,
voltage will be restored on the second tip and ring terminal, allowing the host panel to see a restoral on the phone
line..
Control Panel
The panel or separate power
supply must be listed for fire,
regulated, and power limited.
12/24 VDC Aux. Output +
Ground
-
BELL +
BELL -
Telephone
Jack
Connector
Telephone
Jack
Connector
Zones 1‑4 Input Connection
Connect each control panel relay output to a zone on the communicator. For programming purposes, the zone
numbers are 1‑4. The following is an example of how you might use this application for a burglary or fire alarm.
Burglary
(DualComWZ only)
Use a normally closed output on a burglary control panel to indicate a burglary alarm. The communicator zone should
be programmed with a zone name and burglary zone type. When the output on the control panel turns on and trips
the communicator zone, a message is sent to an SCS‑1R or SCS‑VR receiver at the central station. The zone name
programming can be used to describe which control panel zone indicated a burglary. See Figure 5.
Note: Zone 4 can only be used as a standard input zone when not programmed as zone type Auxiliary 2 (A2). See
Zone 4 Bell Connection.
Burglary
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
Ground
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Digital Monitoring Products
6
(DualComNF only)
(CellComDF Only) Connect the Ethernet within 20 ft and
conduit to network equipment in the same room
Use 18-22 AWG for
power supply connection
+ DC -, T1 R1, and T2 R2 shall be connected
within 20 ft in the same room and routed in

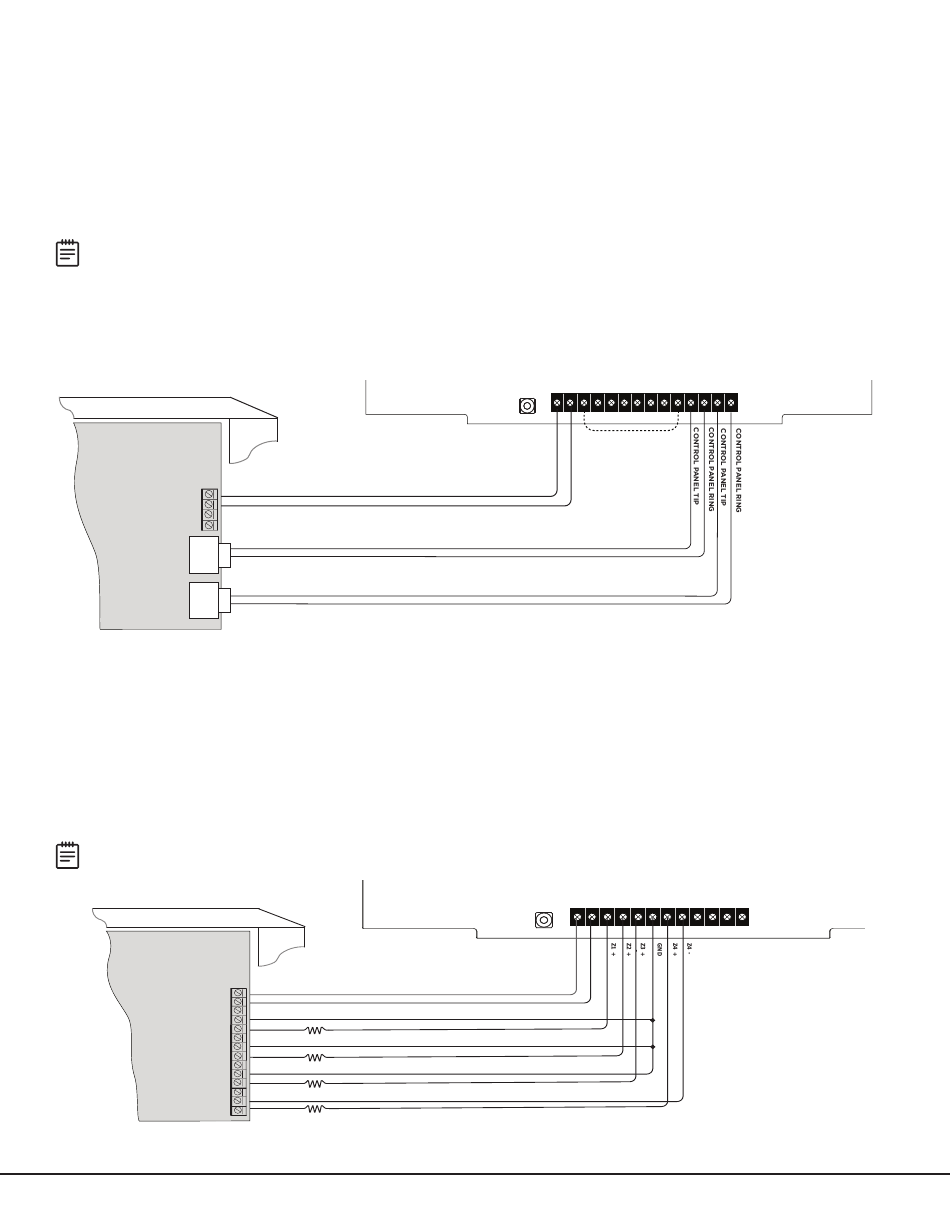

Figure 4: Wiring Diagram for Tip and Ring Connection
Use 18-22 AWG for
Power Supply connection
+
-
1k ohm
1k ohm
1k ohm
1k ohm
Figure 5: Wiring Diagram for Burglary Zones 1‑4
routed in
(supervised, power limited).
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
NC (No Connection)
conduit.
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1
