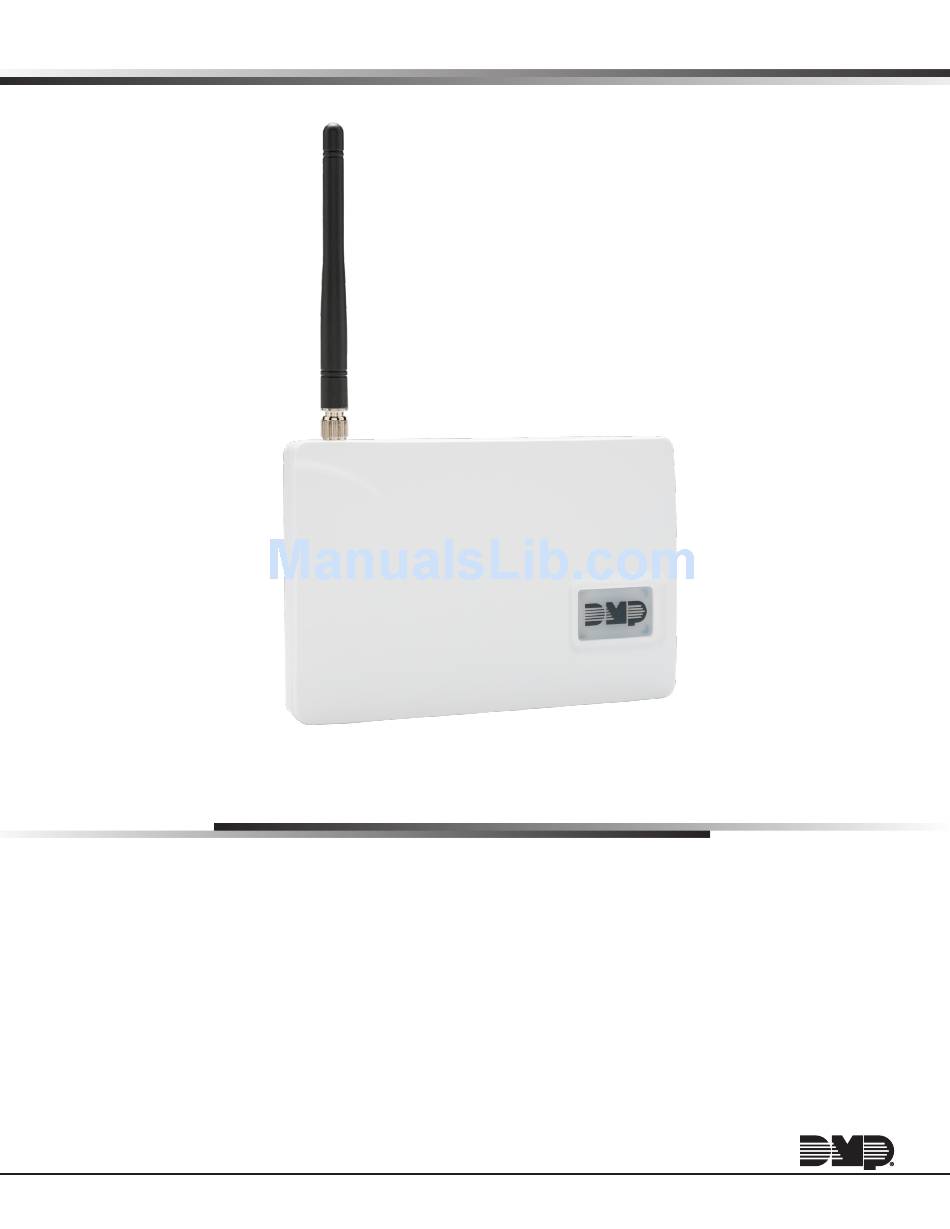

INSTALLATION AND PROGRAMMING GUIDE
CellCom-LTE-V SERIES
UNIVERSAL ALARM COMMUNICATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CellCom-LTE-V SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics CellCom-LTE-V SERIES

Summary of Contents for DMP Electronics CellCom-LTE-V SERIES

  • Page 1 INSTALLATION AND PROGRAMMING GUIDE CellCom-LTE-V SERIES UNIVERSAL ALARM COMMUNICATOR...
  • Page 2 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    Using Outputs for Communication Failure ..............9 Remote Arming and Disarming ..............10 Virtual Keypad App and VirtualKeypad.com .............10 Using Outputs to Arm and Disarm ................10 Programming the CellCom-LTE-V Series Universal Alarm Communicator ..11 Before You Begin ....................11 Getting Started .....................11 Programming Menu ....................11 Reset Timeout ......................12...
  • Page 4 TABLE OF CONTENTS 7.16 Second IP Address ....................16 7.17 Second IP Port ......................16 7.18 Receiver 2 Programming ..................16 7.19 Alarm Reports .......................16 7.20 Supervisory/Trouble Reports ..................16 7.21 Opening/Closing and User Reports .................16 7.22 Test Report ......................16 7.23 First IP Address .....................16 7.24 First IP Port ......................17 7.25...
  • Page 5 TABLE OF CONTENTS 13.11 Message To Transmit .....................25 13.12 Output Number .....................25 13.13 Output Action .......................25 13.14 Swinger Bypass .....................26 13.15 Cross Zone ......................26 13.16 Receiver Routing ....................26 13.17 Zone Number ......................26 Stop ........................ 27 14.1 Stop ........................27 Set Lockout Code .................... 28 15.1 Set Lockout Code ....................28 Z-Wave Setup (Model CellComZ-LTE-V Only) ..........
  • Page 6 TABLE OF CONTENTS Digital Monitoring Products CellCom- LTE-V Installation and Programming Guide...

  • Page 7: Description

    The CellCom-LTE-V Series Universal Alarm Communicator provides a fully supervised alarm communication path for any burglary, commercial fire or residential fire control panel. The CellCom-LTE-V Series can be connected to a control panel’s dialer output and used to capture Contact ID messages based on SIA DC-05-1999.09-DCS. The communicator also provides four input zones and two open-collector outputs for connection to burglary, commercial fire or residential fire control panel outputs, and zones.

  • Page 8: Terminals

    Terminals Power Connection Terminals Power is provided from the Nominal 12VDC auxiliary output of the control panel for CellCom-LTE-V Series Universal Alarm Communicators. The CellComF-LTE-V Series may be powered from the 12VDC or 24VDC auxiliary output of the control panel. Observe Polarity (See Figure 1 and Backlit Logo) and use 18-22 AWG wire to connect the communicator terminal +12 to the +12 or +24V positive terminal on the control panel auxiliary output.

  • Page 9: Backlit Logo

    To update the communicator with a new firmware version, complete the following steps at the protected premise: 399 Programming Cable 1. Connect a DMP 399 Cable from the PROG Header to the serial port of your PC operating Remote Link and containing the communicator RU file.

  • Page 10: Mount The Cellcom-Lte-V Series Communicator

    INSTALLATION Mount the CellCom-LTE-V Series Communicator Select a Location Install the communicator away from metal objects. Do not mount the communicator inside or on a control panel metal enclosure. Mounting the communicator on or near metal surfaces impairs cellular and Z-Wave wireless performance.

  • Page 11: Applications

    Zones 1 - 4 Input Connection Connect each control panel relay output to a CellCom-LTE-V Series Communicator zone. For programming purposes, the zone numbers are 1-4. See Figure 5 for Burglary wiring details or Figure 6 for Fire wiring details.

  • Page 12: Zone 4 Bell Connection

    APPLICATIONS Fire RESET Use a normally open output on a fire control panel to indicate a fire alarm. The CellComF-LTE-V Series zone LOAD should be programmed with a Zone Name and Fire Zone Type. When the output on the control panel turns on and MODEL trips the CellComF-LTE-V Series zone, a message will be sent to an SCS-1R or SCS-VR receiver at Central Station.
  • Page 13 APPLICATIONS MODEL CellCom-LTE-V DMP Panel Use 18-22 AWG 12VDC Aux. Output for Power Supply 1k ohm connection Voltages above 1.4VDC are considered Alarm 1k ohm (for Supervision) ADEMCO Panel MODEL CellCom-LTE-V Use 18-22 AWG 12VDC Aux. Output for Power Supply connection 1k ohm Voltages above 1.4VDC...

  • Page 14: Ademco/Honeywell Ecp Connection

    APPLICATIONS Ademco/Honeywell ECP Connection A CellCom-LTE-V can be connected to the ECP Bus of an Ademco/Honeywell panel. Table 3 and Figure 8 detail the necessary wiring connections for the CellCom-LTE-V to communicate with the Ademco/Honeywell ECP Bus. CellCom-LTE-V to ECP Wiring CellCom-LTE-V Ademco/Honeywell ECP Bus Keypad Power...

  • Page 15: Using Outputs For Communication Failure

    APPLICATIONS Accessing Programming on the Ademco/Honeywell Panel The Installer code may be changed in Ademco/Honeywell panels. A new 4-digit Installer code may be entered. If the Installer code is not known, use the following steps to access Programming in the Ademco/Honeywell panel without an Installer code: 1.

  • Page 16: Remote Arming And Disarming

    Using a Smartphone with the DMP Virtual Keypad App or using a computer with VirtualKeypad.com, you can connect to the CellCom-LTE-V Series Communicator to arm Areas, turn Outputs on and off, and add, edit or remove Users. When using the CellComZ-LTE-V, you can control Z-Wave devices, Favorites and Rooms. See Figure Figure 10: Virtual Keypad Application can be used to access the CellCom-LTE-V Communicator.

  • Page 17: Programming The Cellcom-Lte-V Series Universal Alarm Communicator

    3. Enter the code 6653 (PROG) and the keypad displays PROGRAMMER. Programming Menu You are now ready to start programming the CellCom-LTE-V Series Universal Alarm Communicator. Press the CMD key to advance through the programming menu items listed in Table 4. To select a menu item for programming, press any select key or area when the desired menu item displays on the keypad.

  • Page 18: Reset Timeout

    PROGRAMMING INTRODUCTION Reset Timeout The CellCom-LTE-V Series Universal Alarm Communicator has a feature that requires you to enter the Programmer menu within 30 minutes of resetting the communicator. After 30 minutes, if you attempt to program by entering the 6653 (PROG) code, the keypad displays: RESET PANEL. You must reset the communicator and enter the program code within the next 30 minutes.

  • Page 19: Entering Letters And Special Characters

    PROGRAMMING INTRODUCTION Entering Letters and Special Characters Some options during programming require you to enter Letters and Special Characters. Use the Number Pad directions below to enter letters and special characters on a number pad or use the Standard Keyboard directions to enter letters and special characters on a standard keyboard.

  • Page 20: Initialization

    INITIALIZATION Initialization Initialization INITIALIZATION This function allows you to set the communicator’s programmed memory back to the factory defaults in preparation for system programming. After selecting YES to clear a section of memory, the communicator asks if you are sure you want to clear the memory.

  • Page 21: Communication

    Communication Communication COMMUNICATION The Communication section allows you to configure the communication settings for the CellCom-LTE-V Series Universal Alarm Communicator. Account Number ACCOUNT NO: Enter the account num ber sent to the receiver (Range is 1-65535). For account numbers of four digits or less, you do not have to enter leading zeros.

  • Page 22: Test Report

    COMMUNICATION 7.13 Test Report TEST RPT Enter YES to enable the Recall Test report from the host panel and/or CellCom-LTE-V communicator to be sent to this receiver. (Default is YES) 7.14 First IP Address FIRST IP ADDR 000.000.000.000 Enter the first (primary) IP address where the communicator sends cell messages. Enter all 12 digits and leave out the periods.

  • Page 23: First Ip Port

    COMMUNICATION 7.24 First IP Port FIRST IP PORT Enter the first IP port number to be used in conjunction with the First IP Address. 2001 The IP port identifies the port used to communicate messages to and from the panel. The default IP Port setting is 2001.

  • Page 24: Remote Options

    REMOTE OPTIONS Remote Options Remote Options REMOTE OPTIONS This section allows you to enter the information needed for Remote Command/Remote Programming operation. Remote Key RMT KEY: This option allows you to enter a code of up to eight digits for use in verifying the authority of a receiver to perform a remote command/programming session.

  • Page 25: System Reports

    SYSTEM REPORTS System Reports System Reports SYSTEM REPORTS This function allows you to select which reports the communicator sends to the receiver. Opening/Closing Reports O/C RPTS NO: Opening/Closing Reports are not sent. YES: Opening/Closing Reports for each programmed area are sent. (Default is YES) Zone Restoral Reports RESTORAL NO YES...

  • Page 26: System Options

    SYSTEM OPTIONS System Options 10.1 System Options SYSTEM OPTIONS This section allows you to select system wide parameters used in the operation of the communicator system. A description of each System Option follows: 10.2 Entry Delay 1 ENTRY DLY 1: Enter the entry delay time for all exit type zones programmed.

  • Page 27: Time Changes

    SYSTEM OPTIONS 10.8 Time Changes TIME CHG This option allows the communicator to request automatic time changes from the DMP SCS-1R or SCS-VR Receiver. For the receiver to send time changes, it must be programmed to send time changes and must be receiving time change updates from the host automation computer at least every 24 hours.

  • Page 28: Output Options

    OUTPUT OPTIONS Output Options 11.1 Output Options OUTPUT OPTIONS This section allows you to program communicator output options. Switched Ground (open collector) outputs are available using terminals O1 and O2 as the ground and your control panel for power. Select from outputs 1 or 2. 11.2 Cutoff Outputs CO OUTS: - -...

  • Page 29: Area Information

    AREA INFORMATION Area Information 12.1 Area Information AREA INFORMATION This section allows you to assign functions to the area of the communicator. All non- 24-hour zones must be assigned to an active area. See Zone Information for more information. 12.2 Area Number AREA NO: - Enter the number of the area to program.

  • Page 30: Zone Information

    ZONE INFORMATION Zone Information 13.1 Zone Information ZONE INFORMATION This allows you to define the operation of each protection zone used in the system. 13.2 Zone Number ZONE NO: - The communicator has four zones to program. Enter the number of the zone you intend to program.

  • Page 31: Next Zone

    ZONE INFORMATION DIS (Disarm): A short will disarm the area. When restored to normal, no action occurs. When the zone is opened from a normal (disarmed) state, a trouble is reported. STEP: A short will arm the areas. A normal condition will cause no action. An open condition will disarm the areas.

  • Page 32: Swinger Bypass

    ZONE INFORMATION STD (steady): The output is turned on and remains on until the area is disarmed, an MOM FLW output cutoff time expires, or the output is reset from the keypad User Menu. PLS (pulse): The output alternates one second on and one second off until the area is disarmed, an output cutoff time expires, or the output is reset from the keypad User Menu.

  • Page 33: Stop

    STOP Stop 14.1 Stop STOP At the STOP option, pressing any select key or area allows you to exit the programmer function of the communicator. When selected, the communicator performs an internal reset and exits the programmer. Digital Monitoring Products CellCom -LTE-V Series Installation and Programming Guide...

  • Page 34: Set Lockout Code

    SET LOCKOUT CODE Set Lockout Code 15.1 Set Lockout Code SET LOCKOUT CODE Pressing CMD at the Stop option displays SET LOCKOUT CODE. This feature allows you to program a special code that will then be required to gain access to the communicator’s internal Programmer through the keypad.

  • Page 35: Z-Wave Setup (Model Cellcomz-Lte-V Only)

    Z-WAVE SETUP Z-Wave Setup (Model CellComZ-LTE-V Only) Your system may include a DMP Z-Wave controller. The Z-Wave controller allows short range radio control of Z-Wave devices that you or your installation company may provide such as lighting control modules, thermostat controls, doors, and garage doors.

  • Page 36: Rename Z-Wave Devices

    Z-WAVE SETUP 16.3 RENAME Z-Wave Devices 1. Access the User Menu. 2. Press CMD until ZWAVE SETUP? displays. 3. Press any Select key. The keypad displays ADD LIST REMOVE. 4. Select LIST to display DEVICE LIST and the first Z-Wave device stored. Press the CMD key to advance through the list of Z-Wave devices.

  • Page 37: Adding A Favorite

    Z-WAVE SETUP 16.7 Adding a FAVORITE 1. Access the User Menu. 2. Press CMD until ZWAVE SETUP? displays. 3. Press any Select key. The keypad displays ADD LIST REMOVE. 4. Press CMD again to display FAV XFER OPT. Select FAV and FAVORITE NUMBER: - is displayed. 5.

  • Page 38: 16.10 Edit Devices In Favorites

    Z-WAVE SETUP 10. Press any Select key and the keypad displays FAN SETTING:. 11. Press any Select key and ON AUTO displays. Press the Select key under the desired new setting to change. 12. The Favorite name and the next Z-Wave device stored in the system displays. Note: A maximum of 25 devices can be assigned to each Favorite.

  • Page 39: Optimize (Opt)

    Z-WAVE SETUP 5. Select YES to to allow receipt of Z-Wave devices to your system. The keypad displays TRANSFERRING Z-WAVE DEVICES. Pressing the Back Arrow key cancels the transfer. Select NO to exit the XFER menu and return to ZWAVE SETUP?. All programming will still be intact on the DMP Z-Wave controller and will cancel the transfer. 6.

  • Page 40: Appendix

    APPENDIX Appendix This section of the CellCom-LTE-V Series Universal Alarm Communicator Installation/Programming Guide provides additional zone and system information. 17.1 False Alarm Reduction System Recently Armed report The System Recently Armed report (S78) is sent when a burglary zone goes into alarm within two minutes of the system being armed.

  • Page 41: Using The 984 Command Function

    APPENDIX Z-Wave Test Option TEST ZWAVE This feature allows the installer to test CellComZ-LTE-V communication with Z-Wave devices. A successful test indicates a response from a device. Press any top row Select DEVICE LIST: key to view the Z-Wave Device List. HALLWAY LIGHT Press CMD to advance through each Z-Wave device and press any top row Select key to begin the test on the device displayed.

  • Page 42: Cross Zoning

    Replication is the process of copying network information to another device (typically a Z-Wave controller) in the Z-Wave network. 17.7 Zone 4 Bell Cadence Information The CellCom-LTE-V Series evaluates the first 3.5 seconds of bell cadence timing to detect the type of alarm sent. Bell cadence types are: Bell Cadence Zone Number...

  • Page 43: Remote Arming/Disarming For Ademco Vista Control Panels

    APPENDIX 17.8 Remote Arming/Disarming for Ademco Vista Control Panels The following steps describe how to configure the CellCom-LTE-V to arm and disarm an Ademco Vista control panel from a schedule or remotely from the Virtual Keypad App, VirtualKeypad.com, or RemoteLink™ using the Remote Arming Output.

  • Page 44: Ademco Vista 20P To Cellcom-Lte-V For Remote Arming/Disarming

    APPENDIX 17.9 Ademco Vista 20P to CellCom-LTE-V for Remote Arming/Disarming +DC- 1 2 3 4 5 6 7 8 (USE SA4120XM-1 CABLE) SYNC BLACK DATA Ademco Vista 20P VISTA 20P ONLY RING RING (BROWN) (GRAY) (GREEN) (RED) Figure 16: Ademco Vista 20P to CellCom-LTE-V 17.10 DMP XRSuper6 to CellCom-LTE-V for Remote Arming/Disarming Reset RJ SUP...

  • Page 46: Specifications

    Specifications Dimensions and Color CellCom-LTE-V Housing Dimensions 5.5”W x 3.75”L x 1”H Housing Color CellCom-LTE-V, CellComZ-LTE-V: White Primary Power Nominal 12VDC CellComF-LTE-V: Red Current Draw 12VDC: Certifications Standby 55 mA Alarm 102 mA (Cellular Communication) Cellular CellComZ-LTE-V FCC Part 15: MIVCNN0301 Primary Power Nominal 12VDC CellCom-LTE-V Current Draw...
