applIca tIons
The iComSL Series Communicator can be used in a variety of applications:
3.1
CID Dialer Connection
Directly connect the telco phone line (tip and ring) from the control panel to the iComSL to capture Contact
ID messages that are based on the SIA communication standard DC-05-1999.09-DCS. These messages are
then formatted into a Serial 3 message and sent to a DMP Model SCS-1R or SCS-VR Receiver. Note: CID Dialer
Connection cannot be used when using Zone 4 Bell Connection.
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
Ground
BELL +
BELL -
Telephone
Jack
Connector
3.2
Zones 1 - 4 Input Connection
Connect each burglary control panel relay output to a iComSL Series Communicator zone. For programming
purposes, the zone numbers are 1 - 4. (See Figure 9 for wiring details). An example of how you might use this
application: You can use a normally closed output on the burglary control panel to indicate a burglary alarm. The
iComSL zone should be programmed with a zone name and zone type of Burg. When the output on the control
panel turns on and trips the iComSL zone, a message will be sent to an SCS-1R or SCS-VR receiver at Central
Station. You could use the zone name programming to describe which control panel zone indicated a burglary.
Note: Zone 4 can only be used as a standard input zone when not programmed as zone type Auxiliary 2 (A2). See
Zone 4 Bell Connection.
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
Ground
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Digital Monitoring Products
4
Use 18-22 AWG for
Power Supply connection
+
-

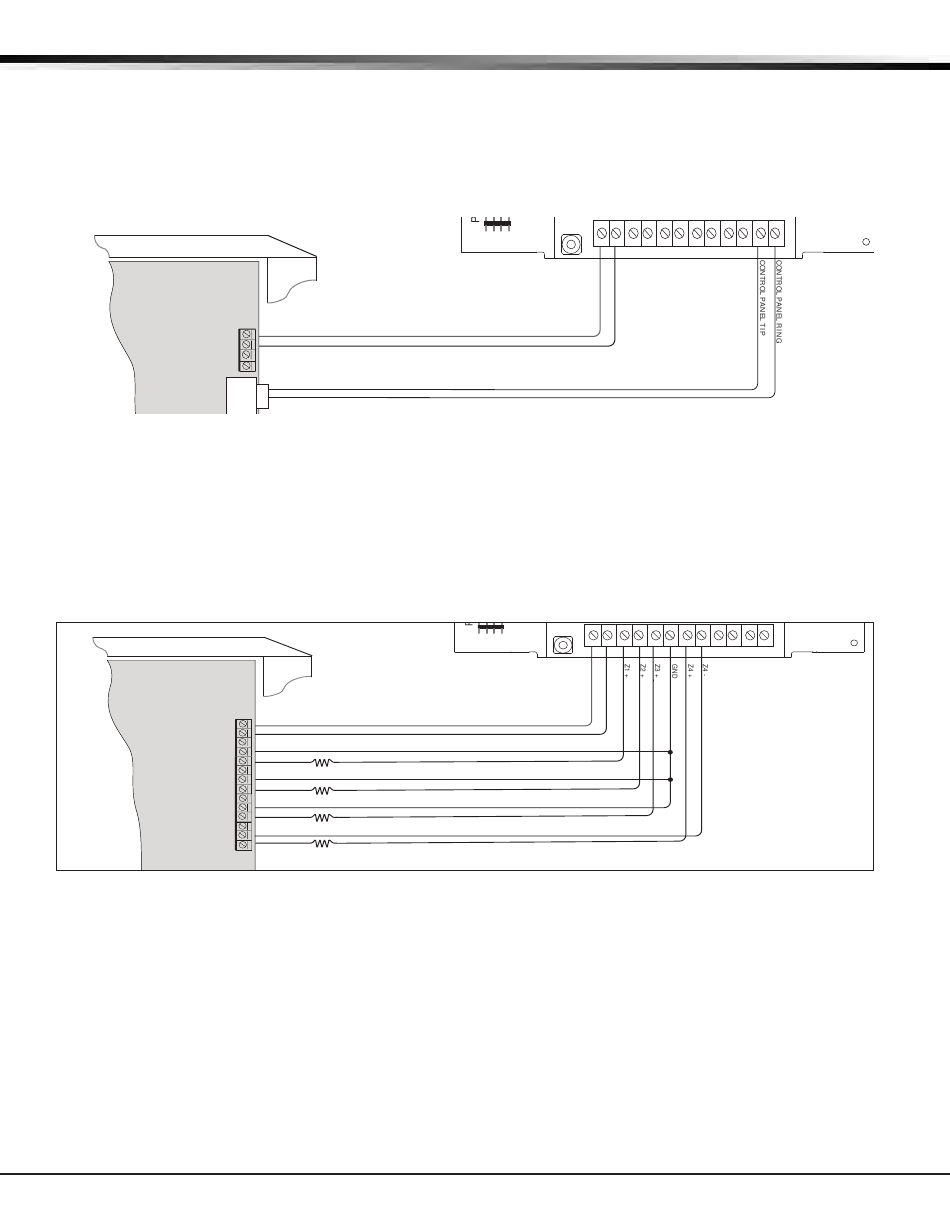

Figure 8: iComSL Series Wiring Diagram for Tip and Ring Connection
Use 18-22 AWG for
Power Supply connection
+
-
1k ohm
1k ohm
1k ohm
1k ohm
Figure 9: iComSL Series Wiring Diagram for Zones 1 - 4

Applications

MODEL
iComSLC
J8
B
R
J9
S3
+12
MODEL
iComSLC
J8
B
R
J9
S3
+12
G
iComSL Series Universal Communicator Installation and Programming Guide
S1
S2
G
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
S1
RESET
S1
S2
LOAD
S2
Z1
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
RESET
S1
LOAD
S2
