APPLICATIONS

The communicator can be used in a variety of applications.

CID Dialer Connection

Connect the tip and ring from the control panel directly to the communicator to capture Contact ID messages that are
based on the SIA communication standard DC‑05‑1999.09‑DCS. These messages are then formatted into a serial 3
message and sent to a DMP Model SCS‑1R or SCS‑VR receiver. CID Dialer Connection cannot be used when using
Zone 4 Bell Connection. Do not connect telephone company wires to the communicator. Remove any connected
telephone company wires from the control panel. See Figure 4.
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12VDC Aux. Output
Ground
BELL +
BELL -
Telephone
Jack
Connector
Zones 1‑4 Input Connection
Connect each control panel relay output to a zone on the communicator. For programming purposes, the zone
numbers are 1‑4. The following are examples of how you might use this application for a burglary or fire alarm.
Burglary
Use a normally closed output on a burglary control panel to indicate a burglary alarm. The communicator zone should
be programmed with a zone name and burglary zone type. When the output on the control panel turns on and trips
the communicator zone, a message is sent to an SCS‑1R or SCS‑VR receiver at the central station. The zone name
programming can be used to describe which control panel zone indicated a burglary. See Figure 5a.
Note: Zone 4 can only be used as a standard input zone when not programmed as zone type Auxiliary 2 (A2). See
Zone 4 Bell Connection.
Burglary
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12VDC Aux. Output
Ground
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Digital Monitoring Products
6
Use 18-22 AWG for
Power Supply connection
+
-

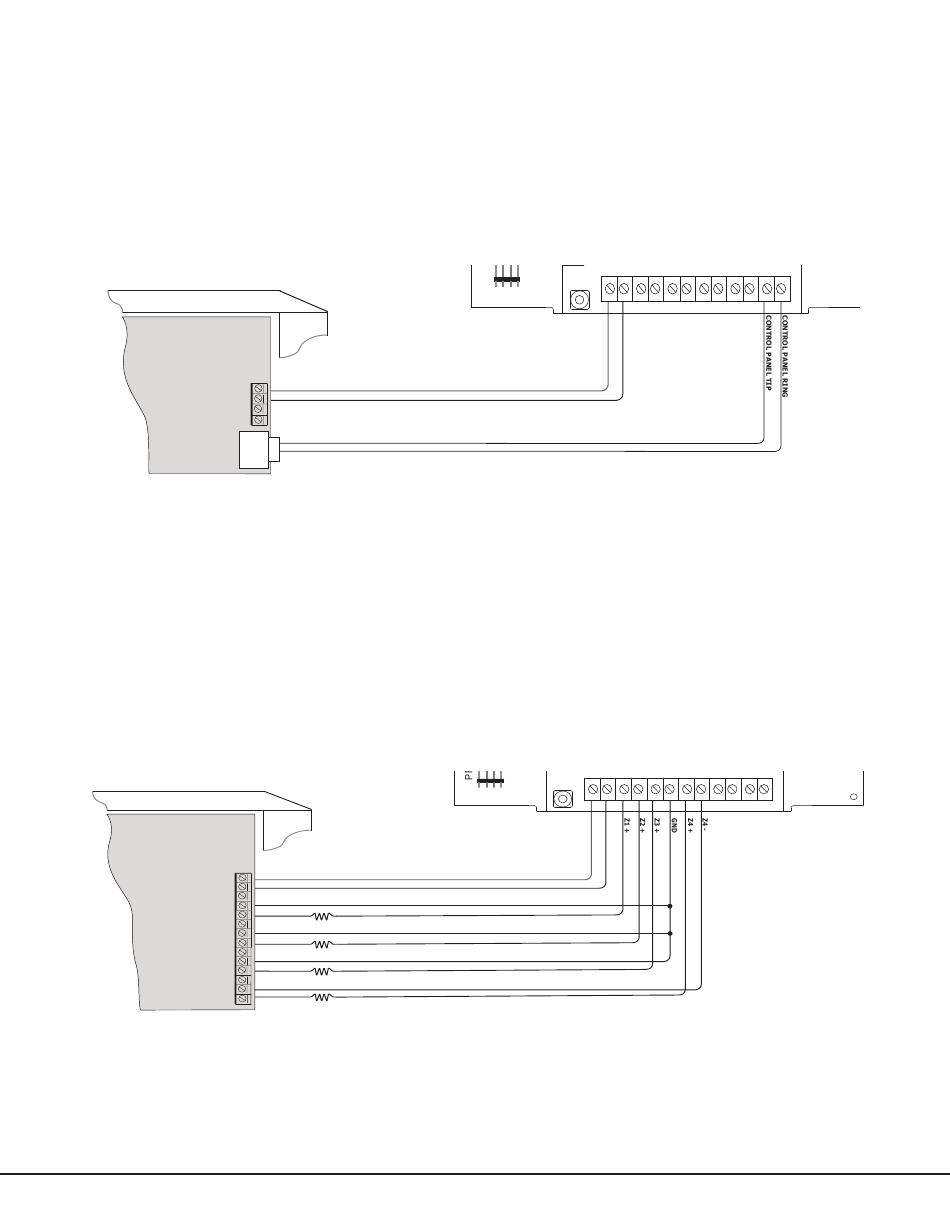

Figure 4: Wiring Diagram for Tip and Ring Connection
Use 18-22 AWG for
Power Supply connection
+
-
1k ohm
1k ohm
1k ohm
1k ohm
Figure 5a: Wiring Diagram for Burglary Zones 1‑4
MODEL
CellComSLC
J8
B R
J9
S3
+12 G
MODEL
CellComSLC
J8
B R
J9
S3
+12 G Z1 Z2
CellCom‑LTE‑V Programming and Installation Guide
S1
RESET
S1
S2
LOAD
S2
Z1 Z2 Z3 G Z4+ Z4- O1 O2 T R
S1
RESET
S1
S2
LOAD
S2
Z3 G Z4+ Z4- O1 O2 T R
