263LTE SERIES CELLULAR
COMMUNICATOR
Installation Guide

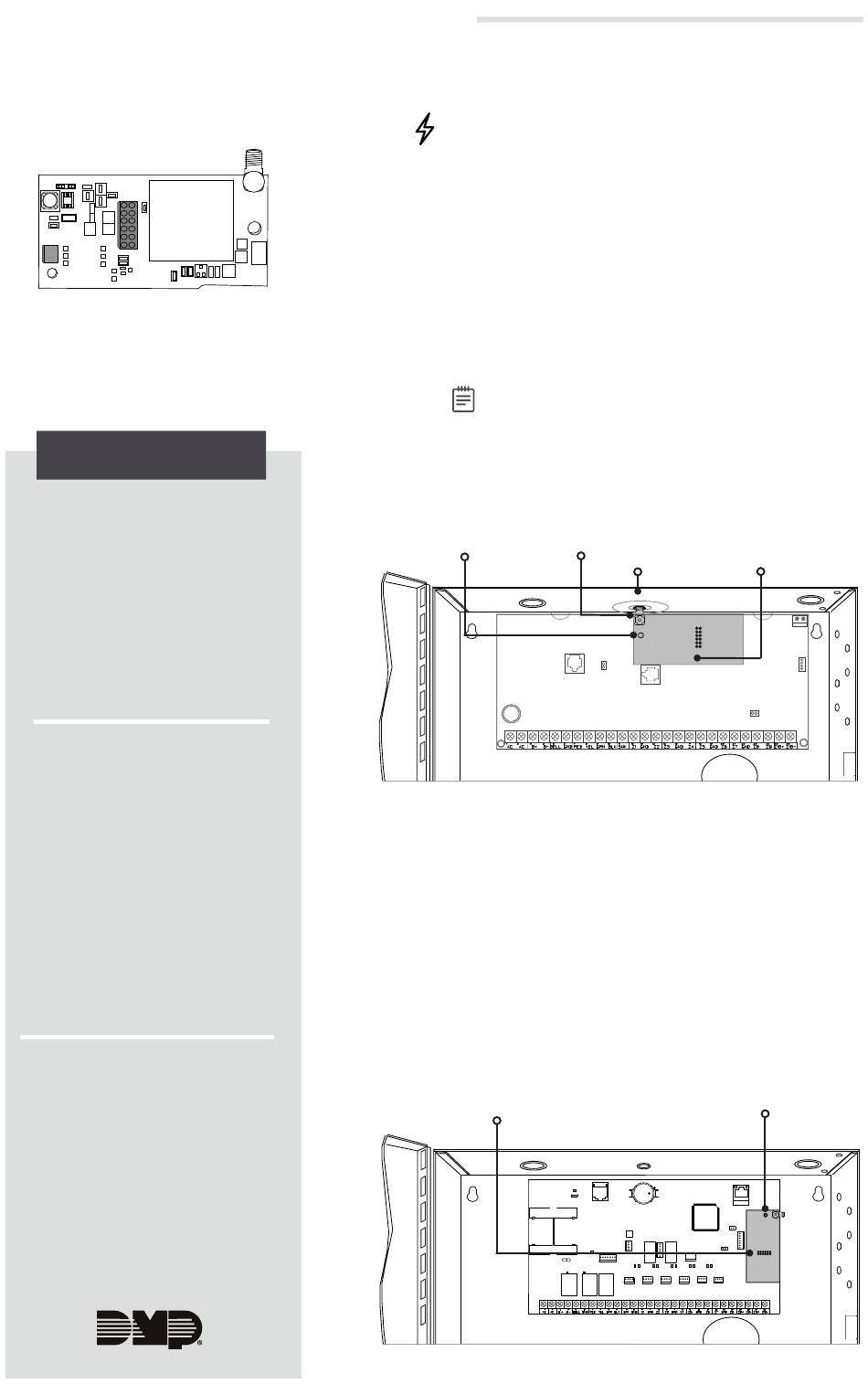

Figure 1: 263LTE
DESCRIPTION
The 263LTE Series Cellular
Communicator provides
a fully-supervised alarm
communication path over
an LTE network. The 263LTE
installs on the panel inside
the enclosure and is powered
by the panel so no additional
enclosure, power supply, or
battery back-up is needed.
Compatibility
Control panel firmware should
be updated to the following
versions when installing a
263LTE:
• XT30/XT50 Series
panels Version 212 and
higher
• XR150/XR550 Series
panels Version 212 and
higher
What is Included
• 263LTE Cellular
Communicator
• 383 antenna
• PCB standoff
• Hardware pack
1
INSTALL THE 263LTE
Caution: Touch grounded metal to discharge
static before handling the panel.
XT30/XT50 Series Panels
1. Open the panel enclosure, set the reset
jumper, and remove power from the panel.
2. Insert the included standoff into the
panel standoff hole.
3. Align the 263LTE SMA antenna connector
with the antenna hole in the top of the panel
enclosure, place one washer around the
connector, and secure it on the 12-pin cell
module connector. See Figure 2.
Note: For XT50 panels, install the included
washers between the antenna and the panel.
4. Align the 263LTE standoff hole with the
standoff already placed in the panel and
snap it into place.
Standoff and
Standoff Hole SMA Connector
Figure 2: 263LTE on an XT30/XT50 Panel
XR150/XR550 Series Panels
1. Open the panel enclosure, set the reset
jumper, and remove power from the panel.
2. Insert the included standoff into the
XR150/XR550 Series panel standoff hole.
3. Secure the 263LTE on the 12-pin cell module
connector. See Figure 3.
4. Align the 263LTE standoff hole with the
standoff already placed in the panel and
snap it into place.
Back of the
263LTE
Figure 3: 263LTE on an XR150/XR550 Panel
Back of the
263LTE
Washer (XT50 only)
Standoff and
Standoff Hole
1
2
3
4
