APPLICATIONS
Fire
Use a normally open output on a fire control panel to indicate a fire alarm. The CellComF-LTE-V Series zone
should be programmed with a Zone Name and Fire Zone Type. When the output on the control panel turns on and
trips the CellComF-LTE-V Series zone, a message will be sent to an SCS-1R or SCS-VR receiver at Central Station.
The zone name programming could be used to describe which control panel zone indicated a fire. See Figure 6.
Fire
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12VDC Aux. Output
Ground
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
3.3

Zone 4 Bell Connection

Zone 4 (Z4+ and Z4-) can be connected to the control panel bell output. This zone detects an alarm condition
on the control panel by monitoring the voltage and cadence timing of the bell output. See Zone 4 Bell Cadence
Information in the Appendix for cadence timing. To enable alarm detection operation, Zone 4 Bell Connection
must be programmed as Zone Type (A2) in Zone Information programming. The type of Cadence sent to the
communicator, the Zone Number, and type of message sent to the SCS-1R or SCS-VR receiver are listed in Table 2.
Zones 5 and 6 are automatically generated by the communicator, using Zone 4's Zone Name to send to the
Central Station. Zones 5 and 6 cannot be preprogrammed in Zone Information. CID Dialer Connection cannot be
used when using Zone 4 Bell Connection. See Figure 7.
Bell Cadence
Steady
Pulse or Temporal 3
Temporal 4
Digital Monitoring Products
6
Use 18-22 AWG for
Power Supply connection
+
-
1k ohm
1k ohm
1k ohm
1k ohm

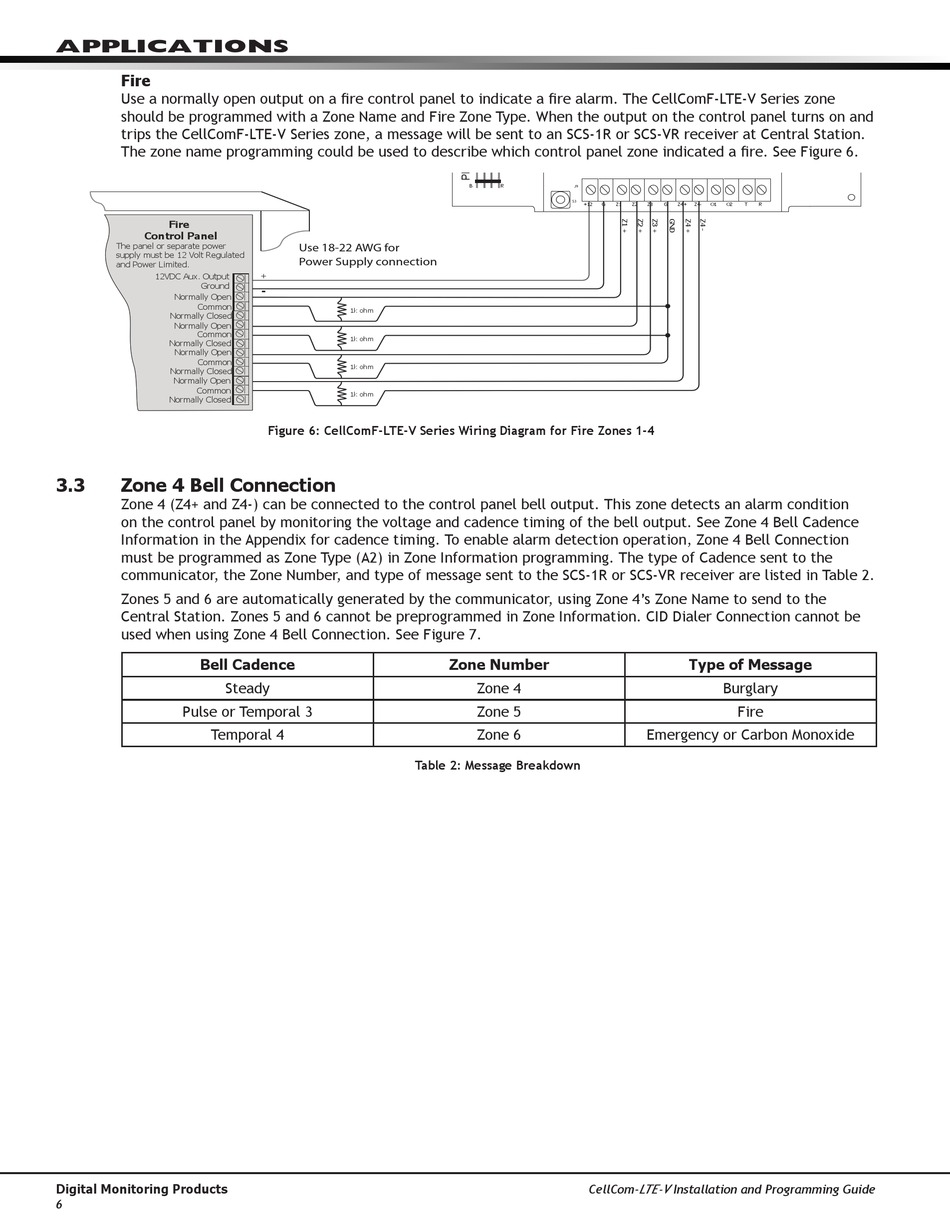

Figure 6: CellComF-LTE-V Series Wiring Diagram for Fire Zones 1-4
Table 2: Message Breakdown
MODEL
CellComSLC
J8
B
R
J9
S3
+12
G
Z1
Zone Number
Zone 4
Zone 5
Zone 6
CellCom- LTE-V Installation and Programming Guide
S1
RESET
S1
S2
LOAD
S2
Z2
Z3
G
Z4+
Z4-
O1
O2
T
R
Type of Message
Burglary
Fire
Emergency or Carbon Monoxide
