The CellComSL Series Communicator can be used in a variety of applications:
3.1

CID Dialer Connection

Directly connect the telco phone line (tip and ring) from the control panel to the CellComSL to capture Contact
ID messages that are based on the SIA communication standard DC-05-1999.09-DCS. These messages are
then formatted into a Serial 3 message and sent to a DMP Model SCS-1R or SCS-VR Receiver. Note: CID Dialer
Connection cannot be used when using Zone 4 Bell Connection.
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
Ground
BELL +
BELL -
Telephone
Jack
Connector

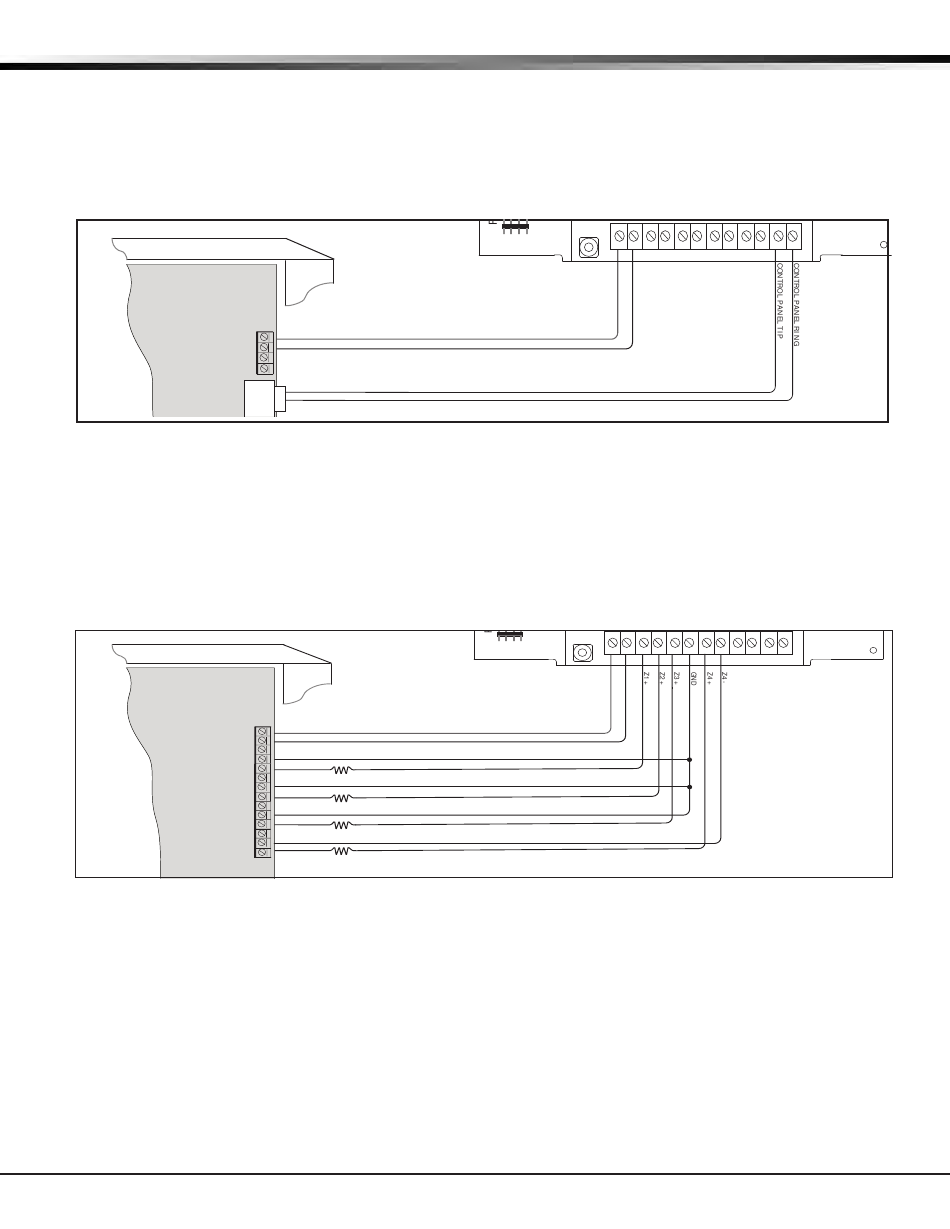

Figure 9: CellComSL Series Wiring Diagram for Tip and Ring Connection
3.2

Zones 1 - 4 Input Connection

Connect each burglary control panel relay output to a CellComSL Series Communicator zone. For programming
purposes, the zone numbers are 1 - 4. (See Figure 10 for wiring details). An example of how you might use this
application: You can use a normally closed output on the burglary control panel to indicate a burglary alarm. The
CellComSL zone should be programmed with a zone name and zone type of Burg. When the output on the control
panel turns on and trips the CellComSL zone, a message will be sent to an SCS-1R or SCS-VR receiver at Central
Station. You could use the zone name programming to describe which control panel zone indicated a burglary.
Note: Zone 4 can only be used as a standard input zone when not programmed as zone type Auxiliary 2 (A2). See
Zone 4 Bell Connection.
Control Panel
The panel or separate power
supply must be 12 Volt Regulated
and Power Limited.
12 VDC Aux. Output
Ground
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
Normally Open
Common
Normally Closed
CellComSL Series Universal Communicator Installation and Programming Guide

Applications

Use 18-22 AWG for
Power Supply connection
+
-
Use 18-22 AWG for
Power Supply connection
+
-
1k ohm
1k ohm
1k ohm
1k ohm
Figure 10: CellComSL Series Wiring Diagram for Zones 1 - 4
MODEL
CellComSLC
J8
B R
J9
S3
+12 G Z1
MODEL
CellComSLC
J8
B R
J9
S3
+12 G Z1 Z2
applIcatIons
S1
RESET
S1
S2
LOAD
S2
Z2 Z3 G Z4+ Z4- O1 O2 T R
S1
RESET
S1
S2
LOAD
S2
Z3 G Z4+ Z4- O1 O2 T R
