Accessing Programming on the Ademco/Honeywell Panel
The Installer code may be changed in Ademco/Honeywell panels. A new 4-digit Installer code may be entered.
If the Installer code is not known, use the following steps to access Programming in the Ademco/Honeywell panel
without an Installer code:
1. Power down and then power up the Ademco/Honeywell panel.
2. Within 1 minute of powering up the Ademco/Honeywell panel, simultaneously press and hold the # and *
buttons on the keypad.
3. The keypad displays Programming.
Configuring Communication with the Ademco/Honeywell Panel and the CellCom-LTE-V
The following steps describe how to configure Ademco/Honeywell control panels to communicate with the
communicator.
1. Program Position * 54: Enter 0. (No signaling delay)
2. Program Position * 55: Enter 1 (Enables communication to CellCom-LTE-V).
3. Program Position * 65: Enter 0 (To turn off Opening Reports).
4. Program Position * 66: Enter 0 (To turn off Closing Reports).
5. Program Position * 84: Enter 0 (To disable CP01 and allow remote Arm Away).
6. Program Position * 193: Enter 1 0 (Enables CellCom-LTE-V ECP Bus address).
In the event the Ademco/Honeywell panel fails to communicate with the CellCom-LTE-V, program Position * 29 to
enable the long range radio on the Ademco/Honeywell panel.
User Codes in the Ademco/Honeywell Panel
Because the communicator duplicates the panel's user codes, existing user codes in the Ademco/Honeywell
panel, including Master, must be added to the communicator. Any new user codes added to the communicator
from the Virtual Keypad App will be automatically entered in the Ademco/Honeywell panel. Master level users
cannot be added to the Ademco/Honeywell panel from the communciator.
User codes from the Ademco/Honeywell panel that are designated as Master or Partition Master should be
configured as Master codes in the communicator.
If the Ademco/Honeywell panel is armed/disarmed from a keypad, the communicator reports an opening/closing
message by user 0 to the Central Station.
When the communicator is armed by the Virtual Keypad App or VirtualKeypad.com, the Ademco/Honeywell panel
is also armed and the communicator reports an opening message. If opening and closing reports are enabled in
the Ademco/Honeywell panel a duplicate message will also be sent to the Central Station.
3.5

Using Outputs for Communication Failure

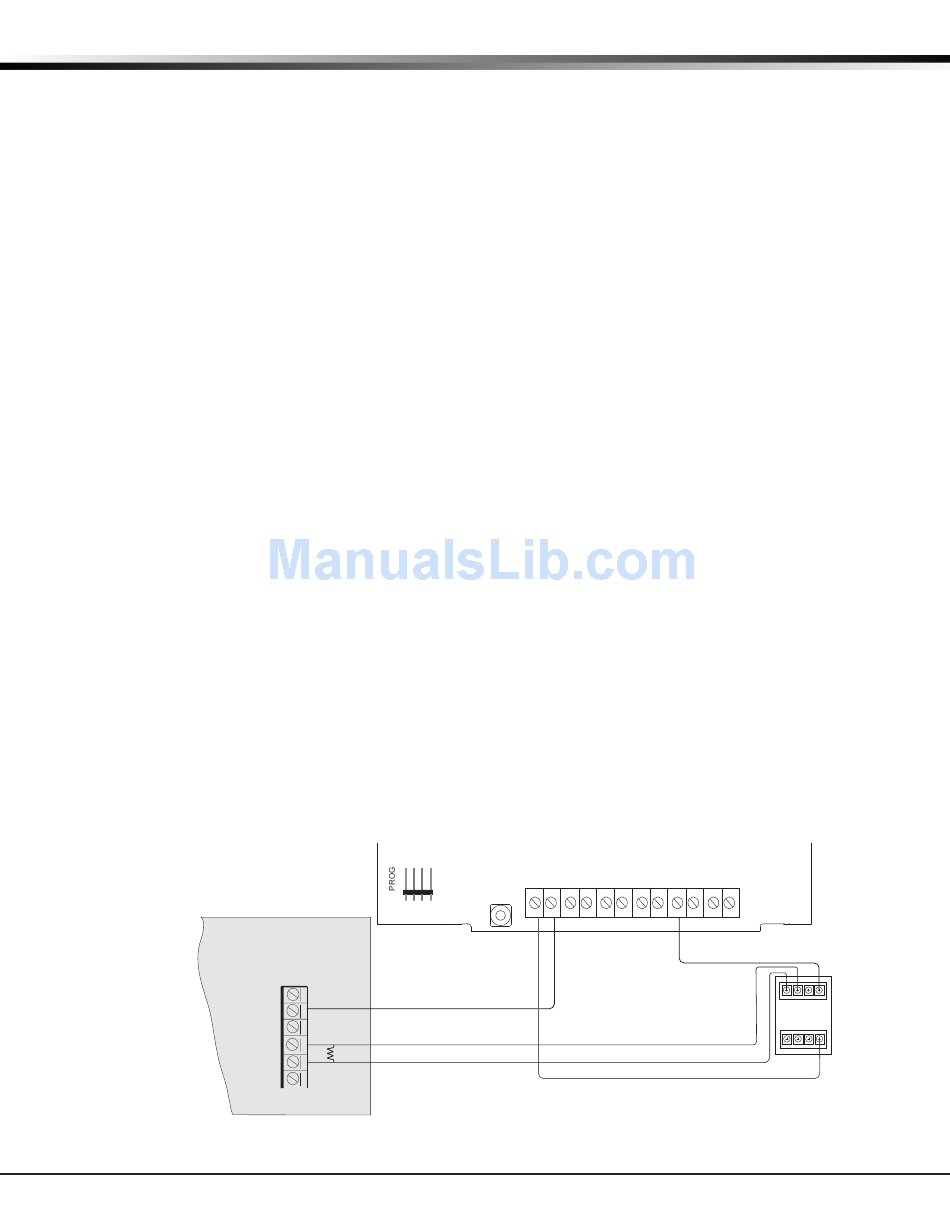

When a CellCom-LTE-V is connected as shown in Figure 9 and the programmed output turns on and trips the
control panel zone, a communication failure is indicated at the control panel notifies the user. Program the
output number (O1 or O2) in Communication Failure Output within the Ouput Options programming menu. See
Communication Failure Output for programming instructions and see Figure 9 for wiring instructions.
Control Panel
12VDC Aux. Output
Zone 1
Zone 2
CellCom -LTE-V Series Installation and Programming Guide
B R
+
-
GND
Control Panel EOL resistor
Note: Use 18-22 AWG for Power Supply connection
Figure 9: Communication Failure Zone Connection
APPLICATIONS
CellCom-LTE-V
+12 G Z1 Z2 Z3 G Z4+ Z4- O1 O2 T R
NO
NC C NEG-
Relay
Module
NO NC C POS+
Digital Monitoring Products
9
