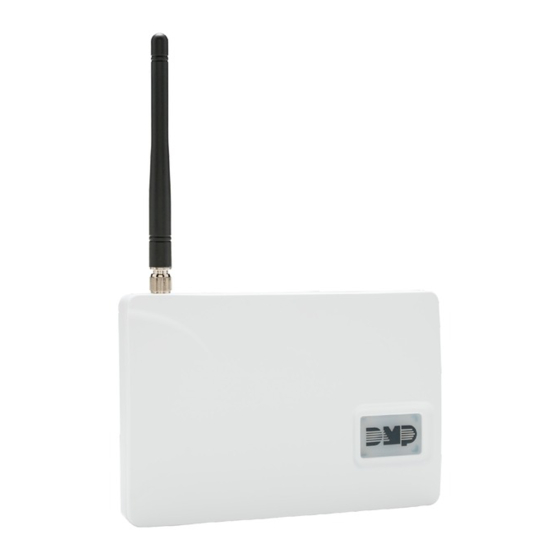

PROGRAMMING AND INSTALLATION GUIDE
CellCom™LTE-V Series Communicator
Digital Monitoring Products, Inc.
© 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CellCom LTE-V Series and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics CellCom LTE-V Series

Summary of Contents for DMP Electronics CellCom LTE-V Series

  • Page 1 PROGRAMMING AND INSTALLATION GUIDE CellCom™LTE-V Series Communicator Digital Monitoring Products, Inc. © 2019...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Initialization ..........17 About the Communicator ......1 Communication ........18 System Components .......1 System Reports ........21 Terminals...............1 System Options ........22 Programming (PROG) Connection ....2 Output Options ........24 Tamper................2 Area Information ........25 Reset Button ...............2 Zone Information ........26 Load Button ..............2 Stop ............29 Backlit Logo ..............3 Set Lockout Code ........30...

  • Page 3: About The Communicator

    ABOUT THE COMMUNICATOR The CellCom‑LTE‑V Series Universal Alarm Communicator provides a fully supervised alarm communication path for any burglary, commercial fire, or residential fire control panel. The CellCom‑LTE‑V Series can be connected to any control panel’s dialer output and used to capture Contact ID messages based on SIA DC‑05‑1999.09‑DCS. The communicator also provides four input zones and two open‑collector outputs for connection to burglary, commercial fire, or residential fire control panel outputs and zones.

  • Page 4: Programming (Prog) Connection

    Dialer Connection Directly connect the Telco phone line (tip and ring) from the control panel to the terminal R (Ring) and one into terminal T (Tip). See CID Dialer Connection. Programming (PROG) Connection A 4‑pin programming header is provided to connect a keypad when using a DMP Model 330 programming cable. This provides a quick and easy connection for programming the communicator.

  • Page 5: Backlit Logo

    Backlit Logo The backlit logo indicates the power and armed status of the communicator. Depending on the operation, the LED displays in red or green as listed in the Table 1. The LED indicates the armed state and status of the system primary power.

  • Page 6: Installation

    INSTALLATION Select a Location Install the communicator away from metal objects. Do not mount the communicator inside or on a control panel metal enclosure. Mounting the communicator on or near metal surfaces impairs cellular performance. Mount the Communicator The communicator should be mounted to a wall using the included #6 screws in the mounting holes. See Figure 1. Mount the communicator in a secure, dry place to protect the communicator from damage due to tampering or the elements.

  • Page 7: Wire The Communicator

    Wire the Communicator When connecting component wires, route all wires so they will not interfere with the tamper switch. See Figures 2 and 3 for wire routing options. Wiring Tamper +DC- Figure 2: Wire Routing Option One Tamper +DC- Wiring Connect the Antenna Place the antenna onto the SMA connector.

  • Page 8: Applications

    APPLICATIONS The communicator can be used in a variety of applications. CID Dialer Connection RESET Connect the tip and ring from the control panel directly to the communicator to capture Contact ID messages that are based on the SIA communication standard DC‑05‑1999.09‑DCS. These messages are then formatted into a serial 3 message and sent to a DMP Model SCS‑1R or SCS‑VR receiver.
  • Page 9 Fire (CellComF‑LTE‑V only) RESET Use a normally open output on a fire control panel to indicate a fire alarm. Program the zone on the communicator with a zone name and fire zone type. When the output on the control panel turns on and trips the zone, a message LOAD will be sent to an SCS‑1R or SCS‑VR receiver at the central station.

  • Page 10: Zone 4 Bell Connection

    Zone 4 Bell Connection Zone 4 (Z4+ and Z4‑) can be connected to the control panel bell output. This zone detects an alarm condition on the control panel by monitoring the voltage and cadence timing of the bell output. The communicator evaluates the first 3.5 seconds of bell cadence timing to detect the type of alarm sent.
  • Page 11 MODEL CellCom-LTE-V DMP Panel Use 18-22 AWG 12VDC Aux. Output 1k ohm for Power Supply connection Voltages above 1.4VDC are considered Alarm 1k ohm (for Supervision) ADEMCO Panel MODEL CellCom-LTE-V Use 18-22 AWG 12VDC Aux. Output for Power Supply connection 1k ohm Voltages above 1.4VDC are considered Alarm...

  • Page 12: Ademco/Honeywell Ecp Connection

    Ademco/Honeywell ECP Connection The communicator can be connected to the ECP Bus of an Ademco/Honeywell panel. See Table 3 and Figure 8 for the necessary wiring connections for CellCom‑LTE‑V to communicate with the Ademco/Honeywell ECP Bus. Communicator to ECP Wiring Communicator Ademco/Honeywell ECP Bus Keypad Power ‑DC Keypad GND...
  • Page 13 Accessing Programming on the Ademco/Honeywell Panel The installer code may be changed in Ademco/Honeywell panels and a new 4‑digit code may be entered. If the installer code is not known, use the following steps to access programming in the Ademco/Honeywell panel without an installer code: Power down and then power up the Ademco/Honeywell panel.

  • Page 14: Using Outputs For Communication Failure

    Using Outputs for Communication Failure When the programmed output turns on and trips the control panel zone, a communication failure is indicated at the control panel, notifying the user. Program the output number (O1 or O2) in communication failure output within the output options programming menu.

  • Page 15: Remote Arming And Disarming

    REMOTE ARMING AND DISARMING Virtual Keypad App Using a smartphone with the DMP Virtual Keypad App or a computer with VirtualKeypad.com, you can connect to the communicator to arm areas, turn outputs on and off, and add, edit, or remove users. See Figure 10. Figure 10: Virtual Keypad Application Using Outputs to Arm and Disarm A burglary control panel zone may be programmed as an arming zone and connected to output O1 or O2.

  • Page 16: Programming

    PROGRAMMING Before You Begin Read this guide before you begin programming. This guide allows you to quickly learn the programming options and operational capabilities of the CellCom‑LTE‑V communicator. The communicator contains all of its programming information in an on‑board processor and does not require an external programmer. In addition to this manual, you should also be familiar with the following document: •...

  • Page 17: Reset Timeout

    Reset Timeout You must enter the programmer menu within 30 minutes of resetting the communicator to avoid reset timeout. After 30 minutes, if you attempt to program by entering the 6653 (PROG) code, the keypad displays RESET PANEL. You must reset the communicator and enter the program code within the next 30 minutes. If you are already in the programmer menu and do not press any keys on the keypad for 30 minutes, the communicator exits programming.

  • Page 18: Letters And Special Characters

    Letters and Special Characters Use the number pad directions below to enter letters and special characters on a number pad or use the standard keyboard directions to enter letters and special characters on a standard keyboard. Number Pad Choose a character from Table 5. Identify the number the character correlates with and press that number on the number pad.

  • Page 19: Initialization

    INITIALIZATION INITIALIZATION INITIALIZATION This option allows you to set the communicator’s programmed memory back to the factory defaults in preparation for system programming. After selecting YES to clear a section of memory, the communicator asks if you are sure you want to clear the memory. This is a safeguard against accidently erasing part of your programming.

  • Page 20: Communication

    COMMUNICATION COMMUNICATION COMMUNICATION This option allows you to configure the communication settings for the communicator. ACCOUNT NUMBER ACCOUNT NO: Enter the account num ber sent to the receiver. The range is 1‑65535. For account numbers of four digits or less, do not enter leading zeros. XMIT DELAY: TRANSMISSION DELAY Enter the number of seconds the communicator waits before sending burglary alarm...
  • Page 21 TEST REPORT TEST RPT NO YES Choose YES to enable the recall test report from the host panel and/or communicator to be sent to this receiver. The default is YES. Choose NO to disable sending these reports to the receiver. FIRST IP ADDRESS FIRST IP ADDR Enter the first (primary) IP address where the communicator sends cell messages.
  • Page 22 FIRST IP ADDRESS FIRST IP ADDR Enter the first (primary) IP address where the communicator sends cell messages. Enter 000.000.000.000 all 12 digits and leave out the periods. For example, enter IP address 192.168.0.250 as 192168000250. The periods display automatically. FIRST IP PORT FIRST IP PORT Enter the first IP port number to be used with the first IP address.

  • Page 23: System Reports

    REMOTE OPTIONS REMOTE OPTIONS REMOTE OPTIONS This option allows you to enter the information needed for remote command/remote programming operation. RMT KEY: REMOTE KEY Enter a code of up to eight digits for use in verifying the authority of a receiver to perform a remote command/programming session.

  • Page 24: System Options

    SYSTEM OPTIONS SYSTEM OPTIONS SYSTEM OPTIONS This option allows you to select system wide parameters used in the operation of the communicator system. ENTRY DELAY 1 ENTRY DLY 1: Enter the entry delay time for all exit type zones programmed. When an armed exit type zone is faulted, the area must be disarmed before the entry delay expires or a fault will be detected.
  • Page 25 TIME CHANGES TIME CHG NO YES Choose YES to allow the communicator to request automatic time changes from the SCS‑1R or SCS‑VR receiver. The receiver must be programmed to send and receive time change updates from the host computer at least every 24 hours. The default is YES. Choose NO to disable automatic time change requests.

  • Page 26: Output Options

    OUTPUT OPTIONS OUTPUT OPTIONS OUTPUT OPTIONS This option allows you to program communicator output options. Switched ground (open collector) outputs are available using terminals O1 and O2 as the ground and your control panel for power. Select from outputs 1 or 2. CUTOFF OUTPUTS CO OUTS: ‑...

  • Page 27: Area Information

    AREA INFORMATION AREA INFORMATION AREA INFORMATION This option allows you to assign functions to the area of the communicator. All non‑24‑hour zones must be assigned to an active area. See Zone Information for more information. AREA NUMBER AREA NO: ‑ Enter the number of the area you wish to program.

  • Page 28: Zone Information

    ZONE INFORMATION ZONE INFORMATION ZONE INFORMATION This allows you to define the operation of each protection zone used in the system. ZONE NUMBER ZONE NO: ‑ The communicator has four zones to program. Enter the number of the zone you intend to program.
  • Page 29 STYLE STYLE: Specify the style for the arming/disarming operation. The default style is TGL (Toggle). Press any select area to display the style options. To view more style options, press CMD. The following is a description of the action for each option condition. TGL ARM DIS STEP TGL (Toggle): When the zone changes from normal to shorted, the programmed areas toggle between the armed or disarmed condition.
  • Page 30 OUTPUT ACTION ACTION: Enter an output number to display this option. This option allows you to assign an output action to the output. A description of the available output actions follows: STD (steady): The output is turned on and remains on until the area is disarmed, an output STD PLS MOM cutoff time expires, or the output is reset from the keypad user menu.

  • Page 31: Stop

    RECEIVER ROUTING RECEIVER ROUTING This option displays if zone type is set for Auxiliary 1 or Auxiliary 2. Press any select area to select the receiver routing for the selected zone. Select NORM to send alarm and supervisory/trouble messages from this zone to receiver 1 NORMAL or receiver 2 as programmed within the receiver in communications.

  • Page 32: Set Lockout Code

    SET LOCKOUT CODE SET LOCKOUT CODE SET LOCKOUT CODE Press CMD at the stop option to display SET LOCKOUT CODE. This feature allows you to program a special code that will be required to gain access to the communicator’s internal programmer through the keypad.

  • Page 33: Z-Wave Setup

    Z‑WAVE SETUP (CELLCOMZ‑LTE‑V ONLY) The system may include a DMP Z‑Wave controller. The Z‑Wave controller allows short range radio control of Z‑Wave devices such as lighting control modules, thermostat controls, doors, and garage doors. Z‑Wave Setup allows you to program the system to control the Z‑Wave devices. Users can control Z‑Wave devices from a smartphone, tablet, or desktop computer using the Virtual Keypad app or VirtualKeypad.com.

  • Page 34: Status Of Z-Wave Devices

    Status of Z‑Wave Devices Access the user menu. Press CMD until ZWAVE SETUP? displays. Press any select area. The keypad displays ADD LIST REMOVE. Select LIST to display DEVICE LIST and the first Z‑Wave device stored. Press CMD to advance through the list of Z‑Wave devices.

  • Page 35: Change Device Settings In Favorites

    Change Device Settings in Favorites Lights Press any select area at SETTING: and ON OFF DIM displays. Press the select area under the desired setting. For ON or OFF setting, when selected, the favorite name and the next Z‑Wave device stored in the system displays.

  • Page 36: Transfer Controller (Xfer)

    Transfer Controller (XFER) This option allows the transfer of all existing Z‑Wave devices that are currently programmed in another manufacturer’s Z‑Wave portable controller to your system. This operation will overwrite all Z‑Wave devices that are programmed in your system. This option typically occurs at the time your DMP Z‑Wave controller is installed. Initiate the transfer at the other manufacturer’s Z‑Wave portable controller after starting the transfer on the DMP keypad.

  • Page 37: Appendix

    APPENDIX This section provides additional zone and system information. False Alarm Reduction System Recently Armed report The system recently armed report (S78) is sent when a burglary zone goes into alarm within two minutes of the system being armed. Diagnostics Function The communicator contains a diagnostics function that allows you to test the integrity of the cellular communication and cellular signal.

  • Page 38: Using The 984 Command Function

    Using the 984 Command Function When not in the programming menu, the function 984 + CMD can be entered at the keypad. The remote options menu appears. This menu contains the following options: CELL The communicator allows you to perform a test on each component of the cellular communication paths. While the status list displays, enter 984 and press CMD.

  • Page 39: Z-Wave Information (Cellcomz-Lte-V Only)

    Z‑Wave Information (CellComZ‑LTE‑V only) CellComZ‑LTE‑V communicators are security enabled Z‑Wave products and are designed to be used as primary controllers. The XFER feature allows an existing 3rd party network to be transferred into the communicator. The communicator can support Z‑Wave products from different vendors and product categories. It is recommended to use DMP devices for best performance.
  • Page 40 Arming/Disarming Ademco Vista Panels The following steps describe how to configure the communicator to arm and disarm an Ademco Vista control panel from a schedule or remotely from the Virtual Keypad App, VirtualKeypad.com, or Remote Link™ using the remote arming output. Connect output 17 (far left pin on the 7 pin header located in the middle of the PCB) to zone 1 (Z1) on the communicator.
  • Page 41 Ademco Vista 20P to CellCom‑LTE‑V for Remote Arming/Disarming +DC- (USE SA4120XM-1 1 2 3 4 5 6 7 8 CABLE) SYNC BLACK DATA Ademco Vista 20P VISTA 20P ONLY RING RING (BROWN) (GRAY) (GREEN) (RED) Figure 15: Ademco Vista 20P to CellCom‑LTE‑V DMP XRSuper6 to CellCom‑LTE‑V for Remote Arming/Disarming Reset RJ SUP...
  • Page 42 Bosch Control Panel Option Bus to CellCom‑LTE‑V for Reduced Noise Disturbance CellCom-LTE-V Control Panel Option Bus Figure 17: Bosch Control Panel Option Bus to CellCom‑LTE‑V Digital Monitoring Products CellCom‑LTE‑V Programming and Installation Guide...

  • Page 43: Fcc Notice

    FCC NOTICE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons.
  • Page 44 Specifications Dimensions and Color Housing Dimensions 5.5”W x 3.75”L x 1”H CellCom-LTE-V Housing Color Primary Power Nominal 12 VDC CellCom-LTE-V, CellComZ-LTE-V White Current Draw 12 VDC: CellComF-LTE-V Standby 55 mA Certifications Alarm 102 mA (Cell Communication) Cellular CellComZ-LTE-V FCC Part 15: MIVCNN0301 Primary Power Nominal 12 VDC Current Draw 12 VDC:...
