DMP Electronics 263LTE-V5 Installation Manual

263LTE-V5 CELLULAR
COMMUNICATOR
Installation Guide

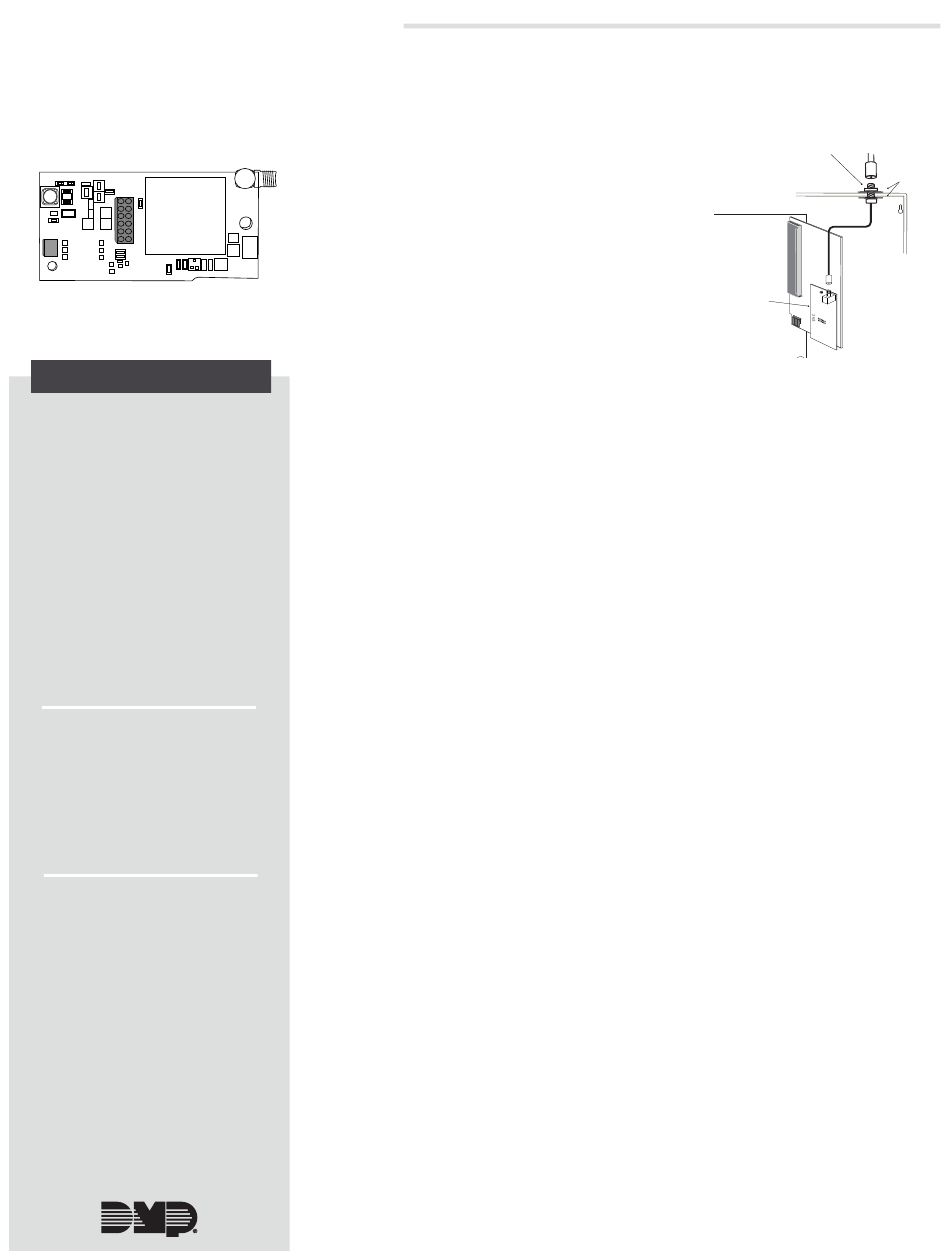

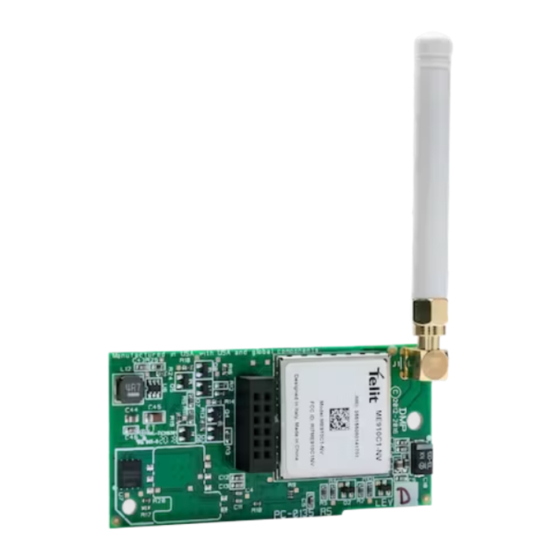

Figure 1: 263LTE-V5
DESCRIPTION
The 263LTE-V5 Cellular
Communicator provides
a fully-supervised alarm
communication path over
the Verizon LTE network. The
263LTE-V5 installs on the panel
inside the enclosure and is
powered by the panel so no
additional enclosure, power
supply, or battery back-up is
needed.
With the 263LTE-V5, Verizon
LTE does not support
MyAccess™ text messaging.
Compatibility
Control panel firmware should be
updated to the following version
when installing a 263LTE-V5:
• XR100/XR500 Series panels
with Version 213 or higher
What is Included?
• 263LTE-V5 Cellular
Communicator
• 383 Antenna
• PCB standoff
1
INSTALL THE 263LTE-V5
XR100/XR500 Series Panel
1. Remove all power from the panel.
2. Disconnect the coax cable.
3. Remove the cell card from the 464
interface card.
4. Install the new cell card onto the 464
interface card.
5. Reconnect the coax cable.
6. Remove old antenna.
7. Install the new antenna.
8. Reconnect power.
2
ACTIVATE THE 263LTE-V5
Cellular service is required before you can use the 263LTE-V5 for signal
transmission. The 263LTE-V5 comes ready for activation with SecureCom™
Wireless, LLC. Use the Dealer Admin™ site (DMPDealerAdmin.com), the Tech
APP™, Remote Link™, or call DMP Customer Service (1-866-266-2826) to activate
the 263LTE-V5.
Dealer Admin Activation
1. Navigate to the Dealer Admin site (DMPDealerAdmin.com).
2. Click Customers in the right-side menu and select a customer.
3. Click Add System.
4. Enter a System Name.
5. Select either Cellular or EASYconnect + Cell Backup in the Connection
Type field.
6. Enter the SIM number found on the 263LTE-V5 label and click Get Status.
7. Enter the Account Number.
8. Select a Rate Plan for the 263LTE-V5.
Click Activate Cellular Device.
9.
Tech APP Activation
1. Navigate to the Tech APP.
2. Tap Find a Customer then search for a customer.
3. Tap Add a System.
Enter a System Name.
4.
Scan or enter the Serial #.
5.
6. Select either Cellular or EASYconnect + Cell Backup in the Connection
Type field.
Enter the Account Number.
7.
Enter the SIM Number found on the 263LTE-V5 label then tap Get SIM
8.
Status.
9. Select a Rate Plan for the 263LTE-V5.
10. Tap Activate Cellular Device.
Remote Link Activation
1. Navigate to Remote Link and select a panel.
2. Select Program in the top menu and select Communications from the
drop-down menu.
3. Select Cellular Network as the Comunication Type and click Activate.
4. Select SIM as the SIM Type.
Enter the SIM number found on the 263LTE-V5 label and click Activate.
5.
6. Select a Rate Plan for the 263LTE-V5 and click Activate.
Nut
XR100/XR500
Model 381-2
Panel
Coax Cable
464-263
from 263
263
Cell Module
Figure 2: 464-263LTE-V5 Wiring
Z5 GND Z6 Z7 GND Z8 Z9+ Z9- Z10+ Z10-
20 22 23 25 26 27 28
18 19 21 24
Antenna
Connector
Washers
