AudioConfigSuite (Audio Diagnostics) Application

The AudioConfigSuite will allow a user to configure the audio section of the <vdrparams.ini> file.
The audio information can also be manually set-up and adjusted. The Detection Threshold must
be manually configured.
The Audio Diagnostics (ADi) application is used to capture and configure audio recording from
bridge microphones, externally mounted microphones, and line level (VHF radio) sources. It
exists on the DMM for the purpose of configuring the [AUDIO] portion of the <vdrparams.ini> file.
In all cases the Record application MUST be stopped and closed when using
the AudioConfigSuite.
This application must be run from D drive and not from the <C:VDRApps> folder to avoid
Windows Virtual Memory Resource errors.
To run the Audio Configuration Suite in D:drive, go to Start/All Programs/Utilities and right-
click AudioConfigSuite and select Properties and ensure that the Start In box shows < D:
>
8.4.4

Audio Config Suite Operation: Version 4.2.0.4

8.4.4.1
The <AudioConfigSuite.exe> file is located in the following path Start/All Programs/Utilities. The
Audio Module IO Configuration window will open when the when the AudioConfigSuite is started.
See Figure 8-17 - Audio Configuration panel, below.
The <AudioConfigSuite.exe> file can also be run on the service PC. To run the Audio
Configuration Suite on the service PC place the following files in a new folder:
<AudioConfigSuite.exe>
<RutAudio.dll>
<RutACS.dll>
VDR-100G3/G3S Installation Manual
Chapter 8: Audio Module, Rev 1.1

Startup

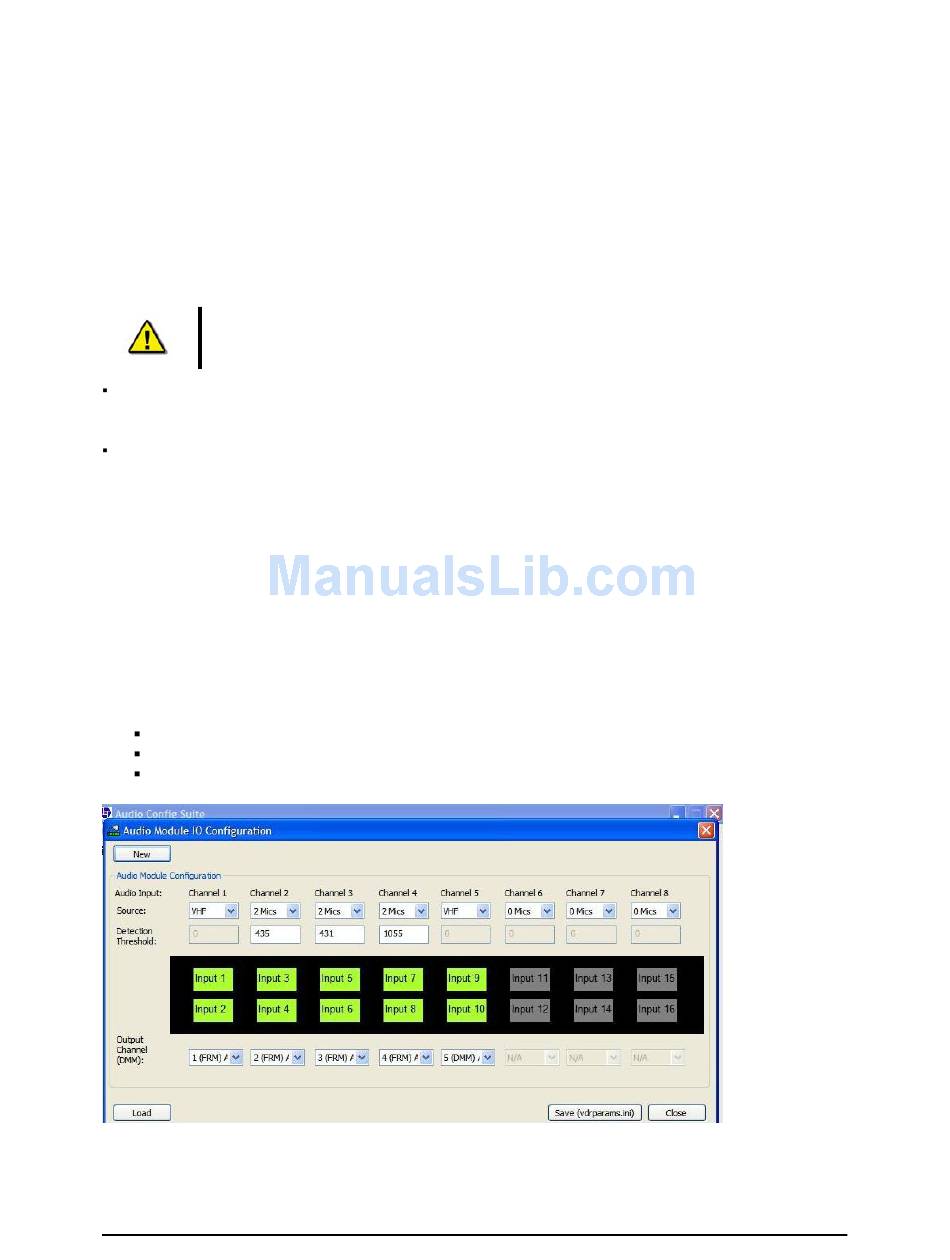

Figure 8-17 - Audio Configuration panel
