Layout of the DPU

4.2

Ethernet Data

The Data Management Module (DMM) supports 5 Ethernet connections for the transfer of data to
and from the DMM. The physical connection of these Ethernet ports is either by a crossover or
straight thru connection.
4.2.1

DMM / Data Module IP Address

The IP Address for each of the data modules and associated DMM ports is listed below.
VDR-100G3/G3S Installation Manual
Chapter 4: Data Processing Unit, Rev. 1.2

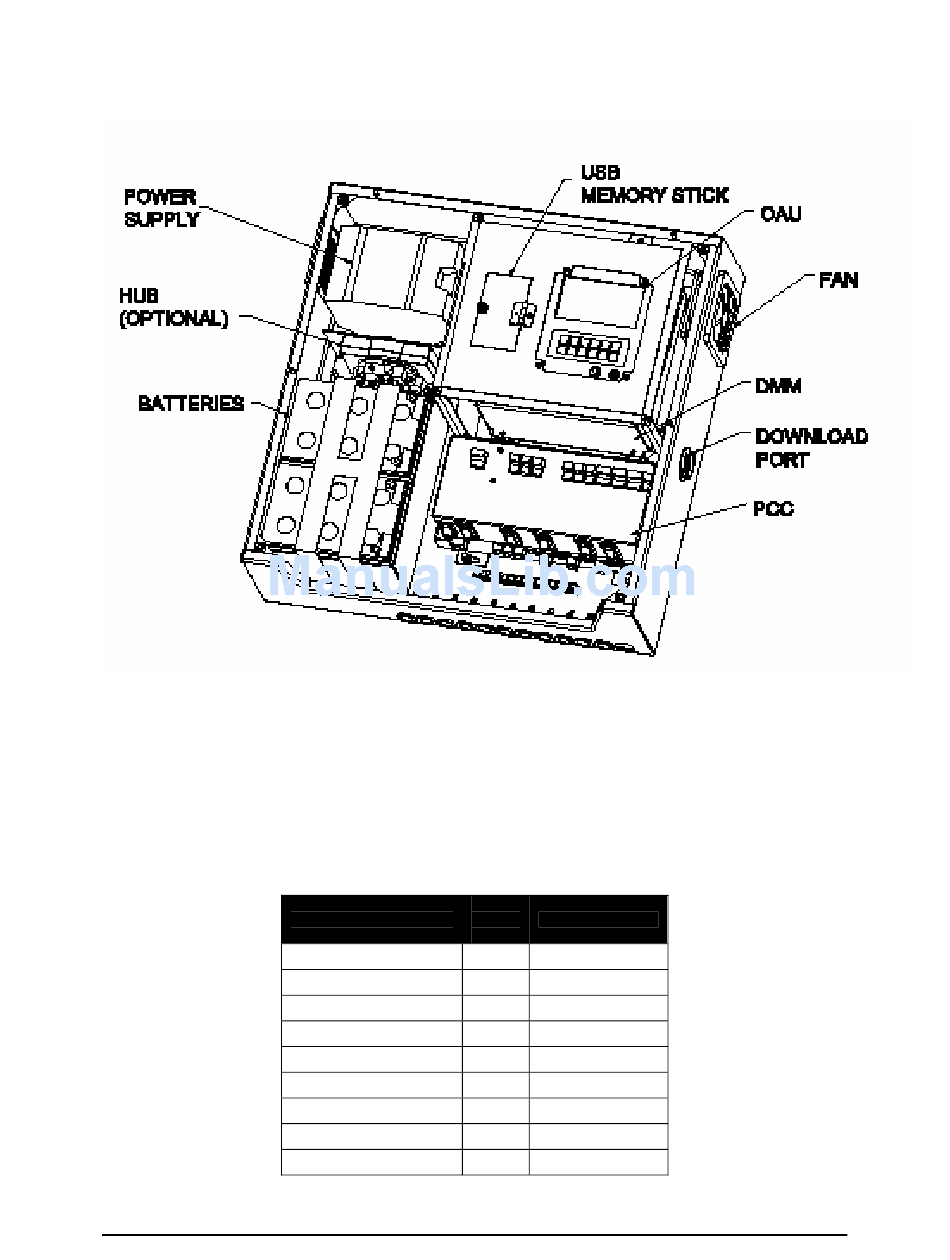

Table 4-1 - Internal layout of the DPU
Port / Module Name
DMM Download Port
Download PC
DMM Video Port
Video Module
DMM NMEA Port
DMM FRM Port
FRM
DMM Audio Port
Audio Module
4-2
Port
Module IP Address
#
(5)
200.200.200.200
200.200.200.XXX
(3)
192.168.199.1
192.168.199.228
(4)
192.168.199.25
(2)
192.168.0.189
192.168.0.2
(1)
192.168.200.189
192.168.200.228
