12.2.1.4
Testing the Rutter FRM (RUT-02447) Fixed Capsule Physical
Connection
1. Confirm the cable connections between the Rutter FRM (RUT-02447) Fixed Capsule and
the VDR;
2. Open the Command Prompt from: Start menu>All Programs>Accessories>Command
Prompt on the VDR;
3. The Command Prompt window will open;
4. At the C:\> prompt, type ping 192.168.0.50;
5. Select the Enter button on the keyboard;
6. Observe that 4 replies are received from the Rutter FRM (RUT-02447) Fixed Capsule.
7. If the request times out, check Rutter FRM (RUT-02447) Fixed Capsule cable
connections; and see paragraph 12.2.1.5

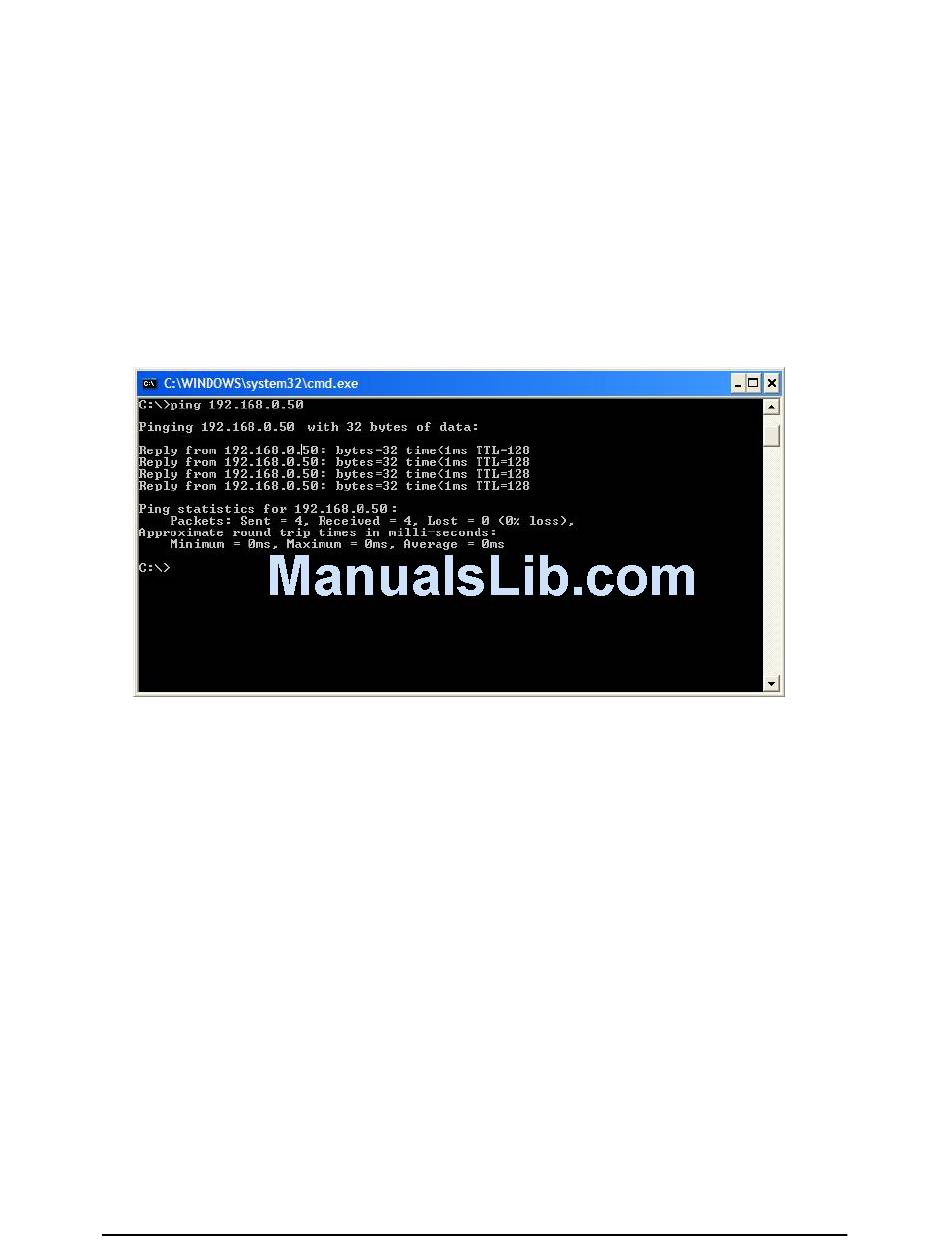

Figure 12–6 - Pinging the Rutter FRM (RUT-02447) Fixed Capsule
8. Once communications has been verified, close the Command Prompt window and go to
Section 12.2.1.6. If communications cannot be verified go to Section 12.2.1.5.
12.2.1.5
How to Check the FRM Ethernet port IP Address for Rutter FRM (RUT-
02447) Fixed Capsule
The default IP address of the Rutter FRM (RUT-02447) Fixed Capsule is 192.168.0.50. The
VDR's factory configuration for the FRM Ethernet port IP address is 192.168.0.189. If this
address is not correctly configured, communication between the VDR and the Rutter FRM (RUT-
02447) Fixed Capsule will not be possible. The FRM port must be in the same range as the
Rutter FRM (RUT-02447) Fixed Capsule, with the last segment different than the VDR (as shown
below.). To check and/or change the IP segment of the VDR's FRM Ethernet port:
1. Click the Start menu;
2. Open the Control Panel;
3. Double-click the Network Connections icon;
4. Right-click on the SFRM icon;
5. Select Properties from the pop-up menu.
6. In the Local Area Connection Properties window, highlight "Internet Protocol (TCP/IP)";
7. Click the "Properties" button directly under the available options;
8. The "Internet Protocol (TCP/IP) Properties" window will open;
9. Select the "Use the following IP address" radio button;
VDR-100G3/G3S Installation Manual
Chapter 12: Final Recording Medium Setup, Rev. 1.5
12 - 8
10/12/2008
