7. To choose a directory to which the data sets will be downloaded, other than the one listed
under 'Destination', press the "Change Destination" button and follow standard Windows
procedure for selecting a desired directory.
8. Once the duration and destination are correct, press 'Start Download'.
9. Enter a password and press 'OK'.
10. A "Download Settings" dialog will appear providing confirmation information for the data
set to be downloaded. If all information is correct, press 'OK' to begin the download.
A4.4.3 Download an Archived Data Set
Complete the following steps to download 1 of multiple archived data sets from the DMM's
internal hard drive:
1. Select 'Download Archived Dataset' from the 'Download Controls' menu.
2. A download progress window will appear indicating that the application is receiving
information from the DMM. This operation may take several minutes to complete.
3. In the subsequent 'Download Archived Datasets' window, all available archived data sets
will be visible. Each data set shows the date it was initially archived, file size, and start
and end time.
VDR-100G3/G3S Installation Manual
Appendix 4: Data Retrieval, Rev. 1.1

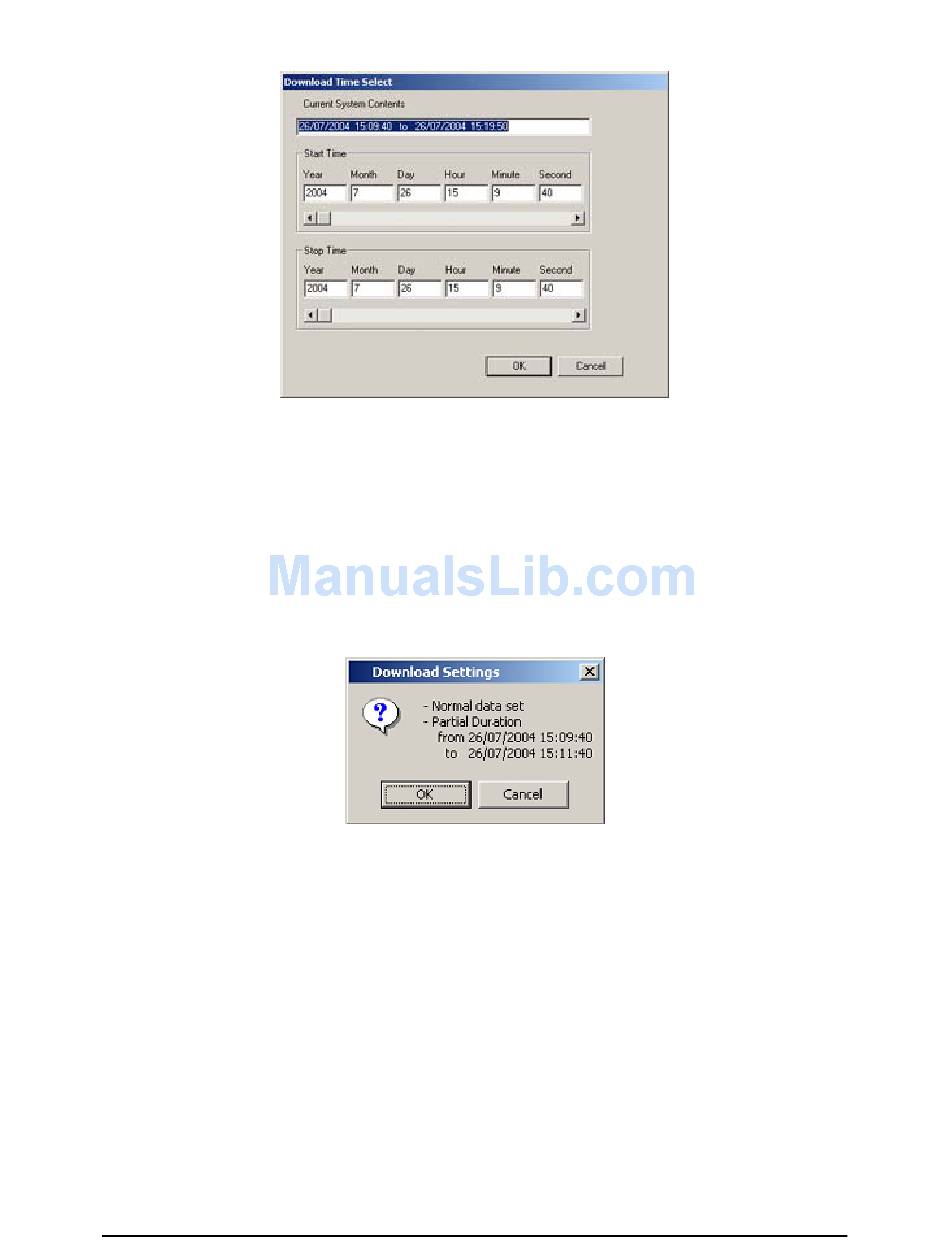

Figure A4 - 8- Partial Download Window
Figure A4 - 9 - Confirm Download Settings
5
06/10/2008
