A2.4.13 Memory Partition Information for the L3 HVR
Note! This section is only visible for the L3 HVR unit. If another FRM type is in
use, the user can skip the following three entries.
Total Bytes in Crash Module / Number of Bytes per Granule / Currently Unassigned
Granules
To access this information, follow the instructions provided below:
1. Open an Internet Explorer browser on the VDR desktop;
2. In the address bar at the top of the browser interface type 192.168.0.2/hvrhome.htm and
press the Enter key;
3. Select the "Flash Setup" button located on the left side of the screen; and
4. Enter L3HVR as the password.
A2.4.14 Unit Allocations and Stream Names
Enter the Number of Granules and Stream Name for each applicable position (see Figure A2- 6
- Unit Allocations and Stream Names below for an example of information added for this section).
For the L3 HVR unit this information can be obtained using the steps provided in the Memory
Partition Information section above.
A2.4.15 Other Comments
Enter any additional comments relevant to the secondary storage aspect of the
configuration/installation.
VDR-100G3/G3S Installation Manual
Appendix 2: System Configuration File, Rev. 1.1

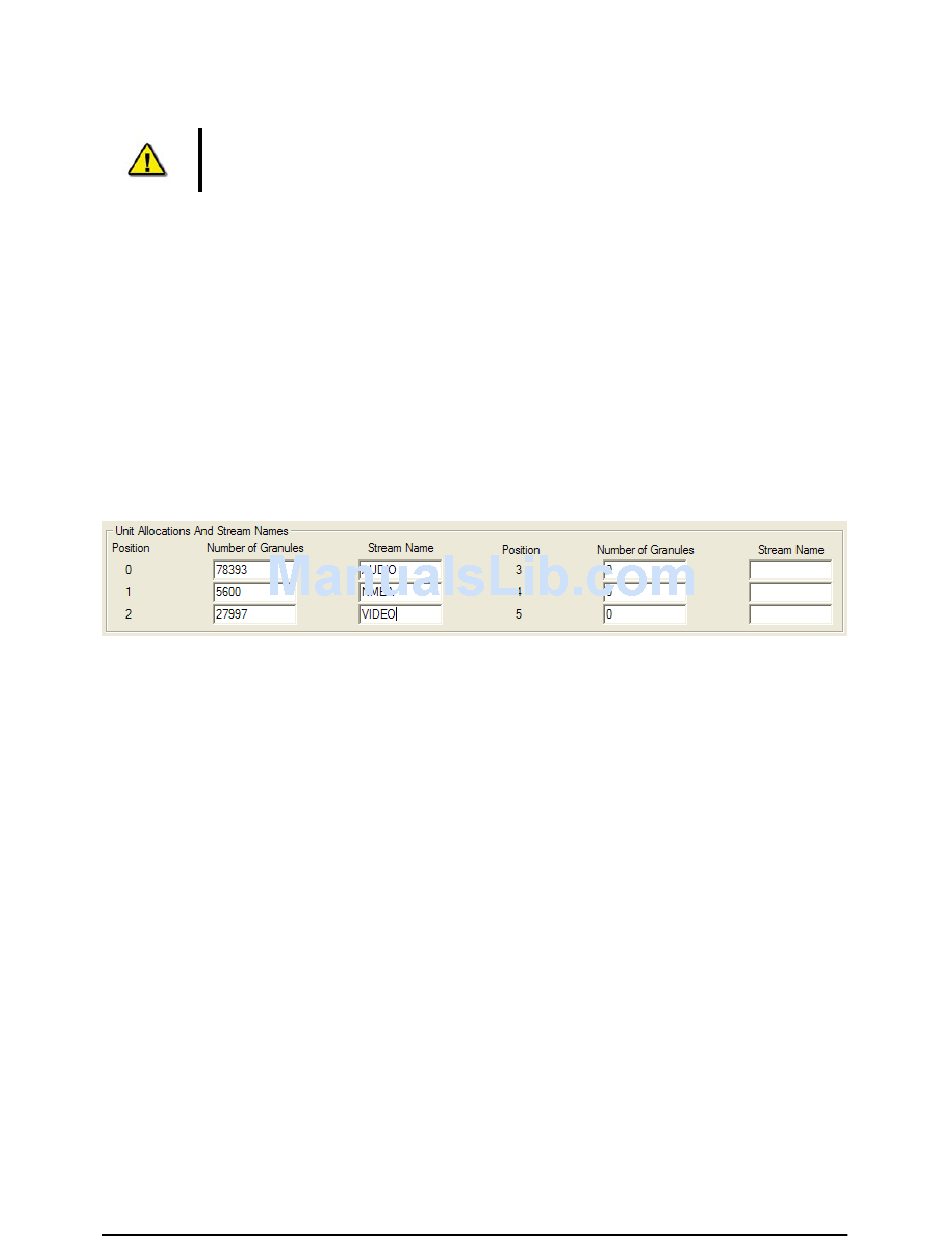

Figure A2- 6 - Unit Allocations and Stream Names
