A4.4.4 Download All Current, Secured And Archived Data Sets
The VDR Download Application allows the user to select the option to download all Current,
Secured and Archived data sets from the G3/G3S in one operation. To achieve this, the
destination drive for the data must have sufficient capacity and free drive space to accommodate
up to 160GB of VDR data. If there is insufficient available drive space, the operation will terminate
before all data is copied off of the VDR.
NOTE: As this is can be a large copy operation (up to 160 GB), please allow sufficient time for the
operation to complete. In the case of 160GB of data to copy, it could take up to 2.5 to 3 hours to
complete.
Complete the following steps to download all of the current, secured and archived data sets from
the DMM's internal hard drive:
1. Select 'Download All secured And Archived Datasets' from the 'Download Controls'
menu.
2. A download progress window will appear indicating that the application is receiving
information from the DMM. This operation may take several minutes to complete. When
complete, the VDR Download Application will display the total number of Secured and
Archived data sets available for download in the main log window.

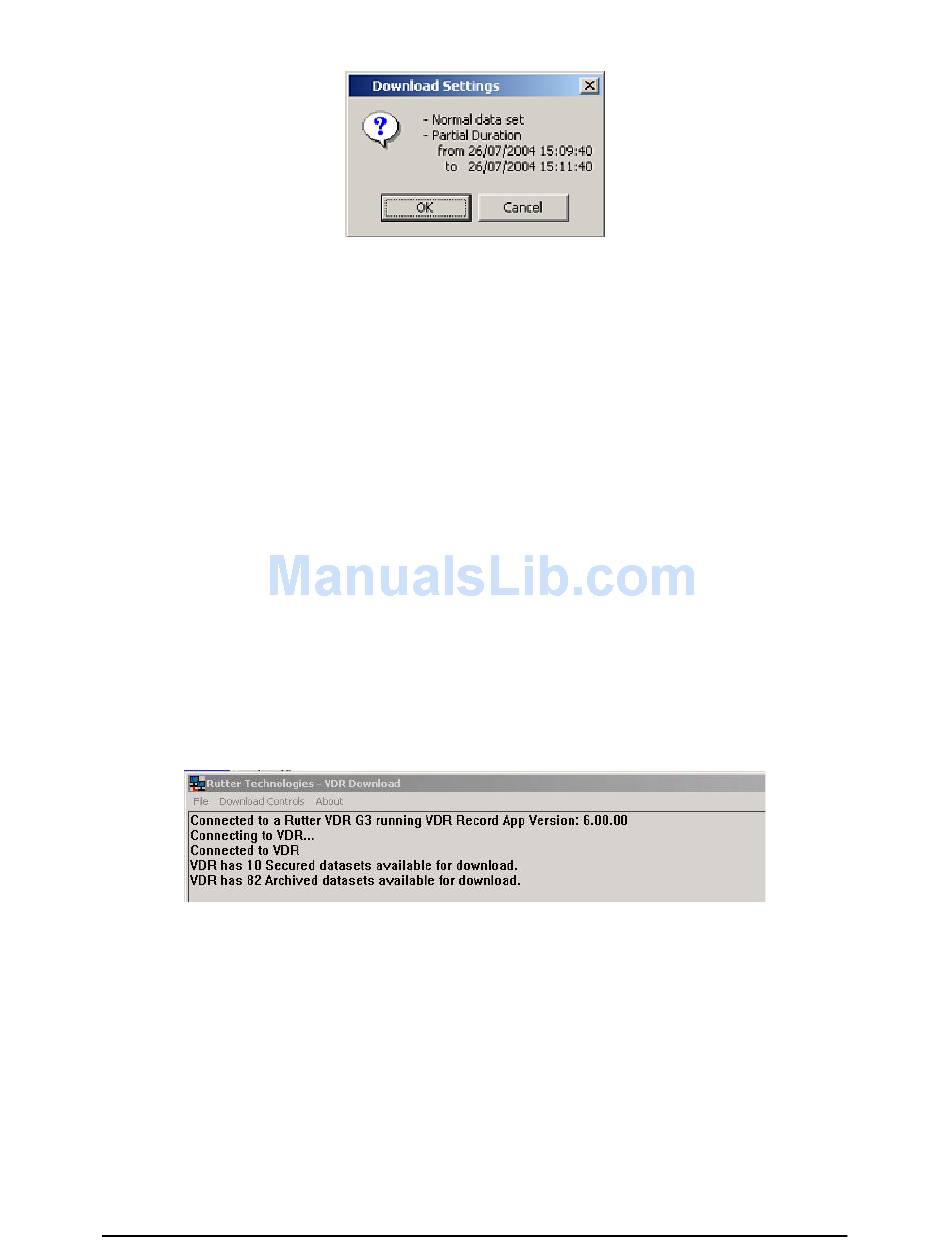

Figure A4 - 13 - Download All Secured and Archived Data Sets
3. To choose a directory to which the data sets will be downloaded, other than the one listed
under 'Destination', press the "Change Destination" button and follow standard Windows
procedure for selecting a desired directory.
4. Once the destination is correct, press 'Start Download'.
5. Enter a password and press 'OK' to begin the download.
The download begins by downloading all available Secured data sets, in order of date and
time secured, beginning with the oldest and ending with the most recent. Following the
download of the most recent Secured data set, the download of all available Archived data
VDR-100G3/G3S Installation Manual
Appendix 4: Data Retrieval, Rev. 1.1
Figure A4 - 12 - Confirm Download Settings
