9.5.2.1

Video Capture

The Video Configuration Utility automatically attempts to detect the video input on channel 1. To
change the channel selection, click the radio button next to the number of the desired channel.
To create settings for a new channel click the New Video Channel button. If the channel uses
Composite Syncs, select the "Composite" check box and use the associated radio buttons to
indicate whether the composite sync is:
On a separate TTL output; or
SOG, Encoded in the input on the video channel.
To reset all settings for the current channel, click the "Restore Default Settings" button. If the auto
detection is successful the image will be displayed in the Capture area, and the Auto-Detection
Status configuration data fields will display the appropriate information.
If the auto detection fails, the capture must be manually configured.
1. Select a different Configuration Mode from the Configuration Mode drop list;
2. If you know the values of VSYNC and HSYNC, select Manual Configuration mode (The
fail safe modes may help if you are unsure of the VSYNC and HSYNC rates.);
3. Enter the VSYNC and HSYNC values;
4. Press Validate.
5. To load from a previous <VidchanX.ini> file,
a. Select Manual Configuration mode; and
b. Press the "Load from INI button" and select the desired file.
Once an initial image has been captured (either through Auto-Detection or Manual Configuration
mode), go to Section 9.5.2.2: Horizontal Polarization to continue setup.
VDR-100G3/G3S Installation Manual
Chapter 9: Video Module, Rev. 1.2

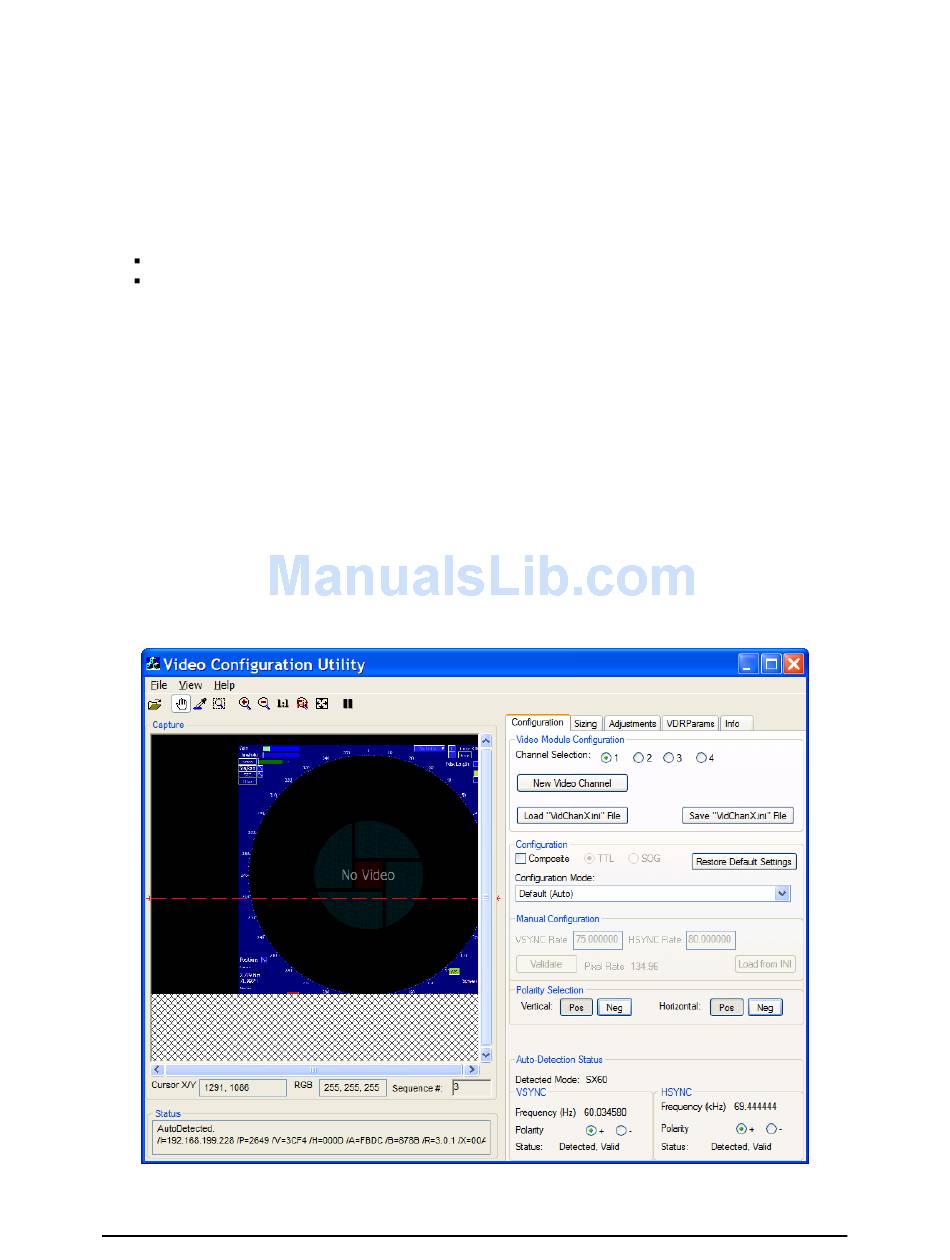

Figure 9-5 - Successful auto detection
