A dialog window will appear allowing the user to select the applicable file. Once the file has been
selected the Playback application will prompt the user as seen in Figure 8 – Restart Warning
below. Clicking OK will restart VDR Playback and automatically load the selected configuration
file. If desired, the configuration file can be changed at any time, simply select the File | Configure
menu item, as above, and choose an alternative file.
With the VDR-100G3, the ship's configuration file will accompany every available data set. When
a data set is selected the configuration file will be automatically reloaded as necessary.
A5.3 Choosing Data for Playback
Follow the instructions below to select a data set for playback:
1. From the File menu choose Select Data Set. A dialog box will appear.
2. Locate the folder containing the downloaded data. The Playback application will
automatically search for and select the <AudioDir.vdr> index file as seen below. Click
Open to proceed.
The .vdr files accompany every download and act as an "index" to the actual data files. These
files are named according to the data items they reference: AudioDir.vdr for audio, NMEADir.vdr
for NMEA data and VideoDir.vdr for video data. Select All Files from the Files of Type drop
down box to view all .vdr index files. Selecting any one of these three files will open a data set for
playback.
Note! If the download directory does not display 3 files with extensions of ".vdr",
it is possible that the Microsoft operating system is treating them as hidden files.
VDR-100G3/G3S Installation Manual
Appendix 5: Playback Software, Rev. 1.1

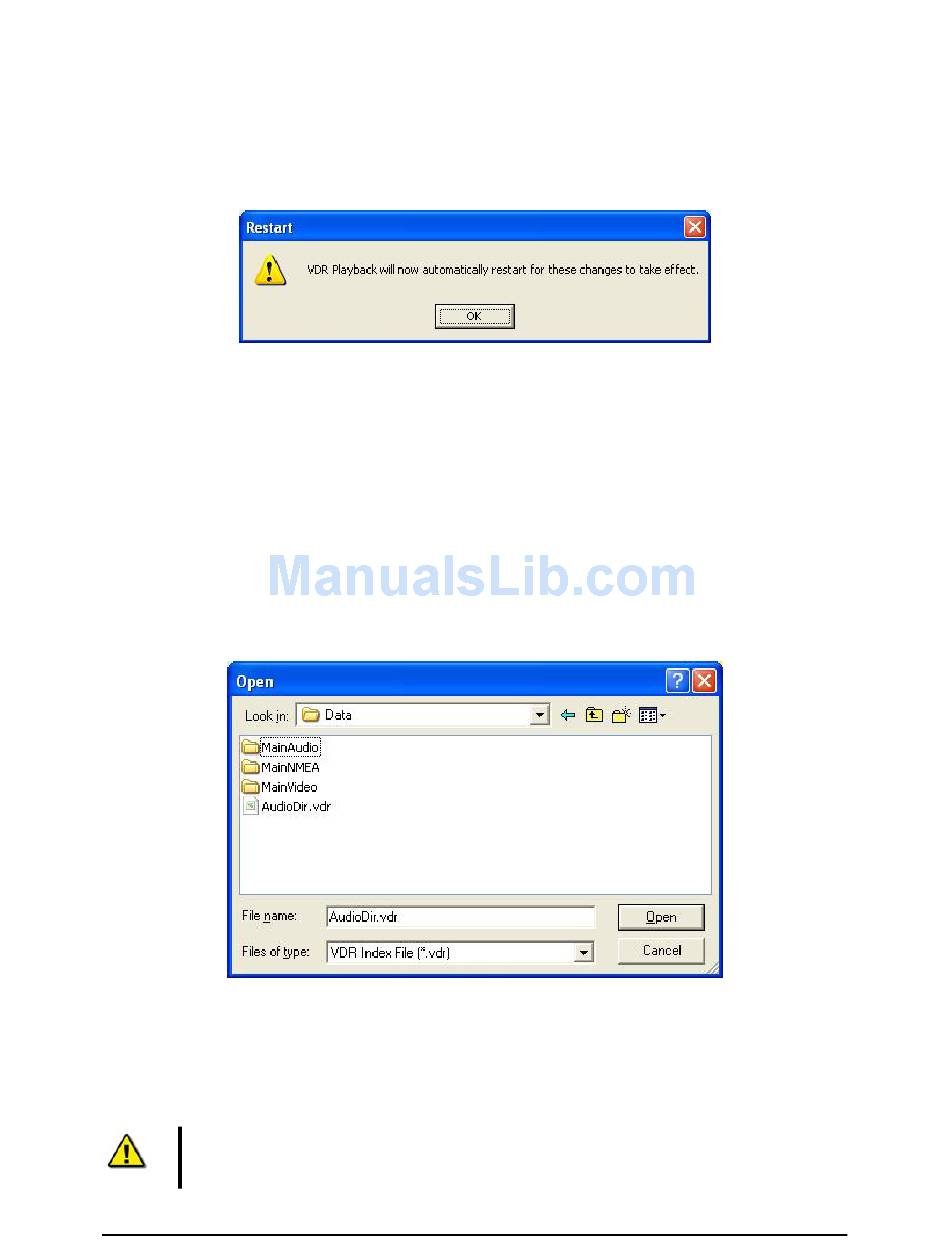

Figure 8 - Restart Warning
Figure 9 - Locating downloaded data
