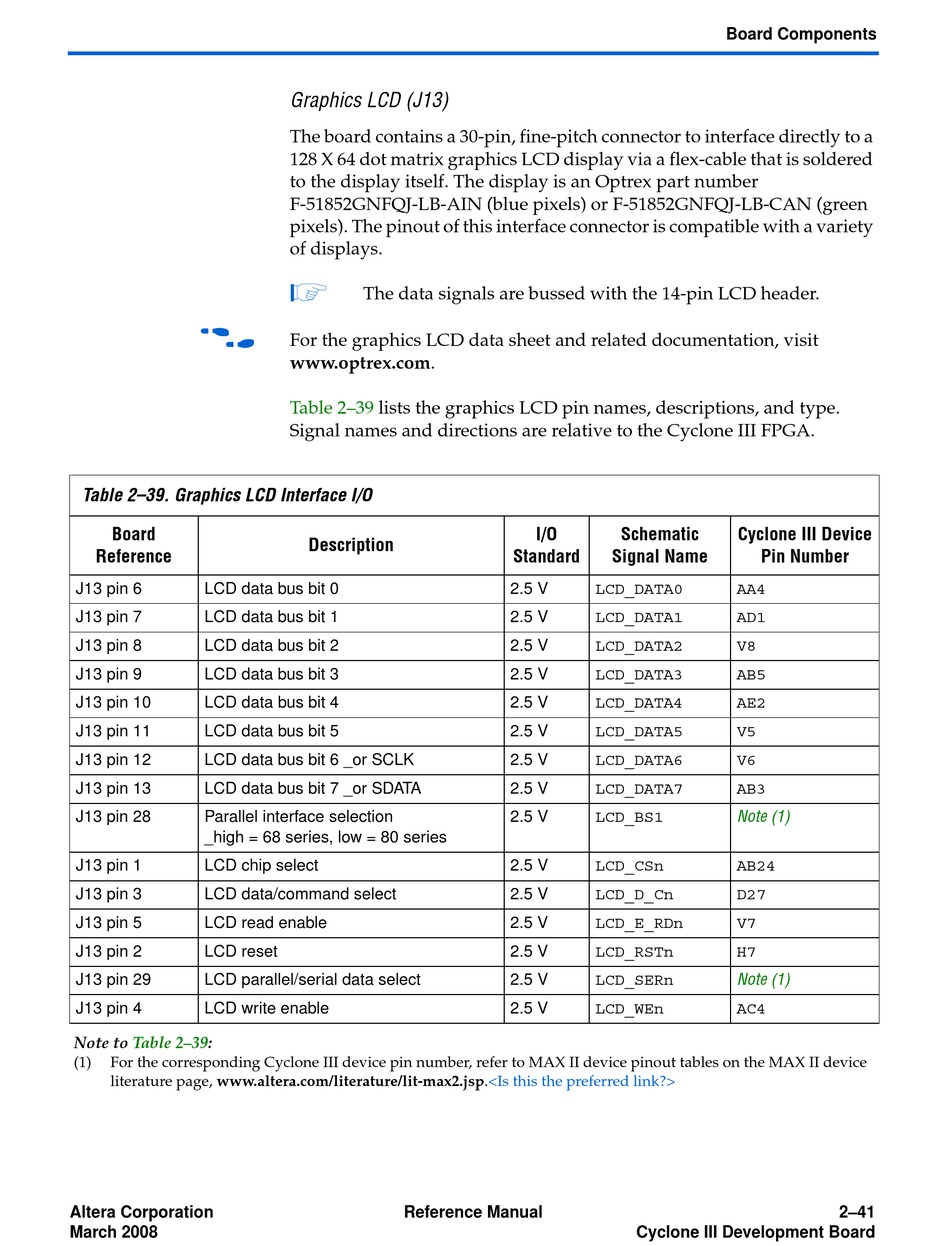

Graphics LCD (J13)

The board contains a 30-pin, fine-pitch connector to interface directly to a
128 X 64 dot matrix graphics LCD display via a flex-cable that is soldered
to the display itself. The display is an Optrex part number
F-51852GNFQJ-LB-AIN (blue pixels) or F-51852GNFQJ-LB-CAN (green
pixels). The pinout of this interface connector is compatible with a variety
of displays.
1
The data signals are bussed with the 14-pin LCD header.
For the graphics LCD data sheet and related documentation, visit
www.optrex.com.
Table 2–39 lists the graphics LCD pin names, descriptions, and type.
Signal names and directions are relative to the Cyclone III FPGA.
Description
Reference Manual
I/O Schematic
Standard Signal Name
2.5 V
LCD_DATA0
2.5 V
LCD_DATA1
2.5 V
LCD_DATA2
2.5 V
LCD_DATA3
2.5 V
LCD_DATA4
2.5 V
LCD_DATA5
2.5 V
LCD_DATA6
2.5 V
LCD_DATA7
2.5 V
LCD_BS1
2.5 V
LCD_CSn
2.5 V
LCD_D_Cn
2.5 V
LCD_E_RDn
2.5 V
LCD_RSTn
2.5 V
LCD_SERn
2.5 V
LCD_WEn
Cyclone III Development Board
Board Components
Cyclone III Device
Pin Number
AA4
AD1
V8
AB5
AE2
V5
V6
AB3
Note (1)
AB24
D27
V7
H7
Note (1)
AC4
