General User Interfaces

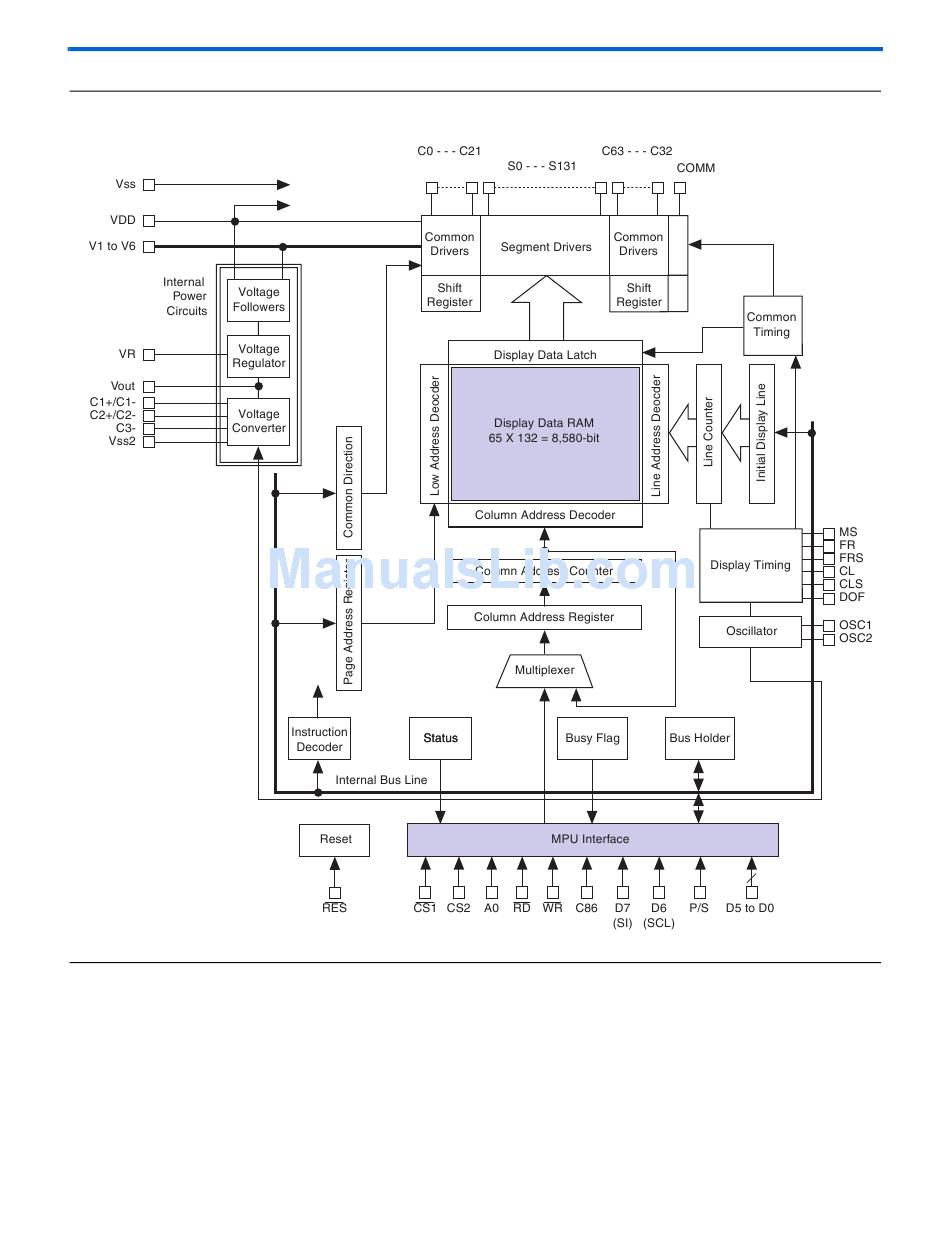

Figure 2–9. Graphics LCD Functional Block Diagram of Display Driver
2–44
Cyclone III Development Board
Figure 2–10
is an excerpt from the Optrex data sheet and shows the
module interface signals for both read and write transactions.
