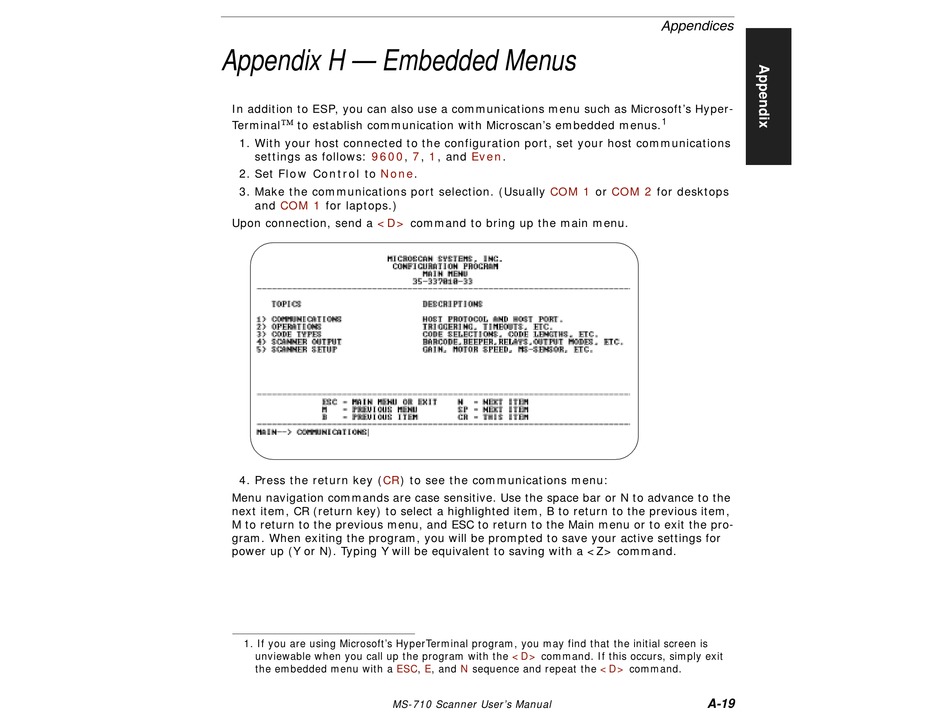

Appendix H — Embedded Menus
In addition to ESP, you can also use a communications menu such as Microsoft's Hyper-

Terminal to establish communication with Microscan's embedded menus.
1. With your host connected to the configuration port, set your host communications
settings as follows: 9600, 7, 1, and Even.
2. Set Flow Control to None.
3. Make the communications port selection. (Usually
and COM 1 for laptops.)
Upon connection, send a <D>
4. Press the return key (CR) to see the communications menu:
Menu navigation commands are case sensitive. Use the space bar or N to advance to the
next item, CR (return key) to select a highlighted item, B to return to the previous item,
M to return to the previous menu, and ESC to return to the Main menu or to exit the pro-
gram. When exiting the program, you will be prompted to save your active settings for
power up (Y or N). Typing Y will be equivalent to saving with a <Z> command.
1. If you are using Microsoft's HyperTerminal program, you may find that the initial screen is
unviewable when you call up the program with the
the embedded menu with a ESC, E, and
MS-710 Scanner User's Manual
COM 1
command to bring up the main menu.
<D> command. If this occurs, simply exit
N sequence and repeat the
Appendices
1
or COM 2 for desktops
<D> command.
A-19
