Step 2 — Connect the System
(Refer to figure 1-1.)
1. Connect the scanner to the 15-pin connector of the IB-105 interface box, using
the attached 3-foot cable custom cable or Microscan's P/N 61-130019-03.
MODE
POWER
SWITCH

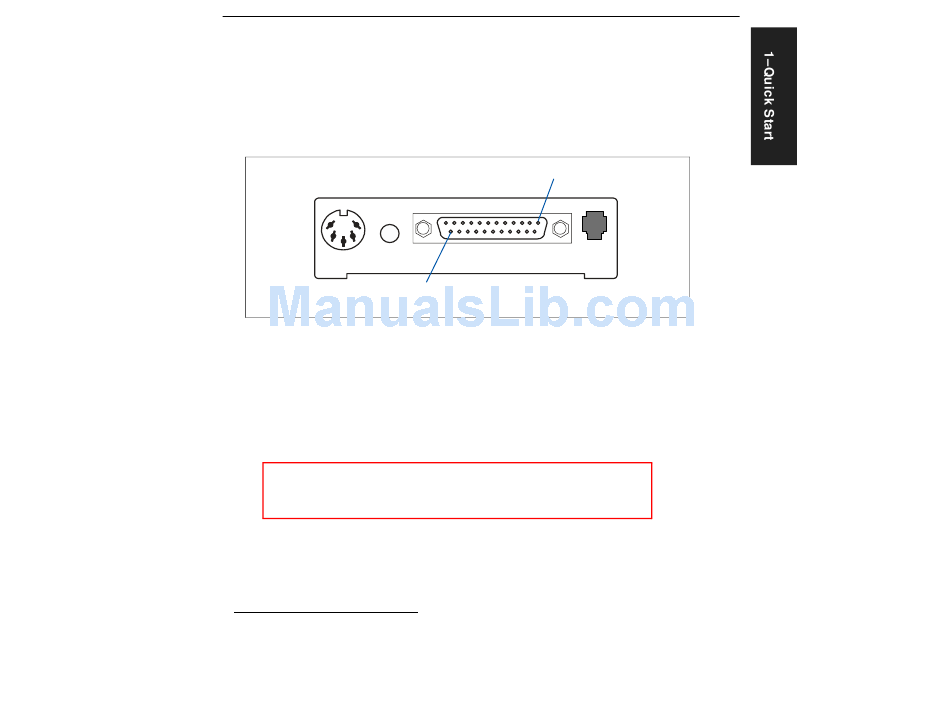

Figure 1-2 IB-105 showing Host 25-pin Connector

2. Connect the IB-105's "RS-232" 25-pin connector to the host computer.
(Refer to tables in "IB-105 Connectors and Pinouts" on page A-10
connections.)
3. Connect the power supply to the IB-105's POWER connector.
4. Connect power to the system.
Caution:
1. Be sure all cables are connected BEFORE applying power.
2. Always power down BEFORE disconnecting any cables.
1. Since +5 VDC power supply is included in the single cabling assembly, the scanner cable should
not exceed 3 feet. RS-232 cabling from the 15-pin connector to the host can be up to 47 feet
provided it does not include 5 VDC input
2. If using your own null modem RS-232 host cable, be certain that the host's TxD connects to the
scanner's RxD and the scanner's TxD connects to the host's RxD.
MS-710 Scanner User's Manual
1
RS-232
RS-485/422
25
Chapter 1 Quick Start
1
2
for pin
1-3
