ADAP-KOOL Drive AKD 102 High Power

4.1.16 Control Cable Routing

Tie down all control wires to the designated control cable routing as shown in the picture. Remember to connect the shields in a proper way to ensure
optimum electrical immunity.
Fieldbus connection
Connections are made to the relevant options on the control card. For details see the relevant fieldbus instruction. The cable must be placed to the left
inside the frequency converter and tied down together with other control wires (see picture).

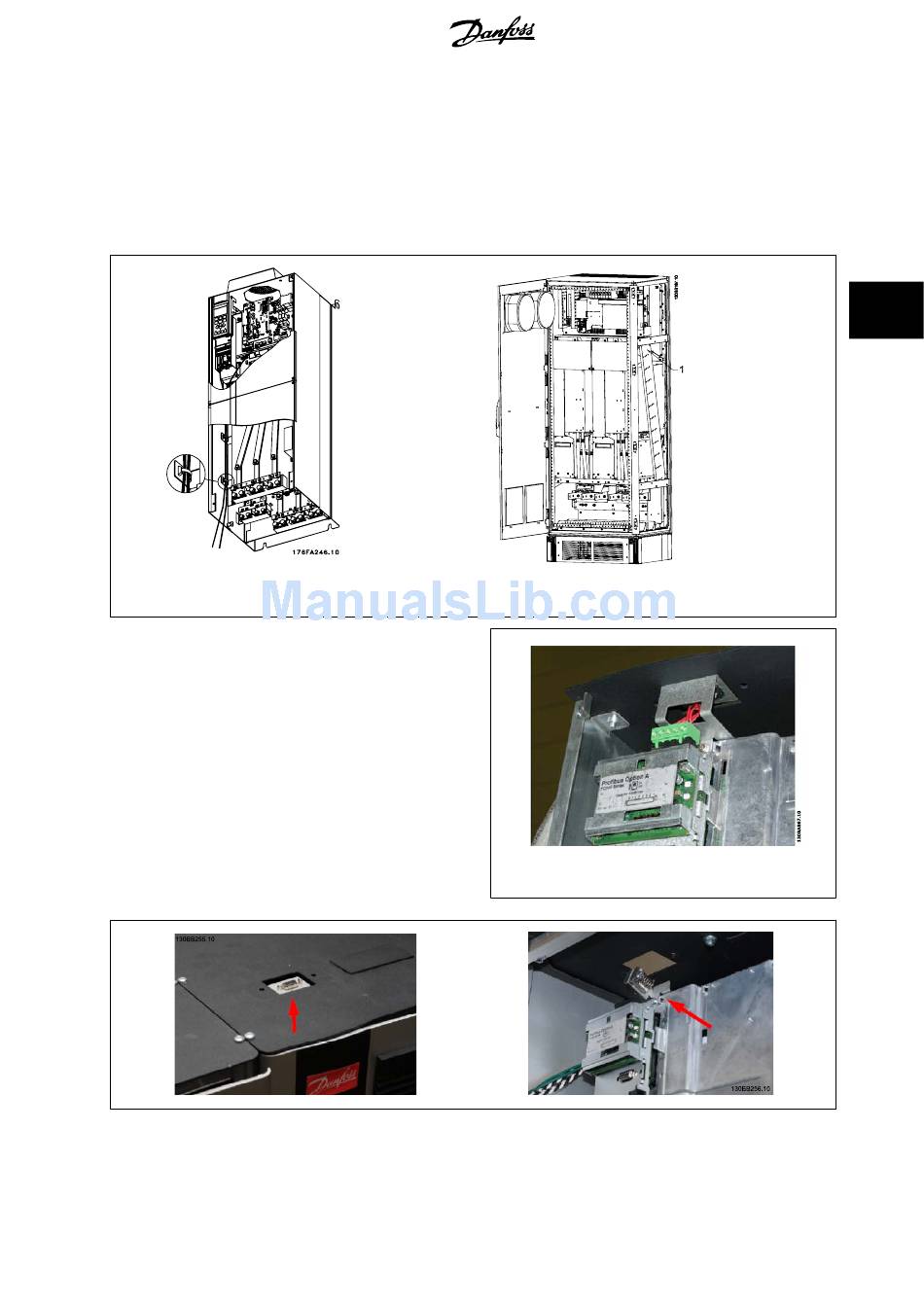

Control card wiring path for the D3. Control card wiring for the D1, D2
and D4 use the same path.
In the Chassis (IP00) and NEMA 1 units it is also possible to connect the
fieldbus from the top of the unit as shown on the picture to the right. On
the NEMA 1 unit a cover plate must be removed.
Kit number for fieldbus top connection: 176F1742
Control card wiring path for the F1/F3. Control card wiring for the F2/F4
use the same path.
MG.11.O1.02 - ADAP-KOOL ® is a registered Danfoss trademark
Illustration 4.9: Top connection for fieldbus.
