ADAP-KOOL Drive AKD 102 High Power
1) AUX Relay
01 02 03
04 05 06
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Load sharing
-DC +DC
88 89

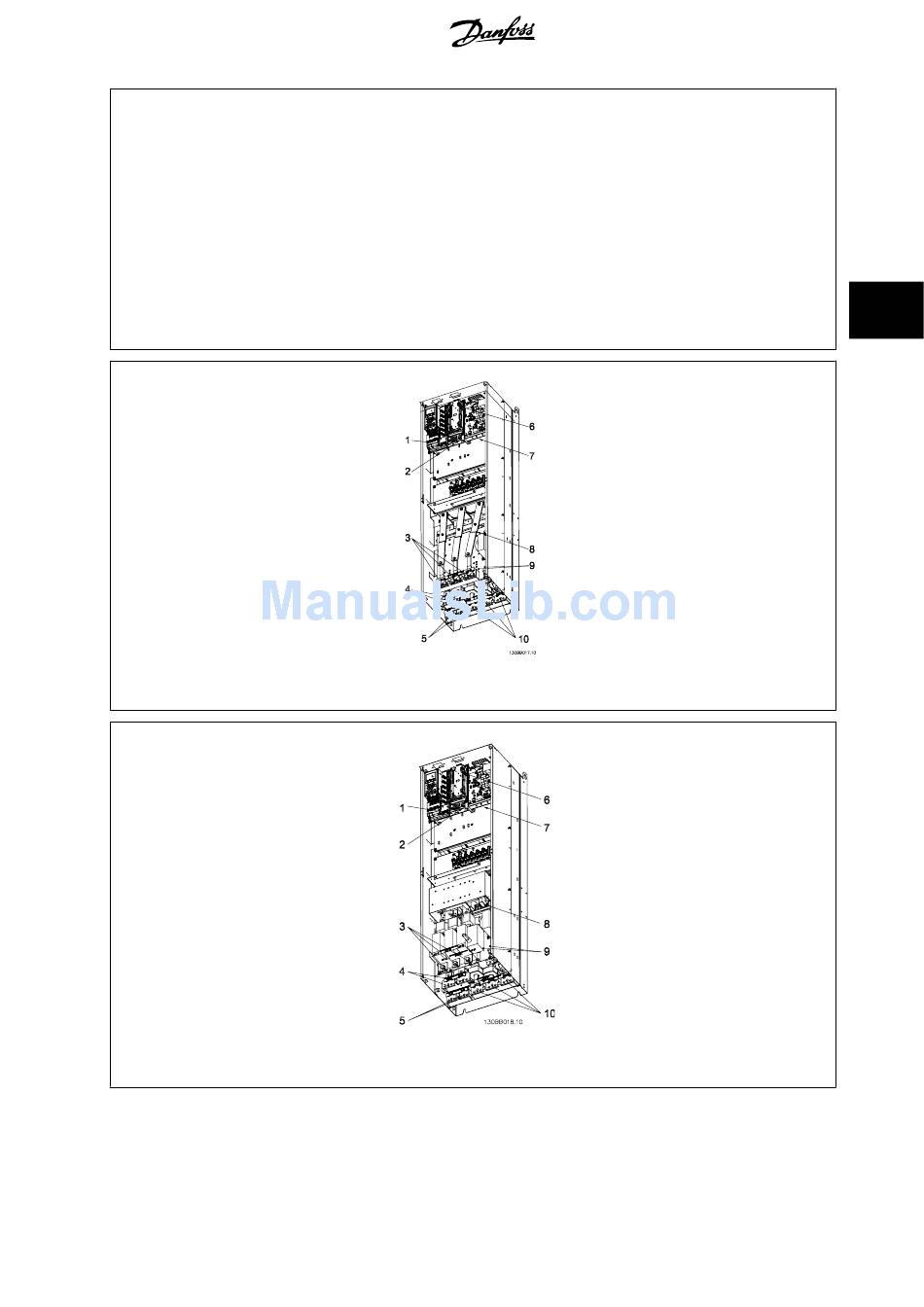

Illustration 4.3: Compact IP 00 (Chassis), frame size D3
Illustration 4.4: Compact IP 00 (Chassis) with disconnect, fuse and RFI filter, frame size D4
5) Brake
-R
81
6) SMPS Fuse (see fuse tables for part number)
7) AUX Fan
100
L1
8) Fan Fuse (see fuse tables for part number)
9) Mains ground
10) Motor
U
96
T1
MG.11.O1.02 - ADAP-KOOL ® is a registered Danfoss trademark
4 Electrical Installation
+R
82
101 102 103
L2 L1 L2
V W
97 98
T2 T3
4
