4 Electrical Installation
1) AUX Relay
01 02
04 05
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Load sharing
4
-DC +DC
88 89

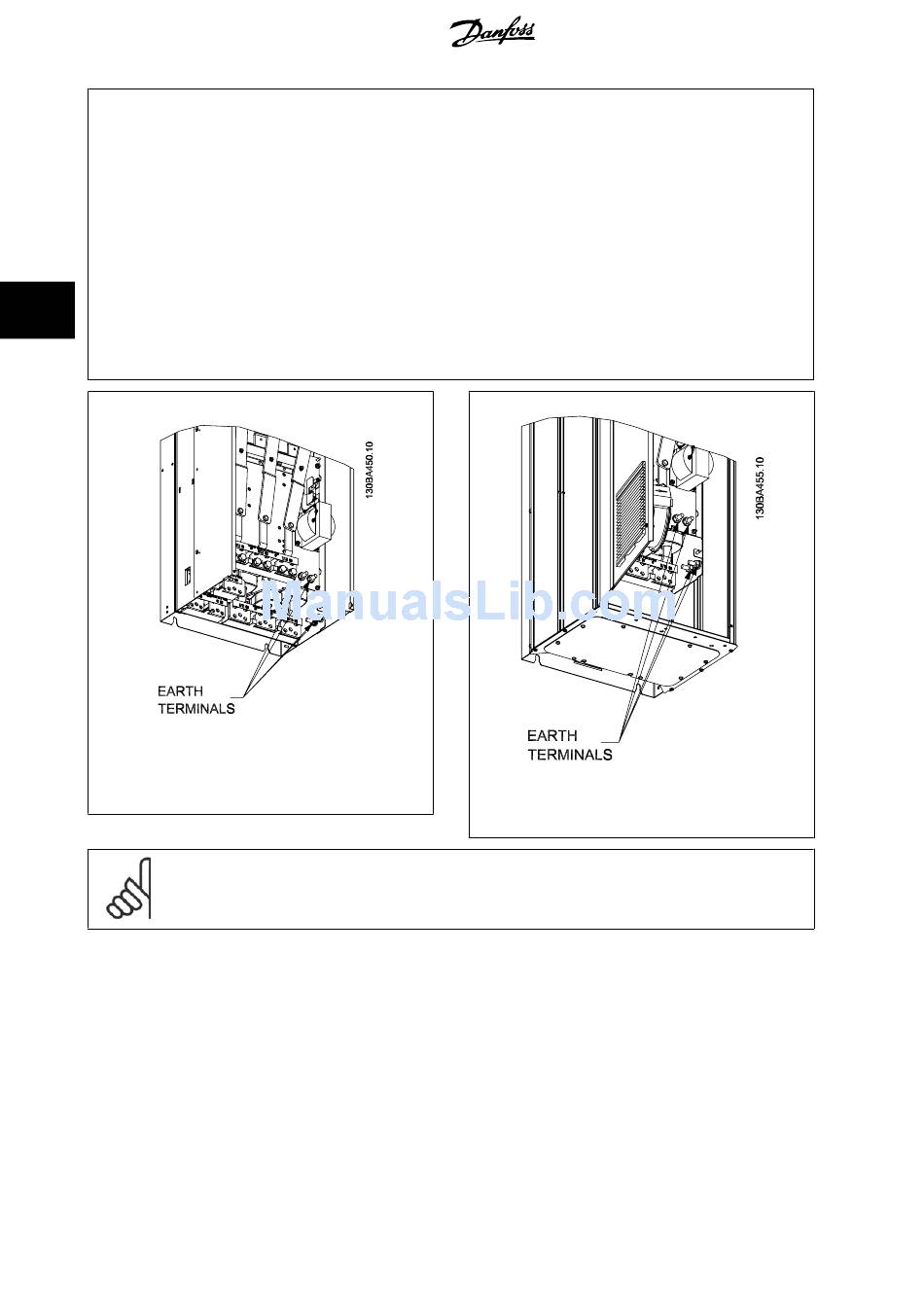

Illustration 4.5: Position of earth terminals IP00, frame sizes
D
NB!
D2 and D4 shown as examples. D1 and D3 are equivalent.
36
03
06
MG.11.O1.02 - ADAP-KOOL
ADAP-KOOL
5) Brake
-R +R
81 82
6) SMPS Fuse (see fuse tables for part number)
7) AUX Fan
100 101 102 103
L1 L2 L1 L2
8) Fan Fuse (see fuse tables for part number)
9) Mains ground
10) Motor
U V W
96 97 98
T1 T2 T3
Illustration 4.6: Position of earth terminals IP21 (NEMA type
1) and IP54 (NEMA type 12)
