ADAP-KOOL Drive AKD 102 High Power
6.1.5 Parameter Selection
In the Main Menu mode, the parameters are divided into groups. Select
a parameter group by means of the navigation keys.
The following parameter groups are accessible:
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name as well as the selected parameter value.
6.1.6 Changing data
1. Press [Quick Menu] or [Main Menu] key.
▲ ▼
2.
Use [ ] and [ ] keys keys to find parameter group to edit.
3. Press [OK] key.
▲ ▼
4.
Use [ ] and [ ] keys to find parameter to edit.
5. Press [OK] key.
▲ ▼
6.
Use [ ] and [ ] keys to select correct parameter setting. Or, to move to digits within a number, use keys. Cursor indicates digit selected to
▲
change. [ ] key increases the value, [
7. Press [Cancel] key to disregard change, or press [OK] key to accept change and enter new setting.
6.1.7 Changing a text value
If the selected parameter is a text value, change the text value by means
of the up/down navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value to be saved and press [OK].
Group no.
0
1
2
3
4
5
6
8
11
13
14
15
16
18
20
21
22
23
25
26
28
* Only when MCA 107 AKLon is installed
**Only when MCB 109 is installed
Table 6.3: Parameter groups.
▼
] key decreases the value.
MG.11.O1.02 - ADAP-KOOL ® is a registered Danfoss trademark
6 How to Programme the Frequency Converter
Parameter group:
Operation/Display
Load/Motor
Brakes
References/Ramps
Limits/Warnings
Digital In/Out
Analog In/Out
Comm. and Options
AKD Lon*
Smart Logic
Special Functions
Drive Information
Data Readouts
Info & Readouts
Internal Control
Extended PID
Application Functions
Time-based Functions
Pack Controller

Analog I/O Option MCB 109**

Compressor functions

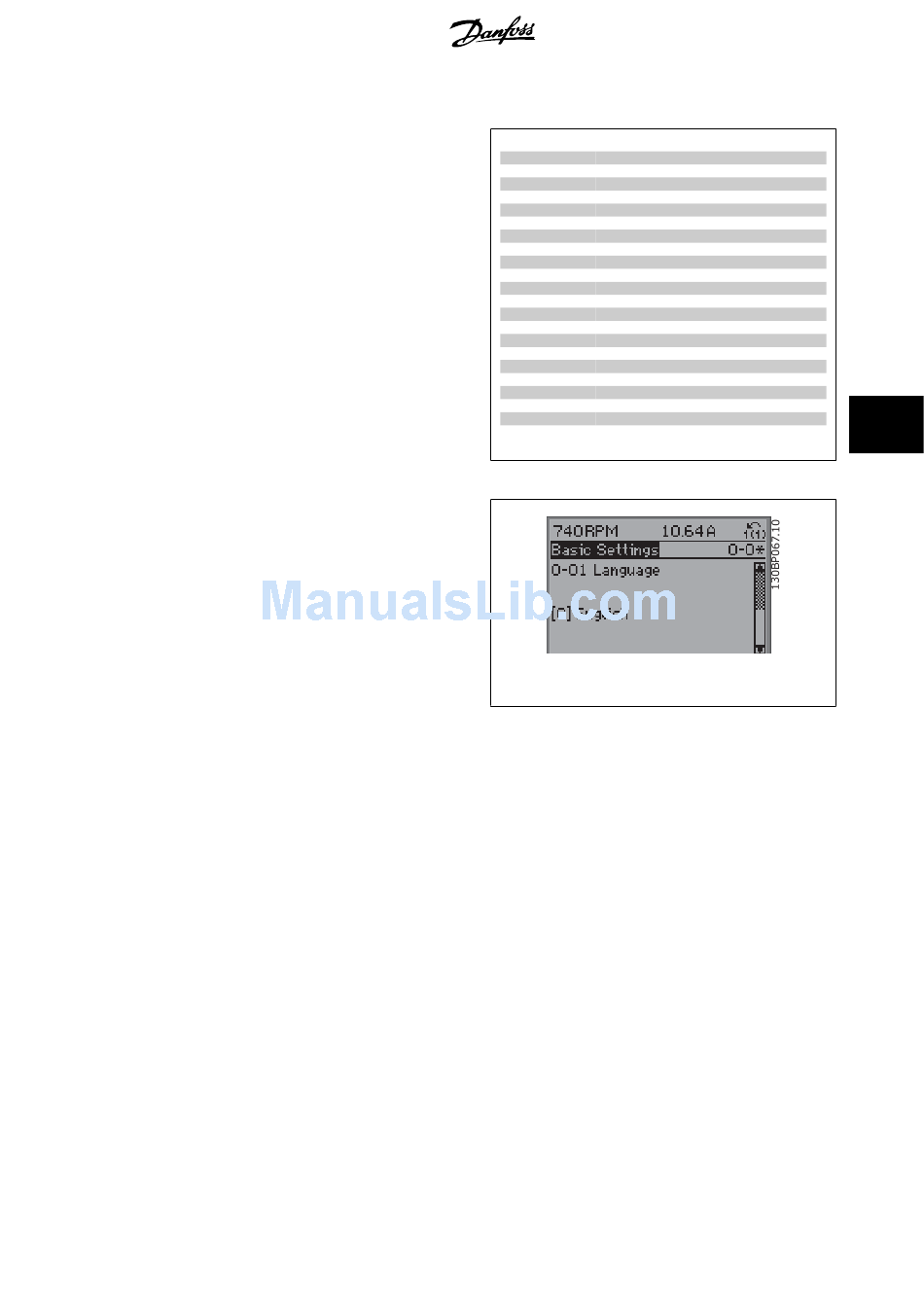

Illustration 6.10: Display example.
6
95
