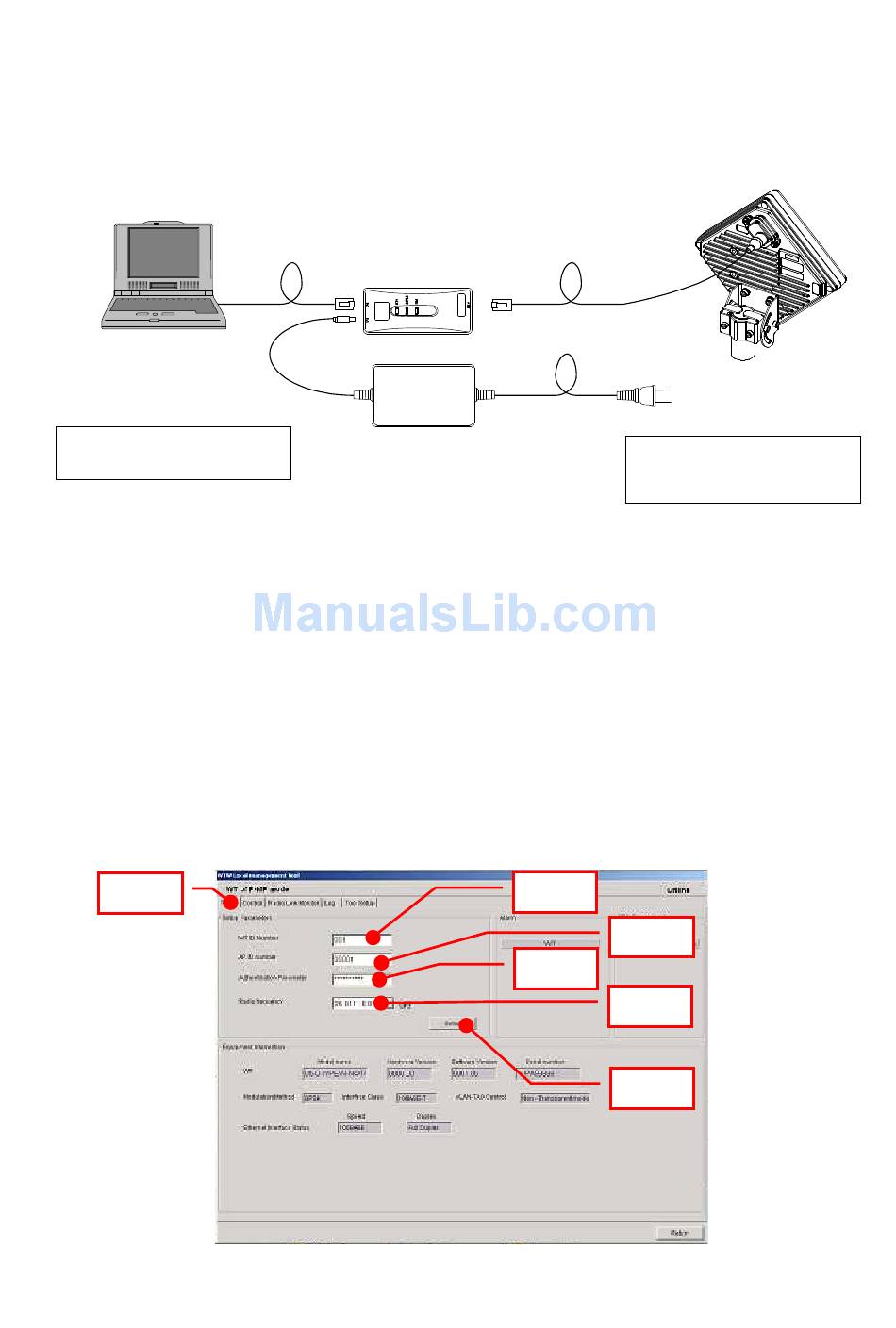

6.3. Connecting the WT Local Management Tool
Connect the WT local management tool terminal to the PC port of the WT adapter (Figure 6-2)
using a straight Ethernet cable.
local management tool（PC）
IP address: 192.168.1.200
Subnet mask: 255.255.255.0
6.4. WT Local management tool
6.4.1. Configure the WT
Use the WT Local Management Tool to specify the Setup Parameters.
Step 1: Select the Setup tab.
Step 2: Set the WT ID number.
Step 3: Set the AP ID number.
Step 4: Set the authentication parameter.
Step 5: Set the radio frequency.
Step 6: Click the Setup button.
Step 1
WT adapter
ＤＣ２４Ｖ
AC Adapter
Figure 6-2 Connection
Figure 6-3 Configure the WT
6-76
Ethernet cable (Straight)
AC100∼240Ｖ
initial values
IP address:192.168.1.100
Subnet mask:255.255.255.0
Step 2
Step 3
Step 4
Step 5
Step 6
