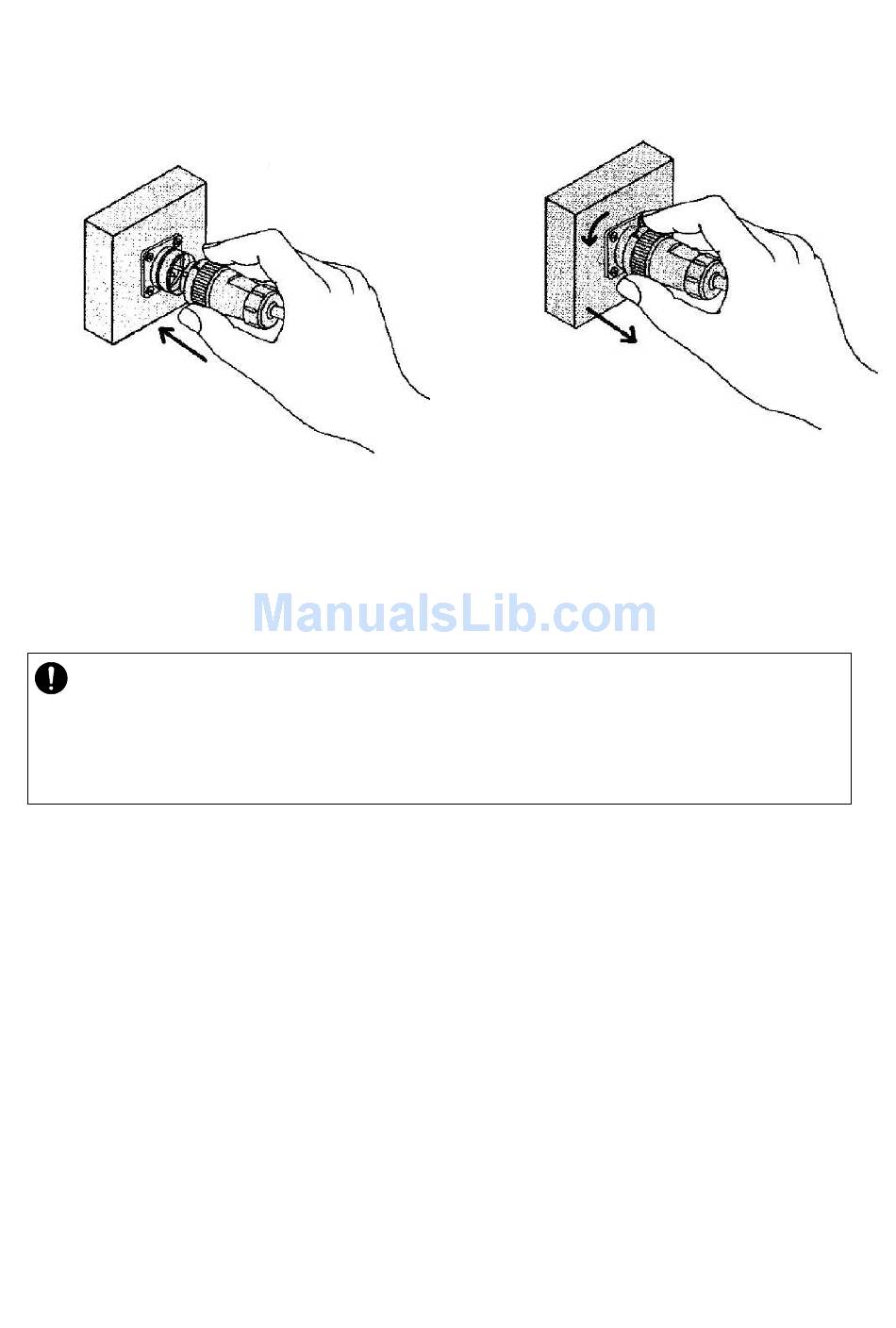

How to install and remove the power cable connector
To install:
Align the plug and receptacle guides,
and push in the connector straight.
・ Power cable terminal (g): The DC -48V power supply voltage for AP-IFU shall be SELV or
TNV-1 depending on the network environment (0 or 1) acc. to IEC62102.
・ Ethernet cable inlet (e):The Equipment for connection to AP-IFU Ethernet-interface
(RJ-45) shall be appropriate to connect to TNV-1 circuits.
To remove:
Turn the connector counterclockwise 45
degrees and pull it out straight.
3-35
