Connecting The Power Supply - Bosch ICP-MAP5000-2 Installation Manual

MAP 5000
Programmable voltage outputs (2)
4
Programmable dry relay outputs (3)
4
Voltage output AUX (4)
4
Supervised inputs (5)
4
Input for panel tamper switch (6)
4
3.4

Connecting the power supply

1.
2.
3.
4.
Mounting the thermistor
Bosch Sicherheitssysteme GmbH
Use these connections to control devices in certain system states (refer to Programmable
output signals, page 61).
Use these connections to control devices such as self-powered signaling devices in
certain system states (Programmable output signals, page 61).
Use this connection to supply voltage to devices in the panel. The voltage can be
switched on/off in certain system states.
Use these inputs to connect supervised conventional detectors or key switches RE = 12.1
KOhm (refer to Point types and point evaluation, page 60).
Use this input to connect the tamper switch of the panel (refer to Connecting the ICP-
MAP0050 tamper switch, page 52).

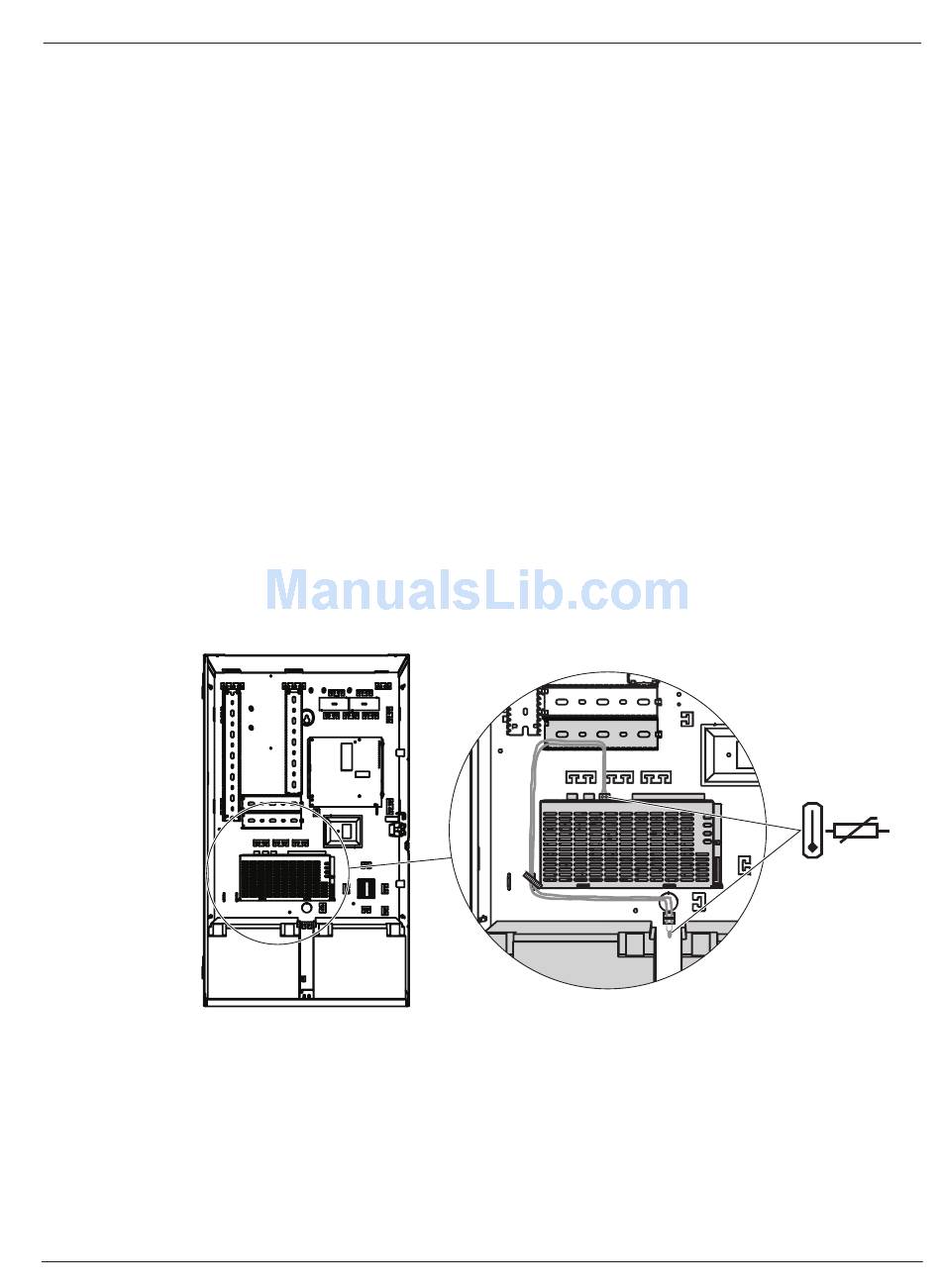

Connect the supplied thermistor cable (P/N F01U074759).
Mount the thermistor inside the enclosure.
Connect the AC terminal block to the power supply.
Connect the power supply to the main panel using the supplied four-pin connector cable
(P/N: F01U074769).
