Installing the hinged mounting plate
4
Installing the hinged mounting plate
Mounting modules onto the hinged mounting plate

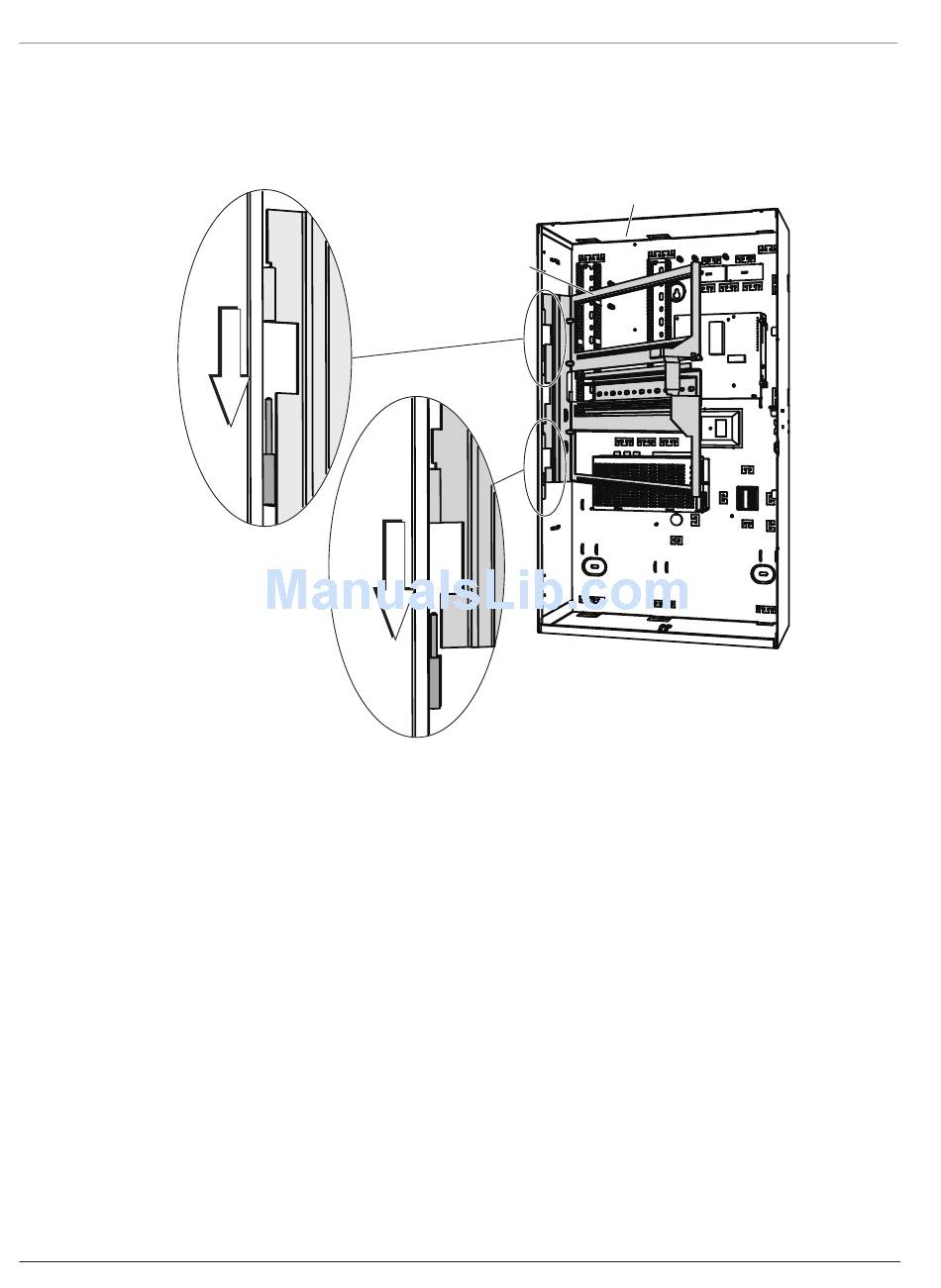

The following graphic shows an overview of the hinged mounting plate and the designated
mounting locations of the modules.
2016.06 | 17 | F.01U.168.332
Install the ICP-MAP0025 hinged mounting plate inside the enclosure ICP-MAP0111 or ICP-
MAP0120.
ICP-MAP0025
Installation manual
ICP-MAP0111
Bosch Sicherheitssysteme GmbH
MAP 5000
