MAP 5000

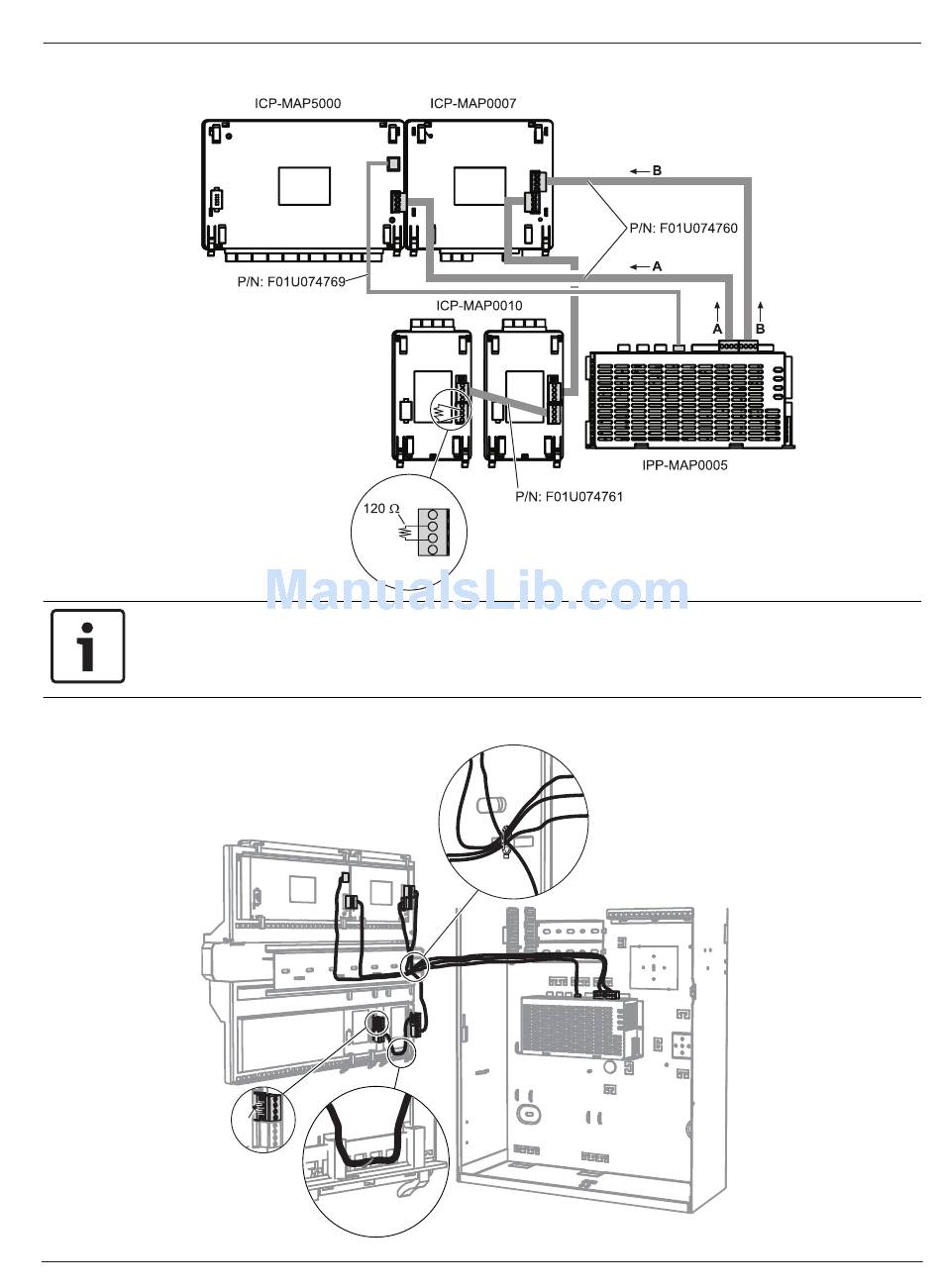

Data bus connections of the system modules on the internal BDB

Notice!

The order of system modules on the BDB shown in the figure is not mandatory. A symmetrical

load distribution to the power supply outputs A and B must be ensured as far as possible.

Data bus cable routing

Bosch Sicherheitssysteme GmbH

120 Ω

Installation manual

Connections | en

2016.06 | 17 | F.01U.168.332
