MAP 5000
System installation in ICP-MAP0120 expansion enclosure

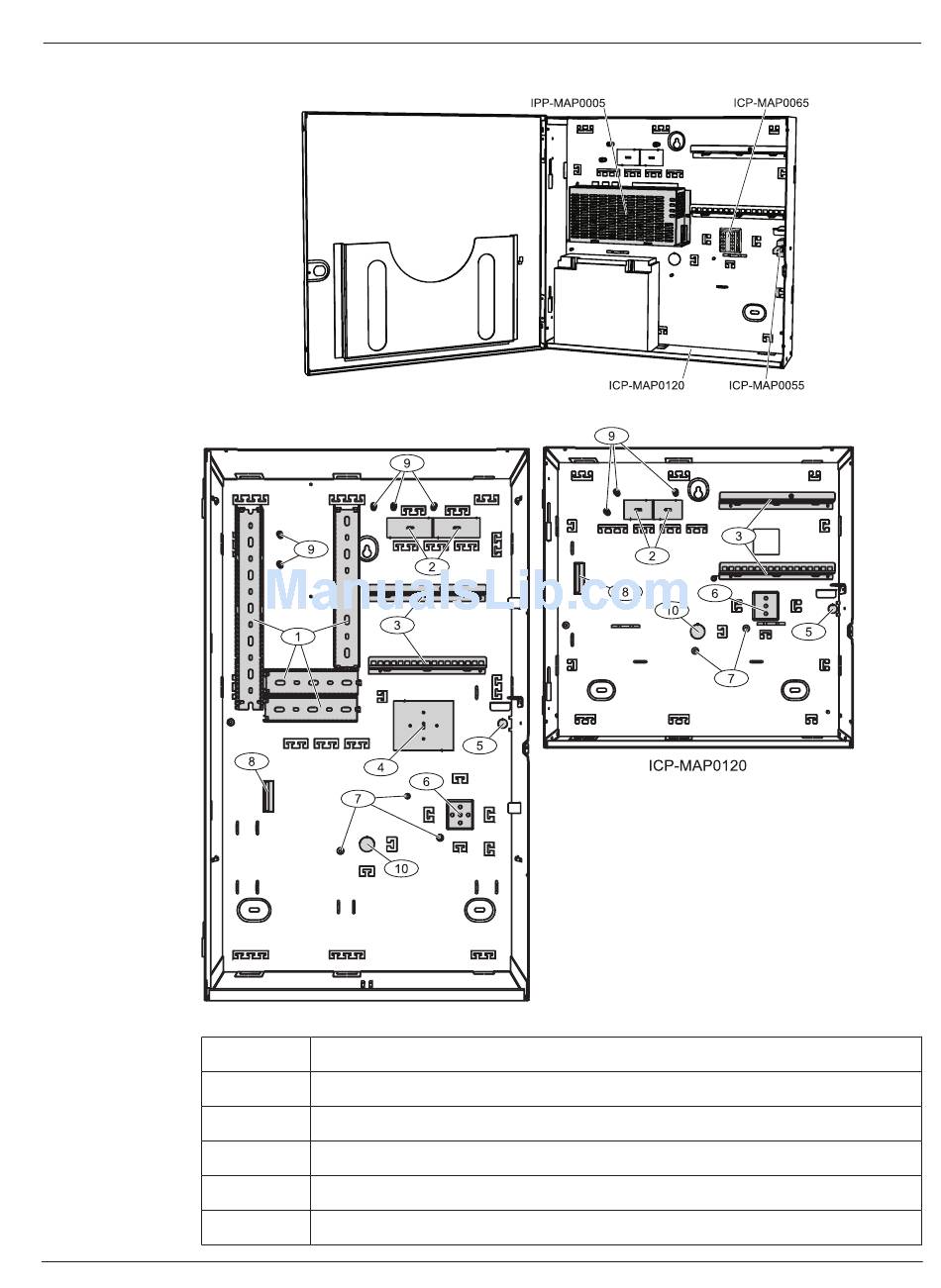

Enclosure overview
Element
1
2
3
4
5
Bosch Sicherheitssysteme GmbH
ICP-MAP0111
Description
Wire trays
Wire knockouts
Mounting rails for ICP-MAP0020 accessory mounting plate
Mounting location for TAE box
Knockout for wall tamper
Installation manual
Introduction | en
13
2016.06 | 17 | F.01U.168.332
