8
en | Introduction

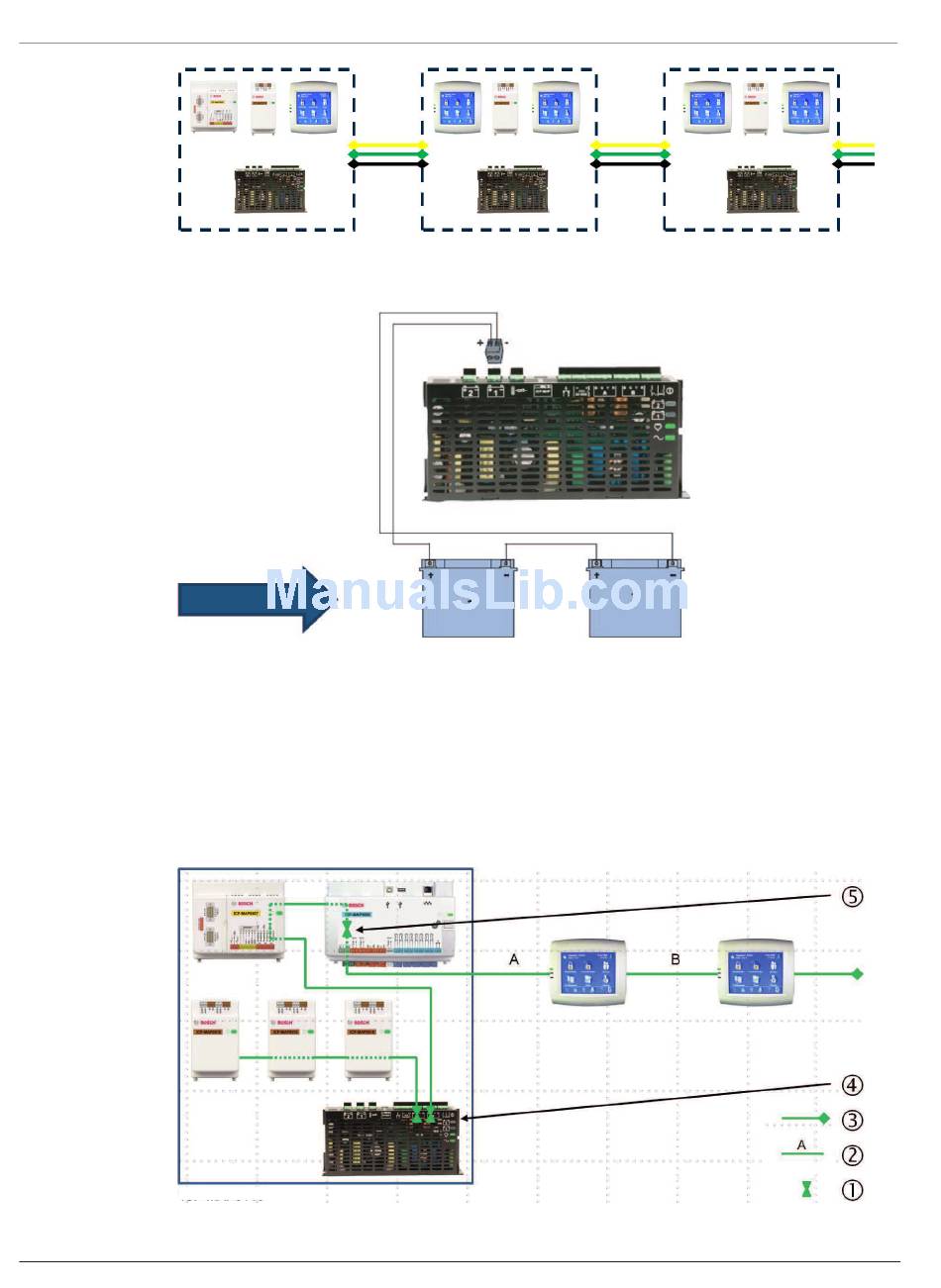

Figure 1.1: Wiring of power supply segments
Condition 2
Charged batteries must be connected to the power supply to ensure reliable system start-up.
Figure 1.2: Batteries for system booting
Condition 3
To ensure reliable system start-up, it is necessary to take into account the cable length and
wire gauge:
–
–
Refer to , page 10.
Typical configuration with ICP-MAP0111 panel enclosure
Main panel - DE module - 3 LSN gateway modules - max. 2 control centers
ICP-MAP0111
Figure 1.3: Wiring with ICP-MAP0111
2016.06 | 17 | F.01U.168.332
between power supply and first control center
between control centers
Installation manual
MAP 5000
Bosch Sicherheitssysteme GmbH
